Z-brackets

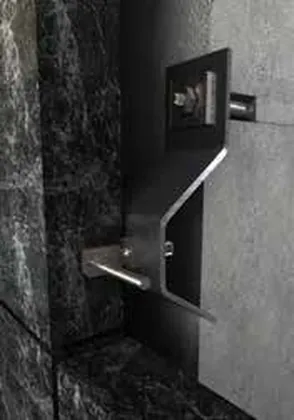

Z-bracket with returned leg (ST-600-1100)
Standard or serrated Z-bracket with returned leg and flat head bolt, adjustable in two directions, for horizontal or vertical joints.
- Material
- SS304, SS316, SS316L, SS316Ti, S235JR-MG, S235JR-HDG
- Sizes
- W 35–50 mm · offset 20–70 mm
- Thickness
- 3–5 mm
- Flat head bolt / pin
- M8–M12 · Ø 4–6 mm
- Load per bracket
- max dead load 0.16–0.45 kN · wind load ±0.21–0.66 kN
- Codes
- 600-1100-W.T.N
