Welded cable ladder runs

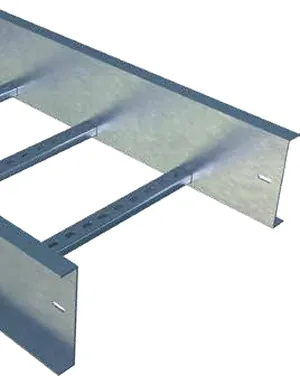

Welded C-channel cable ladder (SL)
Steel cable ladder with 41 × 21 mm C-channel rungs MIG-welded to the side rails, to NEMA VE 1.
- Material
- Steel S235 JRG2 · rungs C-channel 41 × 21 mm, plain or slotted
- Side rails
- S1–S6 · side height 110/138/162 mm · load depth 75–125 mm
- Thickness
- 2.0 / 2.5 mm
- Sizes
- W 150–900 mm (S3, S5 up to 750 mm)
- Load
- NEMA classes 12A, 12B, 12C, 16A, D; load/deflection tables
- Codes
- SL-S1 to SL-S6
