Outdoor pedestals

Heads

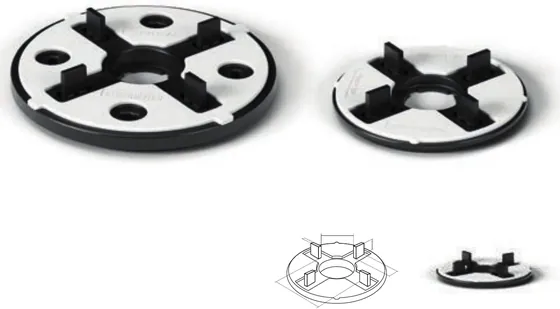

Self-levelling head for PR and SE supports

Two-component PP and rubber tilting head that automatically compensates slopes up to 5%, with head-to-screw coupling preventing detachment.

Material: PP + anti-noise, anti-slip rubber
Sizes: Standard Ø 110 mm · XL Ø 150 mm
Tabs: 4 mm thick, H 12 mm (2 or 3 mm on request)
Slope: Up to 5%
Codes: E035101204 · E035201204 (XL)

Catalogue p. 24

Heads

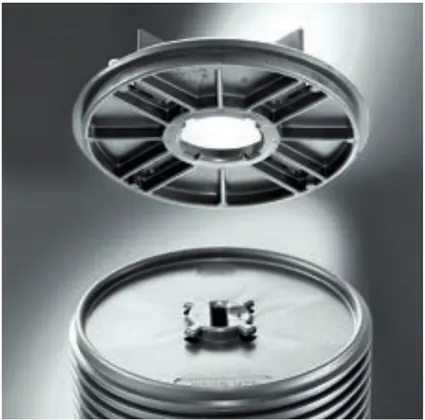

Fixed head for NM supports

Two-component PP and rubber fixed head for New Maxi supports, with a head-to-screw coupling that keeps the head in its seat.

Material: PP + rubber
Sizes: Ø 110 mm · XL Ø 150 mm
Tabs: 4 mm thick, H 12 mm
Codes: E035011204 · E035061204 (XL)

Catalogue p. 24

Heads

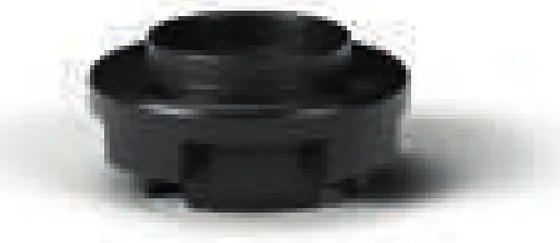

Tilting head locking system

Insert that locks the tilting head of PR and SE supports, turning a self-levelling support into a fixed one; fits standard and XL heads.

Compatibility: PR and SE supports, standard or XL head
Size: Ø 38.5 mm, H 18 mm
Code: E036000100

Catalogue p. 24

Heads

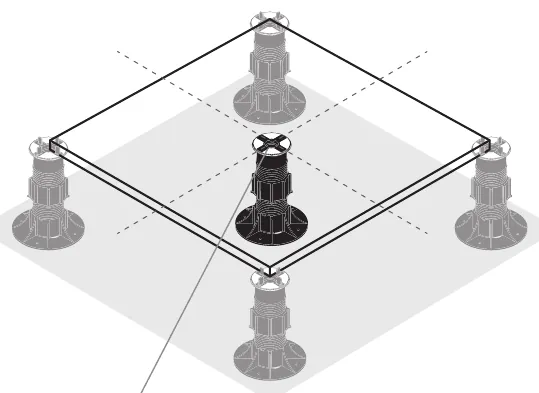

Head for central support

Support placed at the centre of a slab to give the floor greater load capacity, adjusted by turning the base while holding the head.

Use: Slab centre, wall corner, along the wall or mid-floor
Adjustment: By rotating the base, no key needed

Catalogue p. 28

Adjustable supports

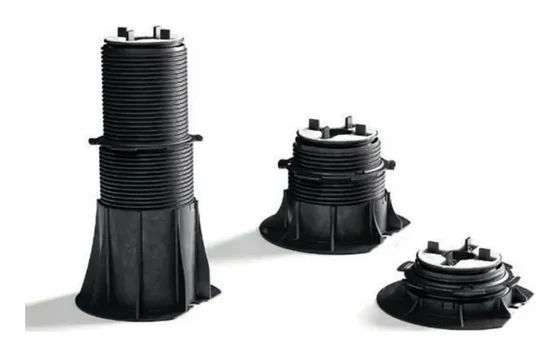

PR Prime® support

Pre-assembled adjustable pedestal with integrated extension and self-levelling Ø 110 mm head, covering 30–420 mm with three sizes.

Height: PR1 30–65 · PR2 65–155 · PR3 155–420 mm
Base: 300 cm² solid base with clip slots
Head: Self-levelling Ø 110 mm, slopes up to 5% (XL Ø 150 on request)
Codes: E500030065 · E500060155 · E500150420

Catalogue p. 40

Adjustable supports

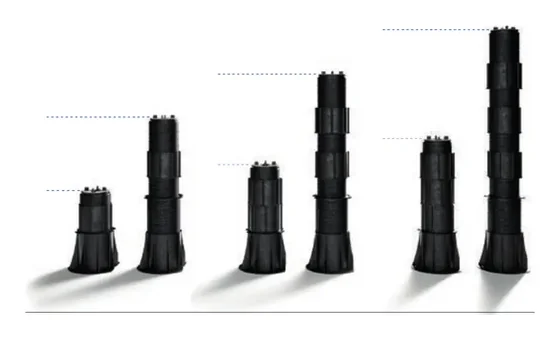

PR extension for great heights

Extension fitted between the integrated extension and screw of PR3, with safety locks, for heights above 420 mm.

Heights: 595, 770 and 945 mm with one, two or three extensions
Compatibility: PR3 only
Code: E501000190

Catalogue p. 44

Adjustable supports

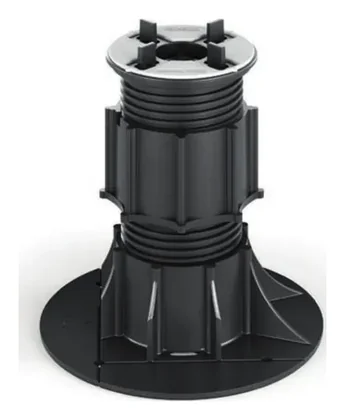

SE Eterno support

Adjustable pedestal with self-levelling tilting head compensating slopes up to 5%, adjustable from above with the key after laying.

Height: 28–550 mm (SE0–SE14, with P1 extensions)
Base: 320 cm² easy-break base
Temperature: −40 °C to +80 °C
Codes: E240028038–E240365550 · P1 extension E130125000

Catalogue p. 48

Adjustable supports

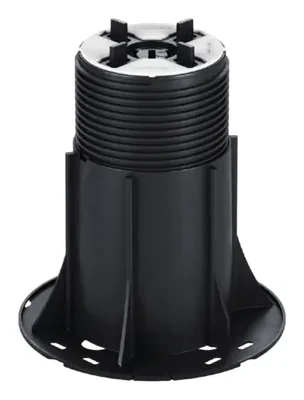

NM New Maxi support

Adjustable pedestal with fixed anti-noise rubber head and easy-break base; slopes are corrected with Twist slope compensators.

Height: 25–270 mm (NM1–NM5); up to 700 mm with PNM extensions
Base: 320 cm² easy-break base
Head: Ø 110 mm, 4 mm tabs H 12 mm
Codes: E014025047–E014150277 · PNM E044000145

Catalogue p. 54

Adjustable supports

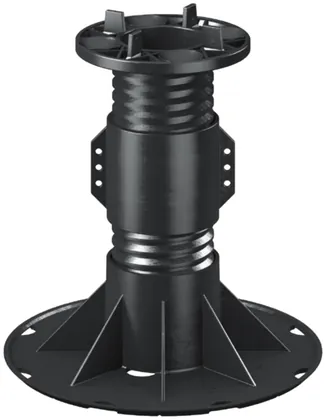

SB Basic support

The simplest adjustable pedestal of the line, adjusted by turning the base, with a smooth 320 cm² base and water drainage.

Height: 27–120 mm (SB1–SB4); up to 300 mm with PSB extensions (SB5–SB8)
Base: 320 cm² smooth base
Slope: Twist TW 110 compensator
Codes: E015427035–E015481929 · PSB E044000625

Catalogue p. 60

Adjustable supports

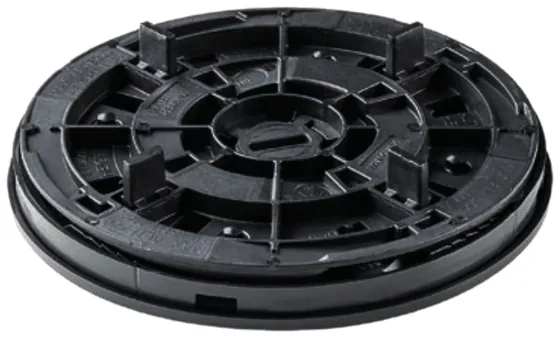

Star.T support

Ultra-low adjustable support for renovations, 8 mm fixed top and 10–15 mm adjustment, raised in 5 mm steps with Star.T extensions.

Height: 10–15 mm; up to 30 mm with extensions
Extension: 5 mm, stackable
Slope: Twist TW 150 compensator
Codes: E003541115 · extension E003100025

Catalogue p. 66

Fixed height supports

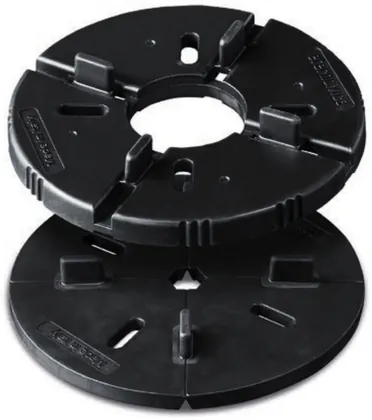

EH Rubber 10+6 support

Fixed-height support in recyclable SBS rubber with sound-absorbing properties, usable whole, halved or in quarters.

Material: Recyclable SBS rubber
Height: 10 mm or 6 mm, Ø 120 mm
Tabs: 4 mm thick, H 10 mm (2–3 mm on request)
Codes: E000010004 · E000006004

Catalogue p. 76

Fixed height supports

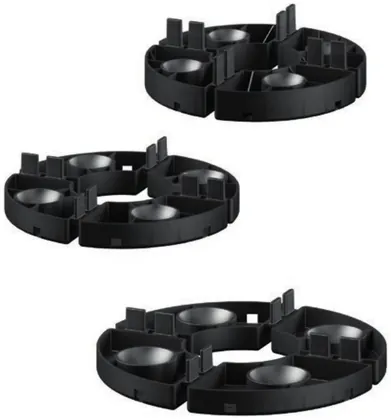

EH 12 | 15 | 20 fixed height support

Stackable fixed-height supports, the quickest and most economical way to lay slabs on a raised system.

Height: 12, 15 or 20 mm (max. 3 stacked)
Tabs: 3 mm (EH12, EH15), 4 mm (EH20)
Variant: EH12 with 8 mm tabs for 20 mm self-supporting slabs
Codes: E008012008 · E000012003 · E000015000 · E002020000

Catalogue p. 80

Fixed height supports

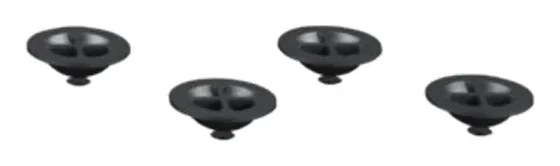

Tilting balancer

Tilting insert for EH fixed supports that automatically levels small substrate imperfections, adding 5 mm to the height.

Height: 5 mm
Compatibility: EH fixed height supports
Code: E050005000

Catalogue p. 23

Fixed height supports

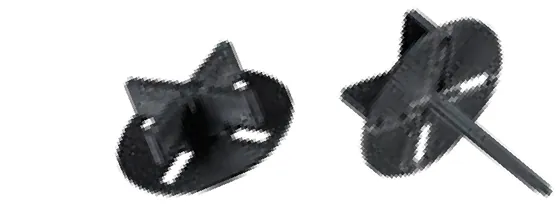

DM mini spacer for sand, grass and gravel

Small spacer for positioning slabs on sand, grass or gravel, supplied with a ground spike for anchoring, or without one for gravel.

Height: 60.5 mm with spike · 15.5 mm without
Width: 50.3 mm
Tabs: 4 mm, H 12 mm (2–3 mm on request)
Codes: E004000205 · E004000215

Catalogue p. 84

Fixed height supports

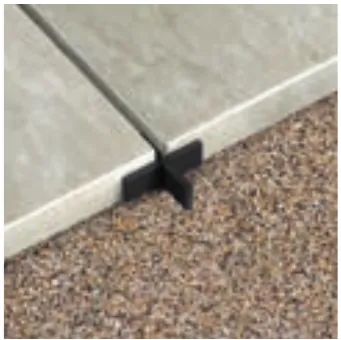

CR cross spacer for sand, grass and gravel

Polypropylene cross spacer, an alternative system for laying slabs on sand, grass or gravel.

Material: PP
Height: 15 or 20 mm
Tabs: 2, 3 or 4 mm
Codes: P021000052–P021000064

Catalogue p. 85

Special supports

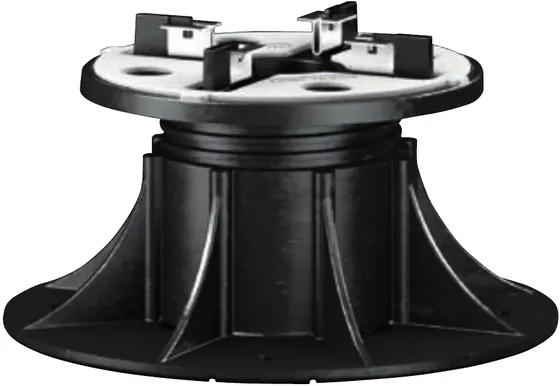

SE W Eterno windproof system

SE support with XLW windproof head and stainless steel clips locking milled slab corners to the supports against wind uplift.

Height: 30–552 mm (SE W0–SE W14)
Head: Self-levelling XLW Ø 150 mm, 4 mm tabs H 14 mm
Slope: Up to 5%
Codes: E440030040–E440367552 · XLW head E035211204

Catalogue p. 88

Special supports

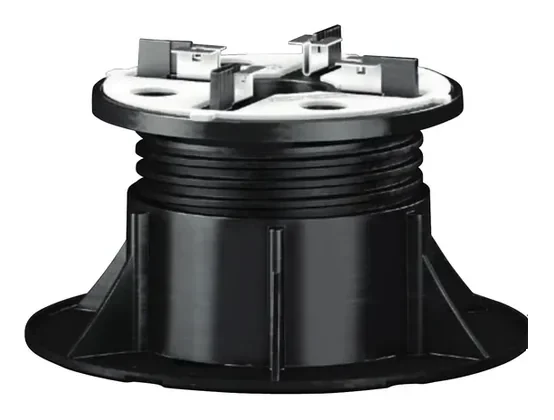

NM W New Maxi windproof system

NM support with fixed XLW windproof head accepting T or L stainless steel clips that hold slabs against wind suction.

Height: 30–275 mm (NM W1–NM W5)
Head: Fixed XLW Ø 150 mm, 4 mm tabs H 14 mm
Codes: E014030047–E014155277 · XLW head E035091204

Catalogue p. 90

Special supports

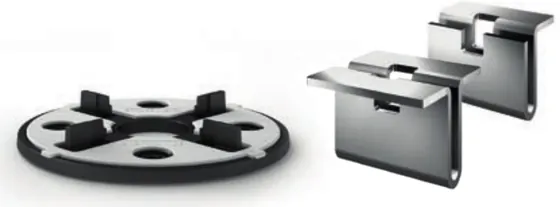

Windproof clips (T and L section)

Stainless steel clips inserted in the tabs of windproof heads to lock slabs milled at the four corners.

Material: Stainless steel
Types: T section · L section
Codes: Q200000310 · Q200000320

Catalogue p. 89

Special supports

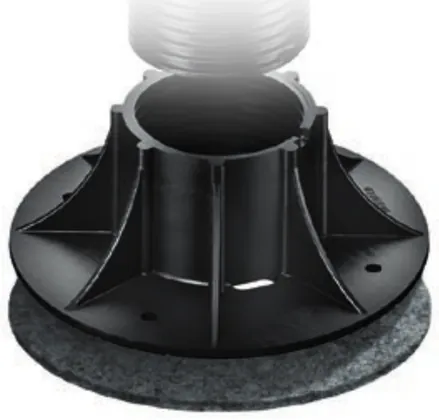

SE S Eterno Silent support

Self-levelling SE support with PP + rubber head and 3 mm closed-cell foam under the base, reducing impact noise by over 25 dB.

Height: 31–553 mm (SES0–SES14)
Acoustic: ΔLw up to 25 dB (head), over 25 dB (base)
Base layer: 3 mm high-density closed-cell foam
Codes: E350031041–E350368553

Catalogue p. 94

Special supports

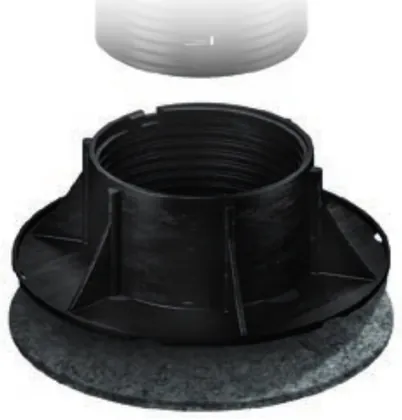

NM S New Maxi Silent support

New Maxi support with fixed bi-component head and 3 mm closed-cell foam layer under the base for impact-noise reduction.

Height: 28–273 mm (NMS1–NMS5)
Acoustic: Noise reduction over 25 dB
Base layer: 3 mm high-density closed-cell foam
Codes: E017028044–E017153274

Catalogue p. 96

Accessories

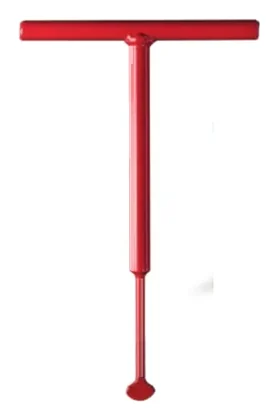

Adjustment key and screwdriver accessory

Reinforced key for adjusting PR, SE and NM supports from above on a finished floor, plus a steel screwdriver accessory for quick screwing.

Use: With standard 4 mm tabs only
Codes: E200250120 (key) · E200250130 (screwdriver accessory)

Catalogue p. 116

Accessories

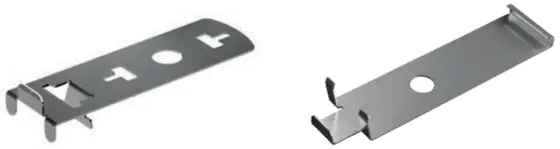

Vertical lining clip

Pair of stainless steel clips over the head and under the base that hold a cut slab to close the vertical edge or form steps.

Material: Stainless steel
Slab thickness: 20, 30, 40 mm
Compatibility: PR, SE, NM, SB; Ø 110/150 mm heads
Codes: P021000322–P021000460

Catalogue p. 118

Accessories

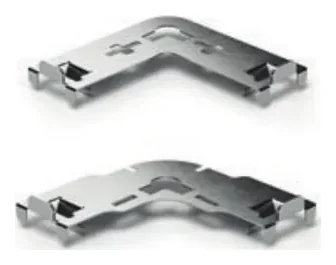

Vertical angular lining clip

Angled head and base clips for vertical corner infill, replacing two head and two base clips with one of each.

Material: Stainless steel
Slab thickness: 20 mm
Codes: P021000972 · P021000982 · P021000912 · P021000922

Catalogue p. 120

Accessories

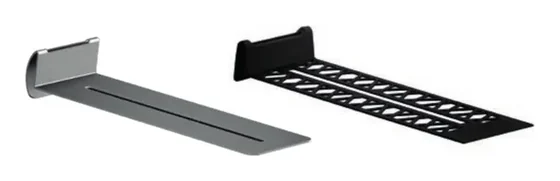

Perimeter spacer

Clip hooked onto the support head that keeps a 1 cm joint between the paving and perimeter walls without fixings through any waterproofing membrane turned up the wall.

Material: Stainless steel or PP
Joint: 10 ± 0.5 mm
Size: H 25.6 mm, L 161.6 mm
Codes: P021000220 · P021000230

Catalogue p. 122

Accessories

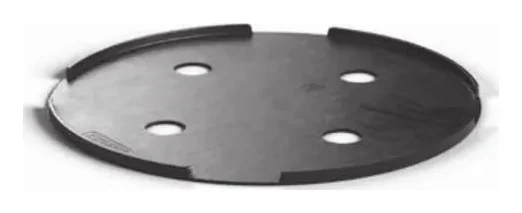

Supplementary rubber base

TPE rubber disc under the pedestal base that protects the waterproofing membrane and reduces impact-sound transmission.

Material: Thermoplastic rubber (TPE)
Size: Ø 215 mm, 2 mm thick
Code: E083000300

Catalogue p. 124

Accessories

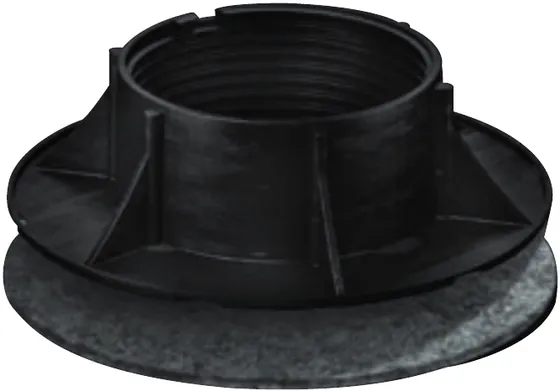

Scudo separating layer

3 mm high-density closed-cell foam layer under the support base that protects the membrane and reduces impact noise.

Material: High-density modified closed-cell foam
Size: Ø 205 mm, 3 mm
Versions: Adhesive · non-adhesive
Codes: E083000233 · E083000223

Catalogue p. 125

Accessories

Slab lifter

Stainless steel tool inserted in the joint and turned 90° to lift an already laid slab.

Material: Stainless steel
Joints: 2, 3 and 4 mm
Code: M030000100

Catalogue p. 126

Accessories

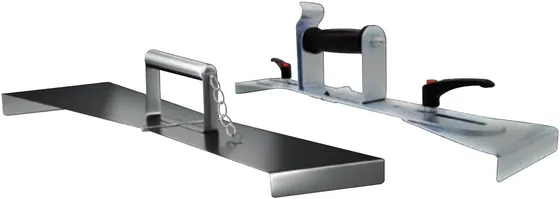

Slab lifting handle

Handle with two lateral hooks inserted in the joints for laying new slabs or lifting laid ones.

Sizes: Adjustable 380–620 mm · fixed 400, 500, 600 mm
Codes: M030004060 · M030400400 · M030500500 · M030600600

Catalogue p. 127

Accessories

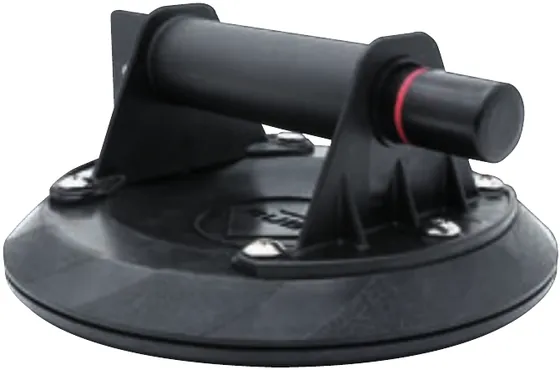

Suction cup slab lifter

Vacuum suction cup with 200 mm rubber pad and side seal for handling ceramic slabs on smooth or rough surfaces.

Size: Ø 200 mm
Capacity: Max. 110 kg
Code: M030100100

Catalogue p. 128

Accessories

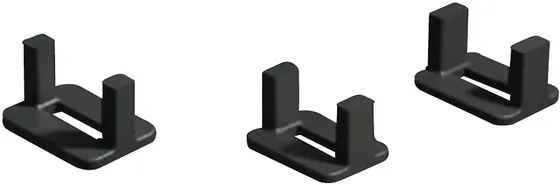

Tool to increase the thickness of the tabs

Cap pushed onto the 4 mm spacer tabs to widen the joint while keeping the 12 mm tab height.

Thickness: 5, 6, 7, 8, 9, 10 mm
Codes: E004000305–E004000310

Catalogue p. 129

Accessories

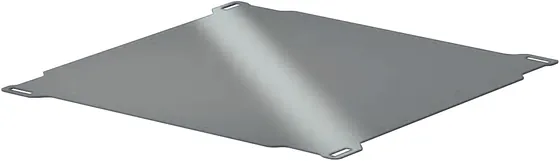

Safety plate

Shaped 2 mm galvanised steel plate over the support heads that holds the slab and a person if a slab breaks.

Material: Galvanised steel, 2 mm
Size: 600 × 600 × 2 mm (others on request)
Height added: 3 mm
Codes: P021100060 · LGH1 shim E082001000

Catalogue p. 130

Accessories

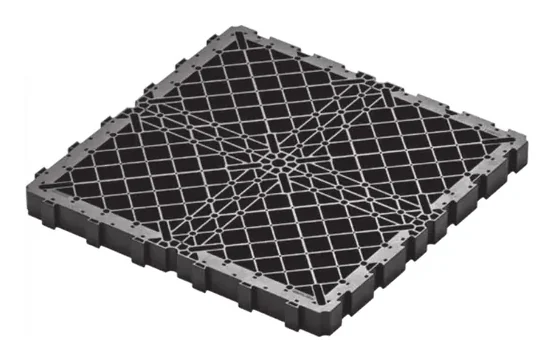

Safety grid and DLG spacer

Interlocking 50 × 50 cm polymer panel on adjustable supports forming a sub-floor for stoneware, marble, stone or synthetic grass.

Material: Black thermoplastic polymer (PP)
Size: 500 × 500 mm, H 40 mm
Use: Outdoor only
Codes: P021305050 · DLG spacer E004002004

Catalogue p. 132

Accessories

Slab edge profile

Edge profile with a 30 mm decorative face and tooth that hides the junction between the raised floor and a vertical covering.

Material: Stainless steel or aluminium
Length: 1.20 m
Codes: P021200020 · P021200120

Catalogue p. 134

Accessories

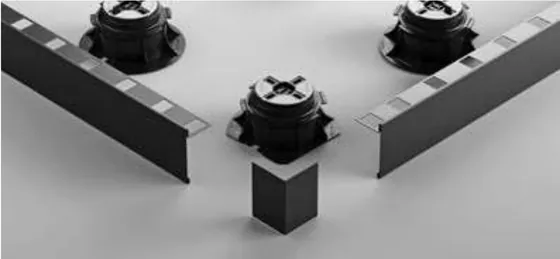

Vertical perimeter profile

Aluminium profile closing the perimeter edges of raised floors with 20 mm slabs, with linear and 90° corner joints.

Material: Aluminium, silver or anthracite
Heights: 30, 60, 90, 120, 150 mm
Length: 2400 mm
Codes: P021241030–P021253150

Catalogue p. 135

Accessories

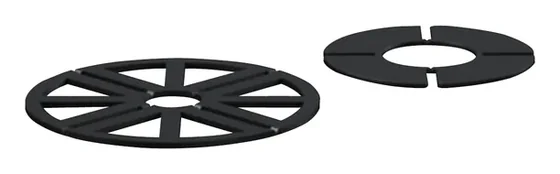

Rubber shims

Anti-slip, anti-noise rubber levellers placed on support heads to compensate 1–3 mm.

Material: Rubber
Sizes: LGH1/2/3: 1, 2, 3 mm, Ø 110 mm · LH3: 3 mm, Ø 150 mm
Codes: E082001000–E082003000 · E081003000

Catalogue p. 138

Accessories

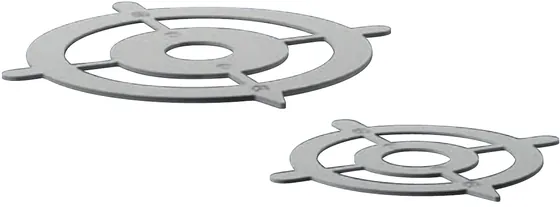

Twist slope compensator

Rotating compensator on NM, SB, ST and EH heads giving 0–1% slope correction each; several can be combined.

Slope: 0–1% per compensator, cumulative
Sizes: TW 110 Ø 110 mm · TW 150 Ø 150 mm
Codes: E084000110 · E084000150

Catalogue p. 139

Accessories

Clip for hexagonal slabs

Small polypropylene spacer clip fitted on PR, SE and NM heads for laying hexagonal slabs.

Material: PP
Tabs: 2, 3 or 4 mm
Codes: E004001002–E004001004 · heads E035100040, E035400040

Catalogue p. 142
