ملحقات وأنكرات قنوات التثبيت
Channel nuts, hammer-head bolts, threaded rod and couplers, washers, beam clamps and mechanical anchors for concrete and masonry.
Spring-loaded channel nuts can be inserted anywhere along the channel and stay in place while the fitting is bolted up, which makes one-person installation practical. Anchors are selected to the substrate and to the load the frame carries; the range covers expansion, drop-in, sleeve, through-bolt and shield anchors.
The full accessory range covers plain and angle fittings, gusseted brackets, base plates, threaded rod connectors, pipe clamps and beam clamps, all dimensionally matched to the channel profile.
18 products from catalogue KAVITY-09 — material, finish, sizes and codes as published. Each card links to its catalogue page.

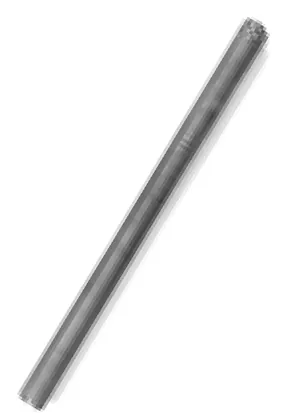

Fully threaded rod grade 4.6 to DIN 975 / ASTM A36 for hangers and supports.

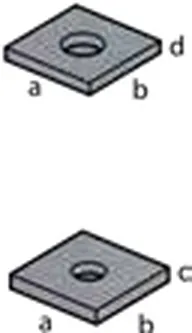

Square plate washer for all 41/21 and 41/41 series channels.

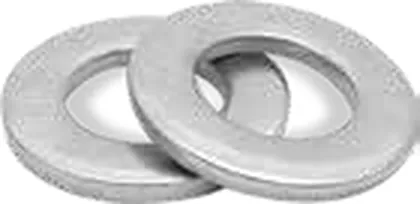

Flat washers to DIN 125 / ASTM F436.

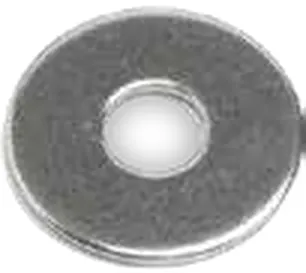

Large-diameter round washers to DIN 440 and DIN 9021.

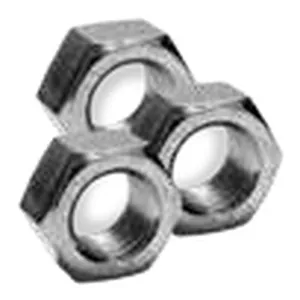

Hexagon nut to DIN 934 / ISO 4032.

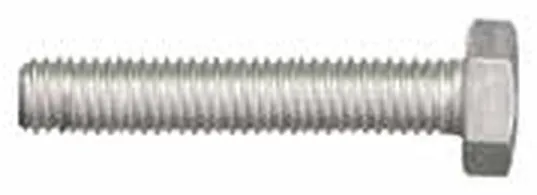

Machine hex head bolt to DIN 933 / EN 24017, supplied without nut.

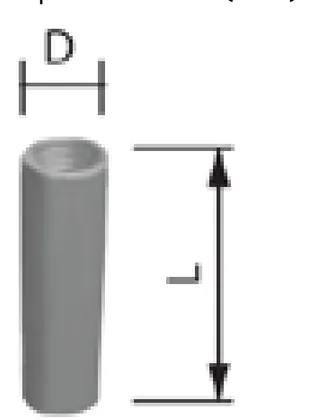

Rounded coupler sleeve for joining threaded rods.

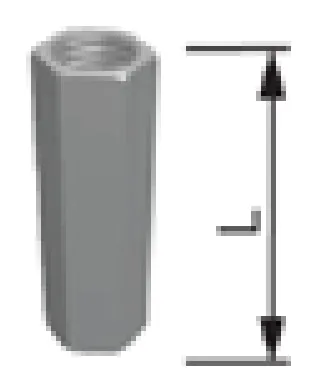

Hexagonal coupling nut with view hole for joining threaded rods of class 4.6 or less.

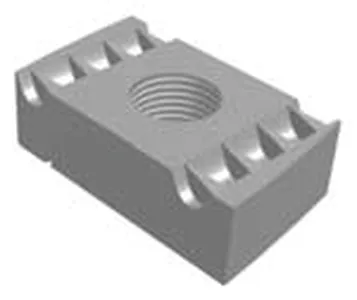

Serrated channel nut that locks into the inturned channel lips when tightened.

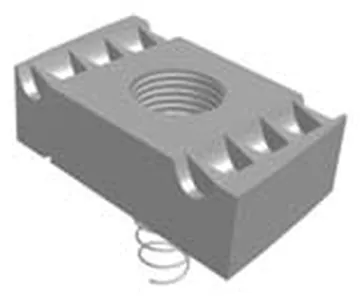

Serrated channel nut with short spring that holds it in position anywhere along the channel during assembly.

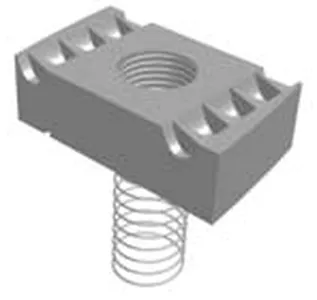

Serrated channel nut with long spring that holds it in position anywhere along the channel during assembly.

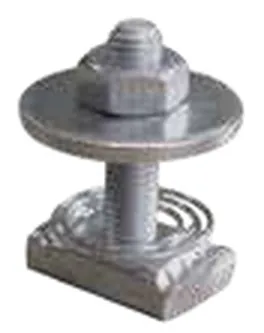

Hammer head bolt with Ø40 washer for direct fixing into channel.

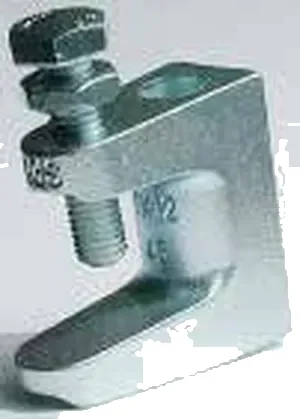

Cast-iron beam clamp with DIN 933 8.8 cup-point screw and DIN 439 locknut for sprinkler, HVAC and services.

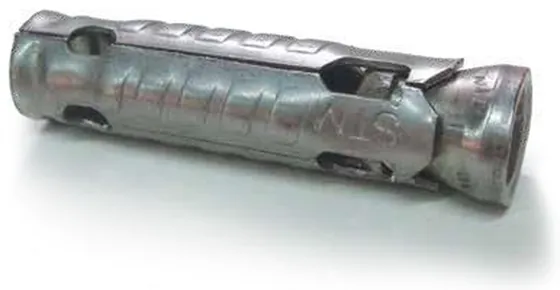

Internally threaded steel expansion anchor for cable trays, handrails, brackets, base plates and frameworks.

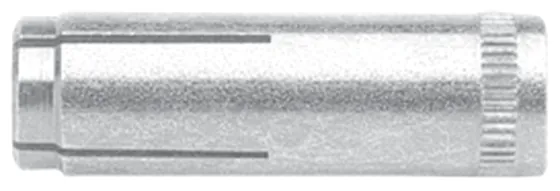

Drop-in anchor giving a permanent threaded socket in concrete for pipes, ducts, ceilings, sprinklers and threaded rods.

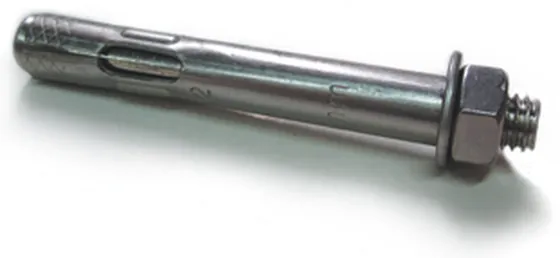

Sleeve anchor with hexagon screw or threaded bolt for concrete, stone, brick and blockwork.

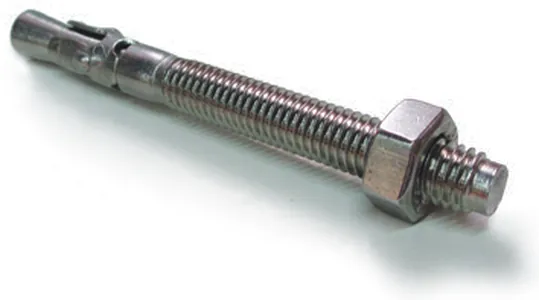

Wedge anchor for cracked and non-cracked concrete and natural stone, for channels, handrails, trays and brackets.

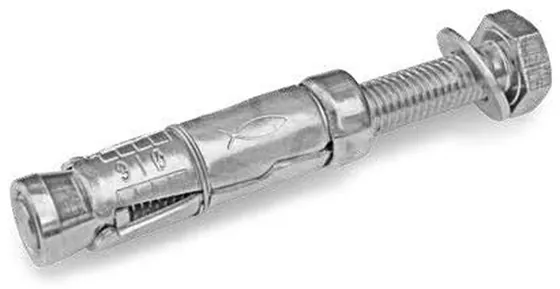

Die-cast shield anchor for fixing steel construction, handrails, consoles, brackets, ladders and gates.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
