Cable trunking

Trunking runs & fittings

الأطوال المستقيمة والقطع الخاصة لمجاري الكوابل

Straight lengths in single, double and triple compartment, with matched bends, tees and reducers.

Request a technical proposal Download catalogue PDF · 3.4 MB

Trunking runs & fittings

Choose the size from the number and size of cables and the space factor, and the number of compartments from the circuits that must be segregated. Bends, tees and reducers share the same profile, so each compartment stays continuous through every fitting.

Lengths are 2440 or 3000 mm in 1.0, 1.2 or 1.5 mm steel to BS EN 50085-1 and -2; weatherproof trunking for external and plant-room runs is supplied mill galvanised, hot-dip galvanised or powder coated.

Full technical catalogue Dimensions, load tables, accessories and standards · PDF, 3.4 MB

Download PDF

Product range

Every product in this range

17 products from catalogue KAVITY-07 — material, finish, sizes and codes as published. Each card links to its catalogue page.

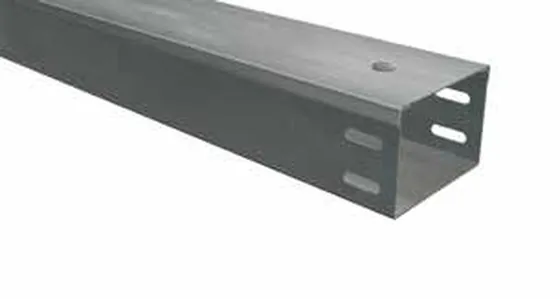

Single compartment cable trunking

Trunking runs

Single compartment cable trunking

Single compartment return-edge steel cable trunking to BS EN 50085-1/-2, supplied with couplings and quick-locking lids.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm · L 2440 / 3000 mm
Types: Type 1 inside, type 2 outside return edge
Standard: BS EN 50085-1, BS EN 50085-2
Codes: SCT 4200

Catalogue p. 23

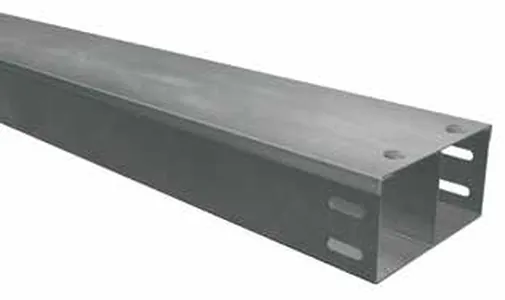

Double compartment cable trunking

Trunking runs

Double compartment cable trunking

Cable trunking divided into two compartments for segregating services.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm · L 2440 / 3000 mm
Types: Type 1 inside, type 2 outside
Codes: DCT 5200

Catalogue p. 24

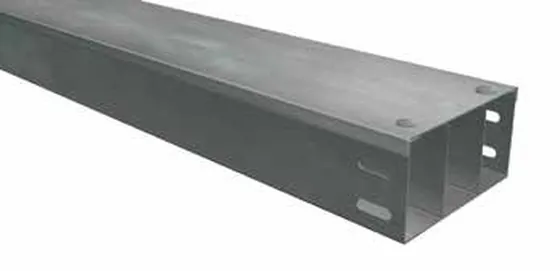

Triple compartment cable trunking

Trunking runs

Triple compartment cable trunking

Cable trunking divided into three compartments, with U-type or L-type separators.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm · L 2440 / 3000 mm
Separators: U-type or L-type
Codes: TCT 6200 U, TCT 6200 L

Catalogue p. 25

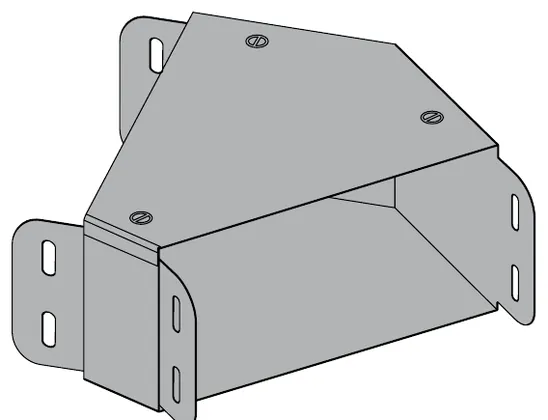

Bend 45° top lid

Trunking fittings

Bend 45° top lid

45° trunking bend with the lid on top, turning the run in the plane of the lid.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: TL45 / TLD45 / TLT45 7110

Catalogue p. 26

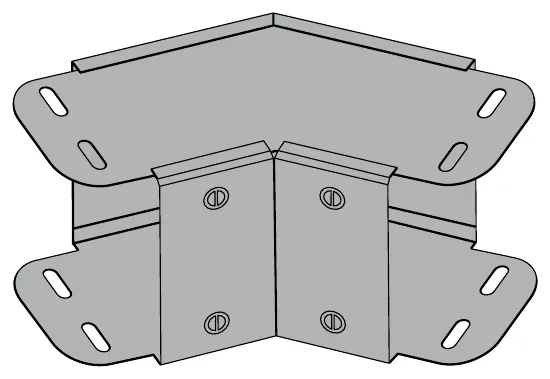

Bend 45° inside lid

Trunking fittings

Bend 45° inside lid

45° trunking bend with the lid on the inside of the bend.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: IL45 / ILD45 / ILT45 7210

Catalogue p. 27

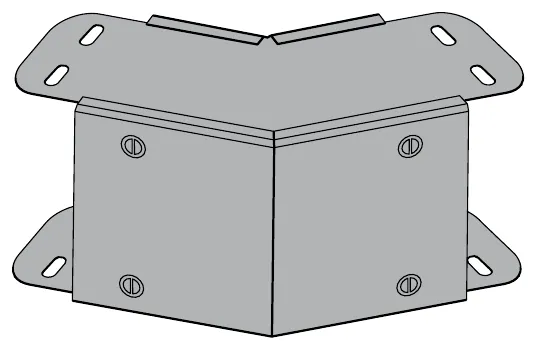

Bend 45° outside lid

Trunking fittings

Bend 45° outside lid

45° trunking bend with the lid on the outside of the bend.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: OL45 / OLD45 / OLT45 7310

Catalogue p. 29

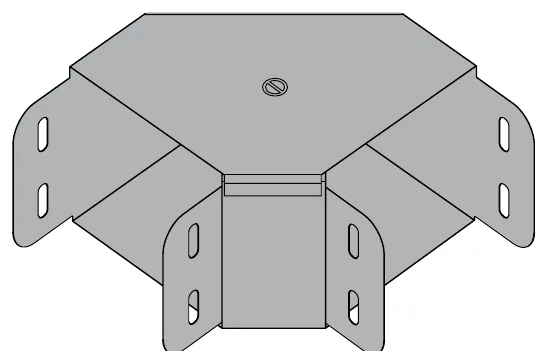

Bend 90° top lid

Trunking fittings

Bend 90° top lid

90° trunking bend with the lid on top; cornered version available.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: TL90 / TLD90 / TLT90 7410, TL90 7410 C

Catalogue p. 30

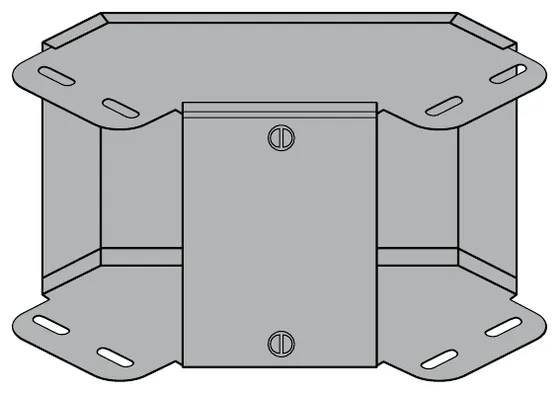

Bend 90° inside lid

Trunking fittings

Bend 90° inside lid

90° trunking bend with the lid on the inside of the bend.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: IL90 / ILD90 / ILT90 7510

Catalogue p. 32

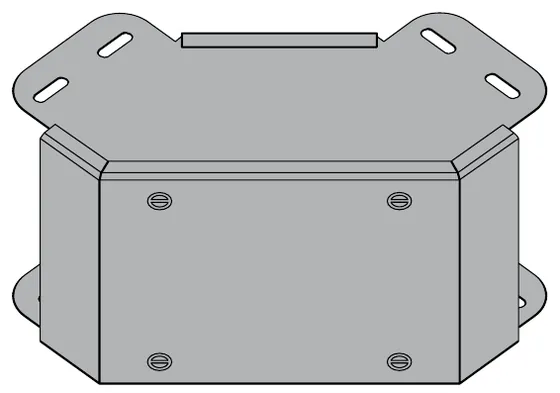

Bend 90° outside lid

Trunking fittings

Bend 90° outside lid

90° trunking bend with the lid on the outside of the bend.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: OL90 / OLD90 / OLT90 7610

Catalogue p. 33

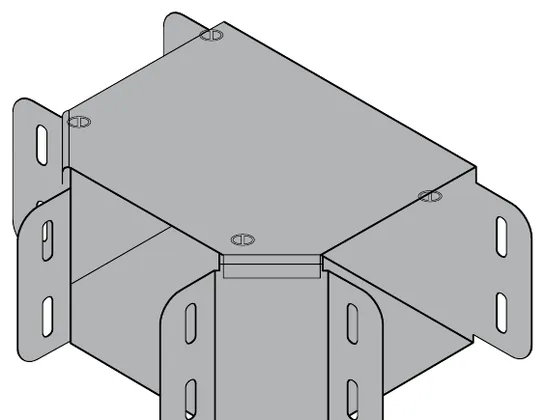

Tee bend top lid

Trunking fittings

Tee bend top lid

Tee junction for trunking with the lid on top.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: TBTL / TBTLD / TBTLT 7710

Catalogue p. 35

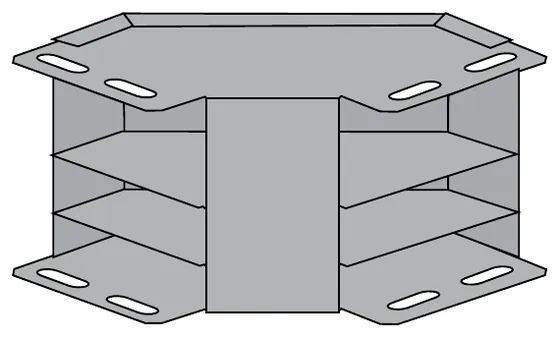

Tee bend inside lid

Trunking fittings

Tee bend inside lid

Tee junction for trunking with the lid on the inside.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: TBIL / TBILD / TBILT 7810

Catalogue p. 36

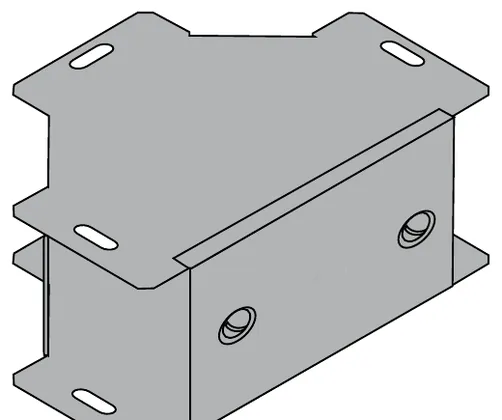

Tee bend outside lid

Trunking fittings

Tee bend outside lid

Tee junction for trunking with the lid on the outside.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: TBOL / TBOLD / TBOLT 7910

Catalogue p. 38

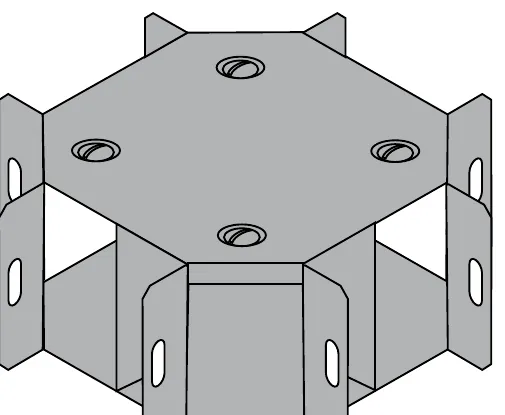

Intersection

Trunking fittings

Intersection

Four-way cross junction for cable trunking runs.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Types: Type 1 inside, type 2 outside
Codes: IF / IFD / IFT 8010

Catalogue p. 39

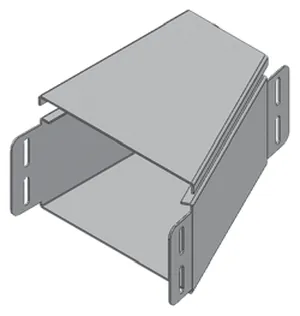

Right reducer / central right reducer

Reducers

Right reducer / central right reducer

Reducer joining trunking of different sizes with one side kept in line; made to suit available sizes.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 75 × 75→50 × 50 up to 600 × 100→450 × 100 mm
Types: Type 1 inside, type 2 outside
Codes: CR 9010-9015, CRR 9010-9015

Catalogue p. 41

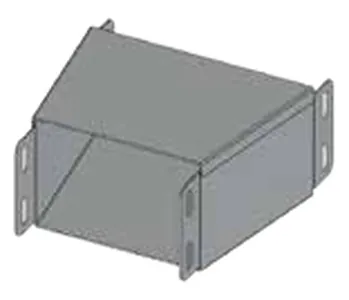

Central reducer

Reducers

Central reducer

Symmetrical reducer joining trunking of different sizes on a common centre line.

Thickness: 1.0 / 1.2 / 1.5 mm
Compartments: Single, double, triple
Codes: CRS / CRD / CRT 9010-9015

Catalogue p. 41

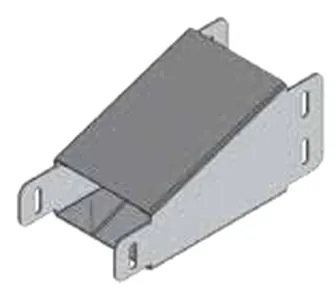

Central half reducer

Reducers

Central half reducer

Half reducer for changing trunking size in single, double or triple compartment runs.

Thickness: 1.0 / 1.2 / 1.5 mm
Compartments: Single, double, triple
Codes: CR2 / CR2D / CR2T 9010-9015

Catalogue p. 41

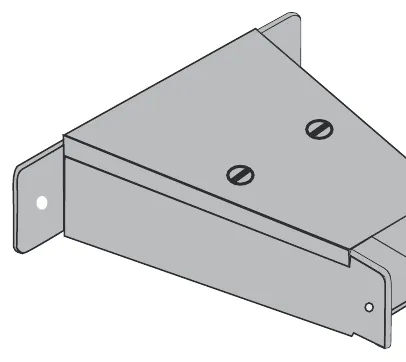

Bellmouth

Trunking fittings

Bellmouth

Bellmouth end fitting for cable trunking, in single, double and triple compartment versions.

Thickness: 1.0 / 1.2 / 1.5 mm
Sizes: 50 × 50 to 600 × 100 mm
Compartments: Single, double, triple
Codes: BLMS / BLMD / BLMT 9916

Catalogue p. 42
