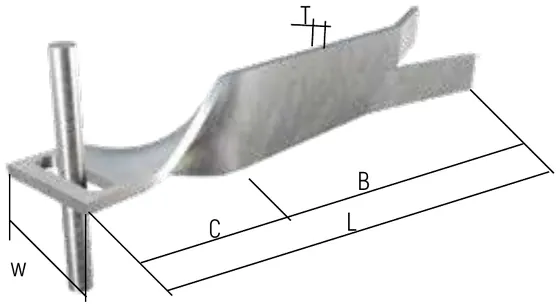

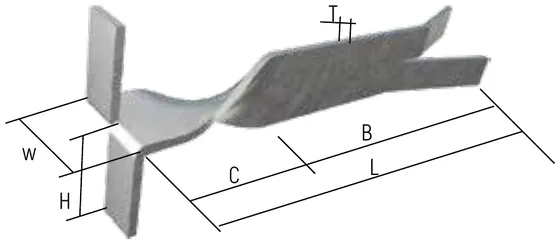

The fishtail is built into the wall: its split tail is embedded in reinforced concrete or solid blockwork, and its pin or up-and-down tabs engage the panel edges. The up-and-down type supports the panel above and restrains the panel below at the same horizontal joint, so one fixing does both jobs.
KAVITY supplies the complete STANGLE system — L-, Z-, omega and fishtail brackets, corrugated dowels and studs, anchors and secondary steel — in stainless or galvanised steel matched to the exposure. Our technical department sizes it from your elevation, panel weight, cavity depth and wind load, and issues the structural calculation and shop drawings needed for consultant approval.
Full technical catalogueDimensions, load tables, accessories and standards · PDF, 7.0 MB
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
