القطع الخاصة والدعامات لسلالم الكوابل
Bends, tees, risers, couplers, cantilever arms and trapeze framing sized to the ladder profile.
Fittings are made to the same side rail height and width as the ladder, and supports are spaced from the published load table for the actual cable load. Cantilever arms and trapeze frames are built on channel, so levels can be adjusted on site.
Both welded and swaged rung connections are available. Welded ladders have C-channel rungs MIG-welded to the side rails; swaged ladders have tubular rungs cold-swaged into the rails, in aluminium or steel, with no welding heat to affect the temper and strength of the rail metal. Both come with published NEMA load classes.
46 products from catalogue KAVITY-05 — material, finish, sizes and codes as published. Each card links to its catalogue page.

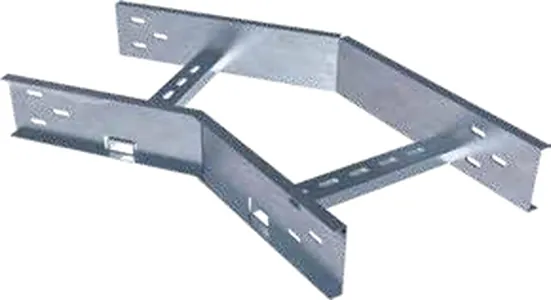

Horizontal 45° ladder bend, in cornered, curved or swaged-rung construction.

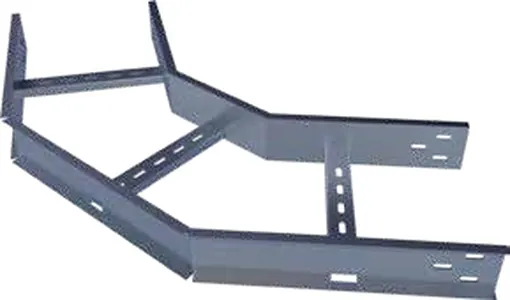

Horizontal 90° ladder bend for turning a cable ladder run at a right angle.

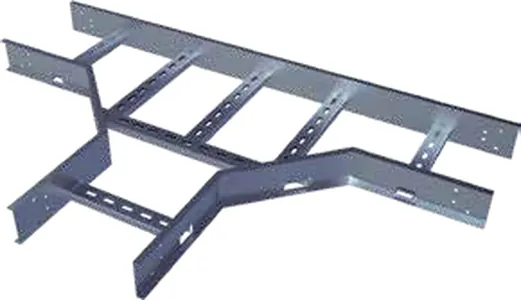

Horizontal tee fitting for branching a cable ladder run.

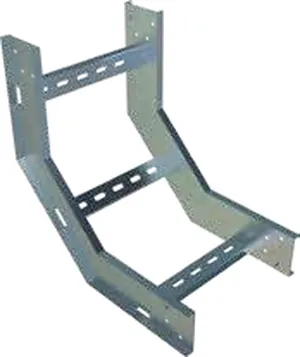

Inside vertical elbow for changing cable ladder elevation.

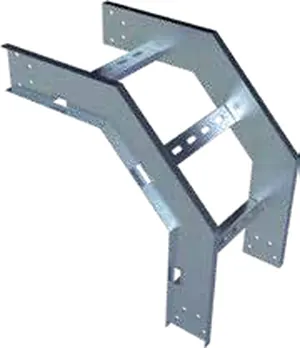

Outside vertical elbow for changing cable ladder elevation.

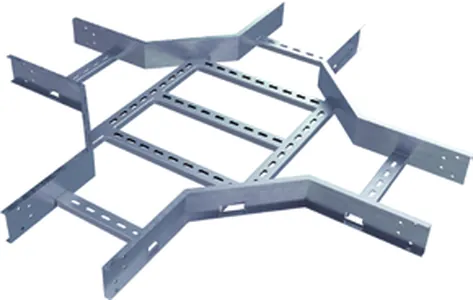

Four-way horizontal cross joining two cable ladder runs.

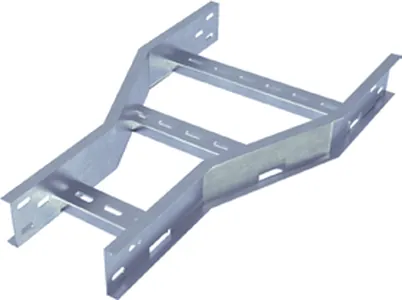

Symmetrical reducer joining cable ladders of different widths on a common centre line.
Reducer with one straight side on the right, joining ladders of different widths.

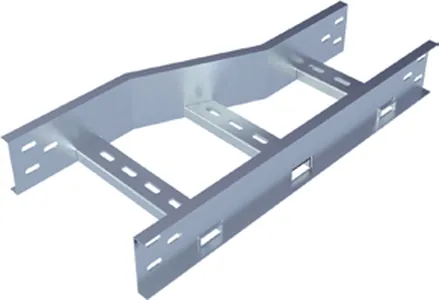

Reducer with one straight side on the left, joining ladders of different widths.

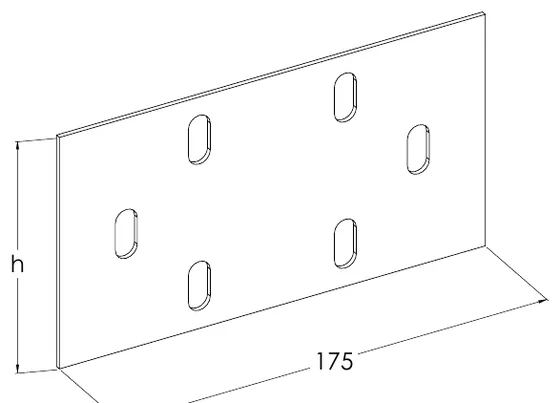

Splice plate for joining straight cable ladder lengths.
L-section splice plate for joining cable ladder sections.

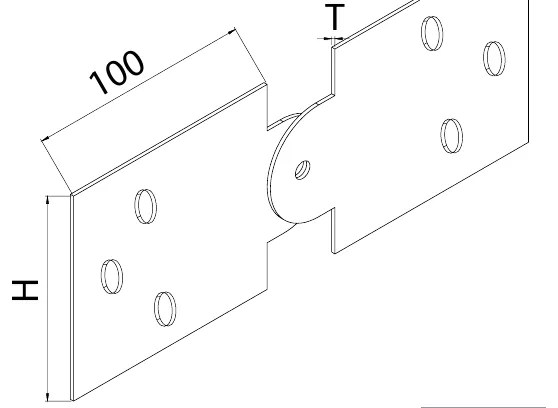

Hinged splice plate allowing an adjustable vertical angle between ladder sections.
Splice plate allowing an adjustable horizontal angle between ladder sections.

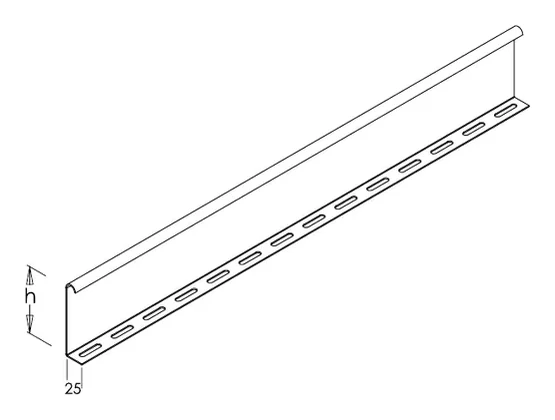

Divider strip for segregating cables within a cable tray or cable ladder.

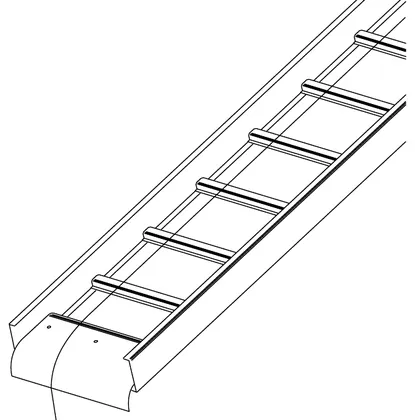

Curved plate protecting cables where they exit a cable tray or ladder.

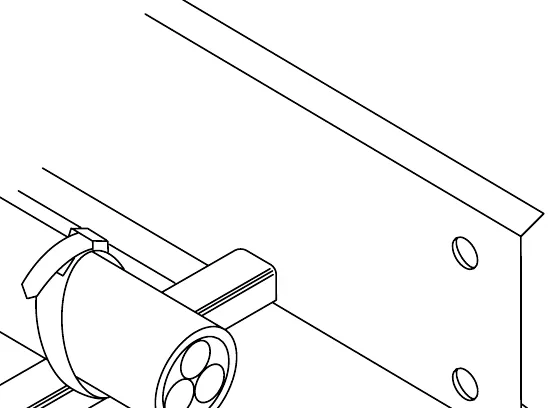

Nylon ties for attaching cables to ladder rungs.

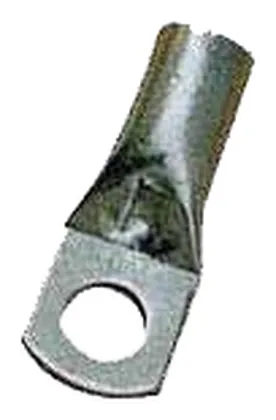

Copper tubular cable lug, crimped onto the conductor, for earthing and bonding.

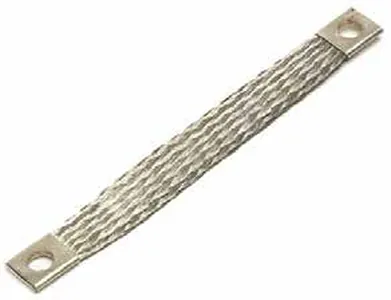

Tinned copper flexible braid crimped with terminals, for bonding across ladder joints.

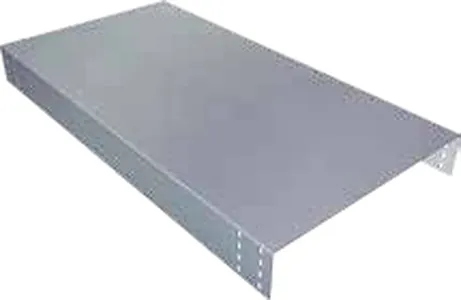

Solid ladder cover protecting cables from falling objects, debris, UV and contaminants.

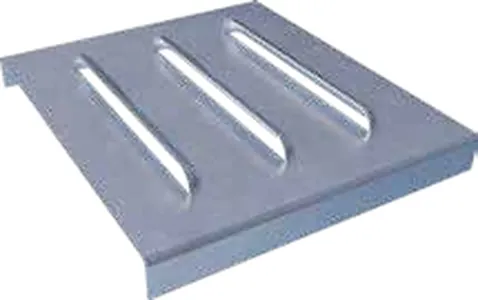

Ventilated ladder cover with louvres for straight sections.

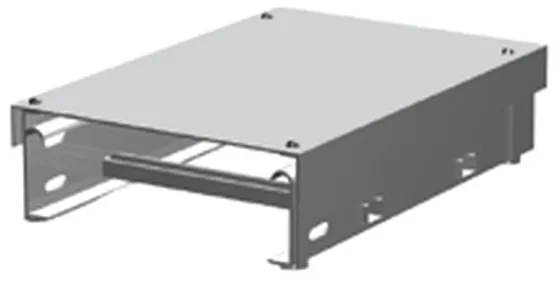

Ladder cover secured to the side rails with locking clamps.

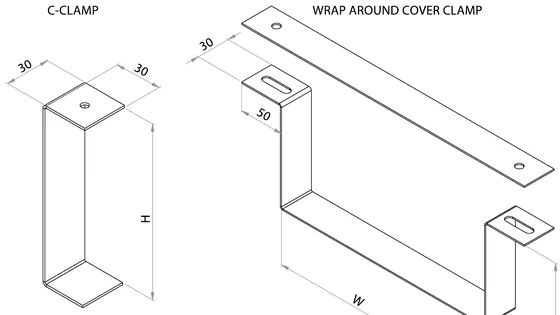

Clamps that fix covers to the cable ladder side rails.

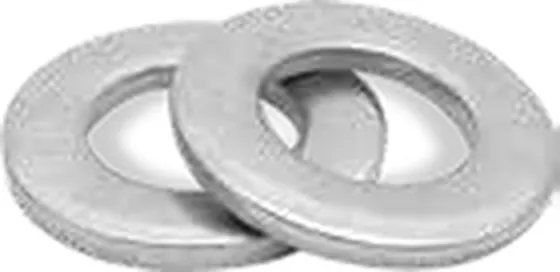

Flat washer to DIN 125 / ASTM F436.

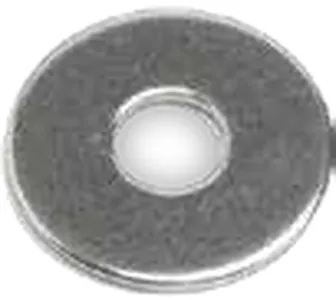

Large-diameter round washer to DIN 440 or DIN 9021.
Square plate washer for 41/21 and 41/41 series channels.
Fully threaded rod grade 4.6 to DIN 975 / ASTM A36.

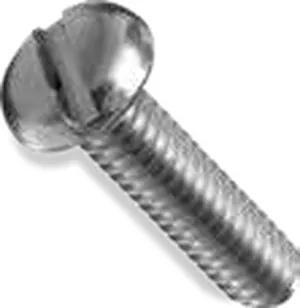

Round head machine screw to DIN 7985.

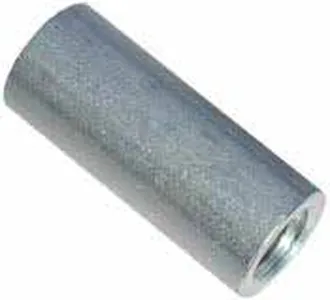

Round coupler sleeve for joining threaded rods.

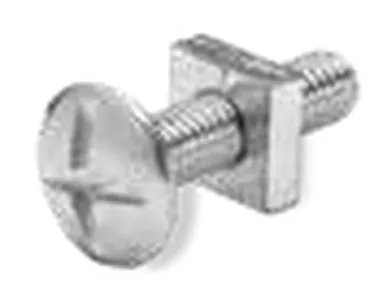

Roofing bolt in low carbon or carbon steel, grades 4.6, 4.8 and 8.8.
Carriage bolt with square neck below the head to DIN 603.

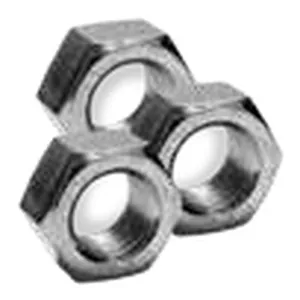

Hexagon nut to DIN 934 / ISO 4032 / ASTM A563.

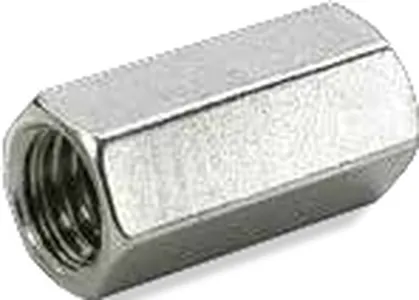

Hexagonal coupler with view hole for joining threaded rods, grade 8.8.
Hex head bolt to DIN 933 / EN 24017 / ASTM A307, A449, without nut.

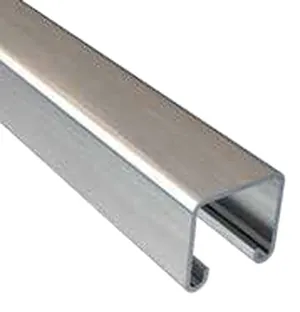

Cold-formed strut channel to BS 6946 with continuous slot for attachments at any point.

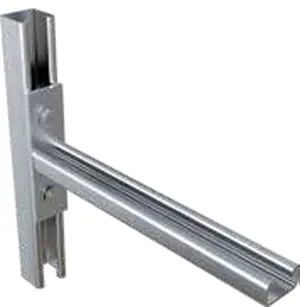

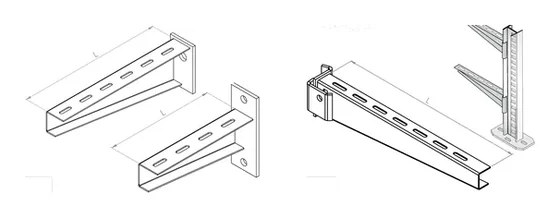

Channel cantilever arm with welded base plate for supporting cable ladders from walls or columns.

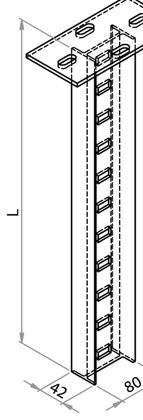

Slotted U-profile support with welded-on head plate for suspending cable ladders.

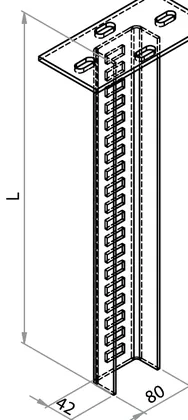

Slotted I-profile support for suspending cable ladders.

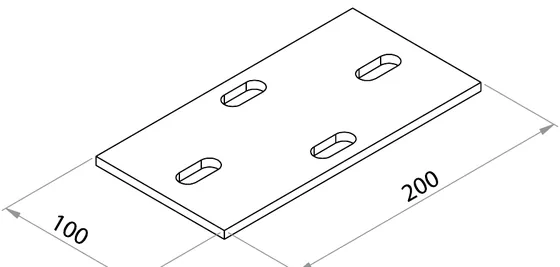

Head plate for fixing supports to the soffit.
Bracket for cantilevering cable ladders from U-supports or I-supports.

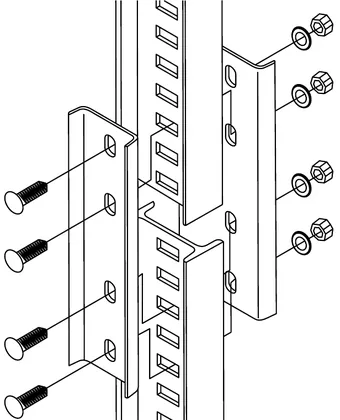

Bolted connector for joining support profiles.
Clamping plate for fixing profiles in a support frame.

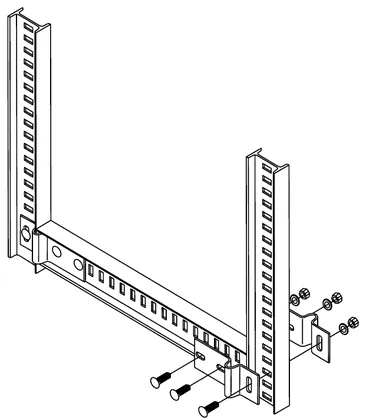

Support plate for assembling frames between vertical profiles.

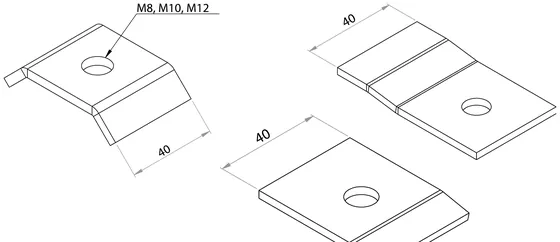

Hold down clamp, 40 mm wide, for M8, M10 and M12 fixings.

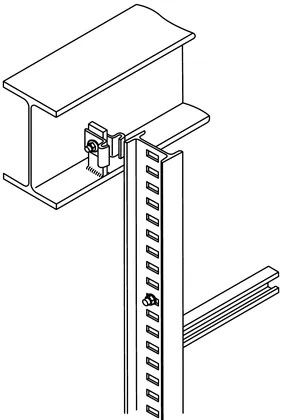

Clamp for attaching supports to steel beam flanges.

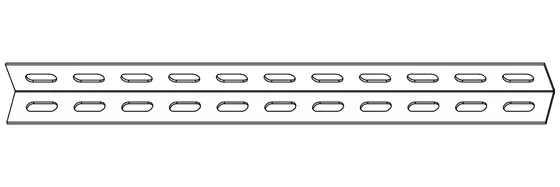

Clamping angle for securing profiles to steel sections.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
