حوامل وسلالم الكوابل من FRP
Pultruded fibreglass trays and ladders for corrosive environments — lightweight, non-conductive and non-magnetic.
In chemical plants, desalination, water treatment and coastal sites, galvanised steel can corrode well within the design life of the building. Pultruded FRP trays and ladders are corrosion-resistant and need minimal maintenance on site, and vinyl ester resin is available for the most aggressive environments.
FRP is also non-conductive and non-magnetic, which removes the earthing and induction concerns of a metal system, and its high strength-to-weight ratio makes it easy to handle on long runs and rooftop plant.
31 products from catalogue KAVITY-08 — material, finish, sizes and codes as published. Each card links to its catalogue page.

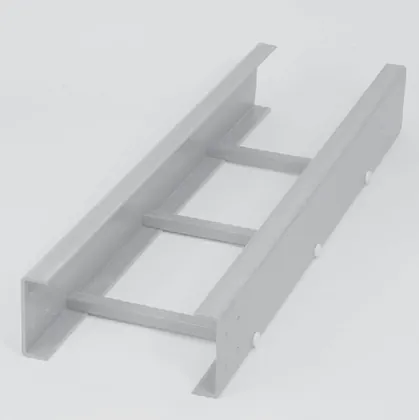

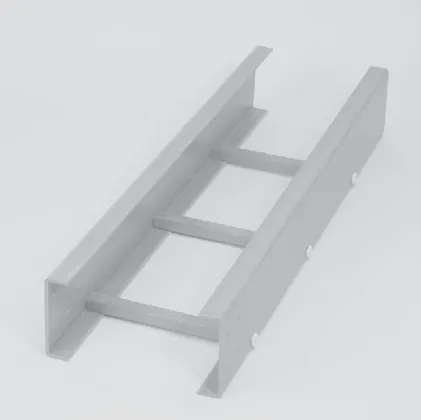

FRP cable ladder with 152 mm side rails and 25 × 25 mm rungs at 300 mm spacing.
FRP cable ladder with 152 mm side rails and 25 × 25 mm rungs at 300 mm spacing.

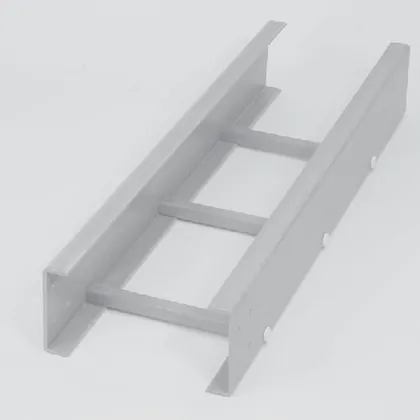

FRP cable ladder with 102 mm side rails and 25 × 25 mm rungs at 300 mm spacing.

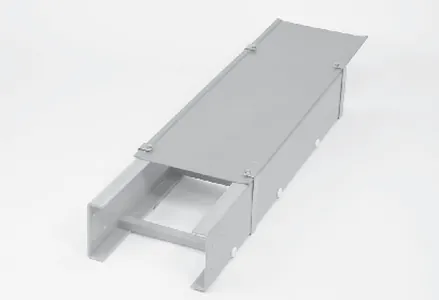

Flat or ribbed FRP cover for FRP cable ladders.

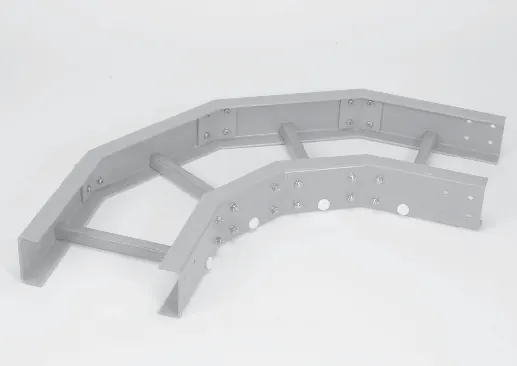

90° horizontal bend for changing direction of an FRP cable ladder run in the horizontal plane.

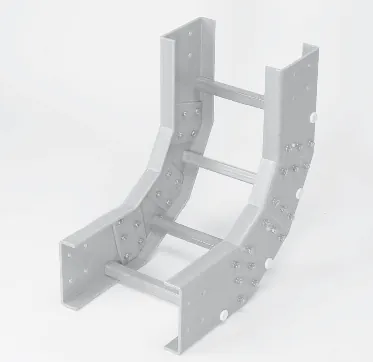

90° inside vertical bend for changing an FRP ladder run from horizontal to vertical, upwards.

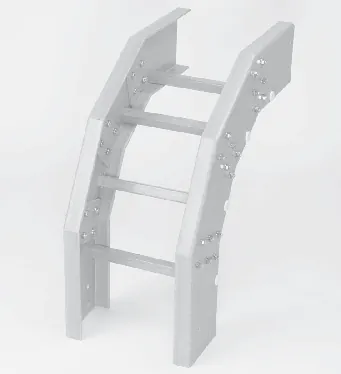

90° outside vertical bend for changing an FRP ladder run from horizontal to vertical, downwards.

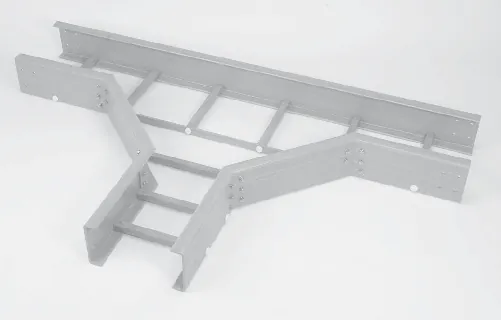

Horizontal tee for a three-way branch in an FRP cable ladder run.

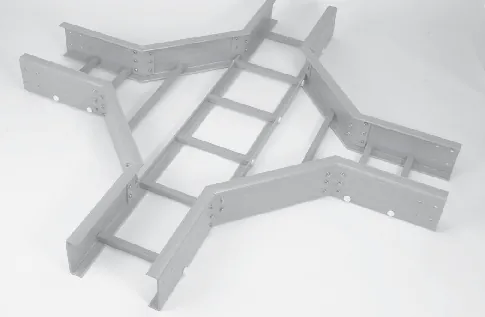

Horizontal cross for a four-way junction in an FRP cable ladder run.

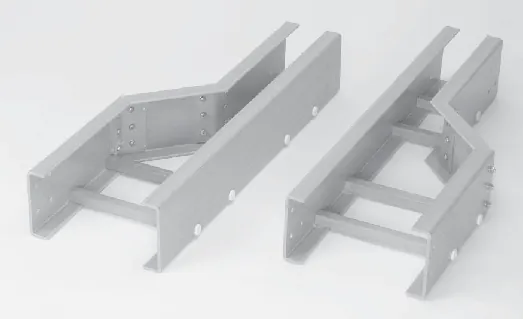

Reducer with one straight side for changing ladder width, offset to the left.

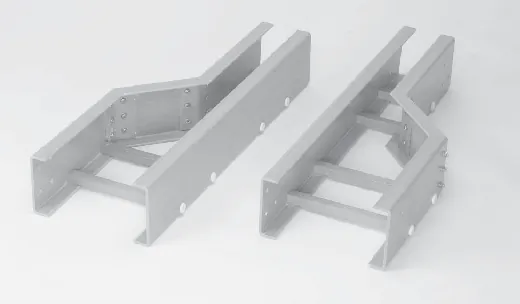

Reducer with one straight side for changing ladder width, offset to the right.

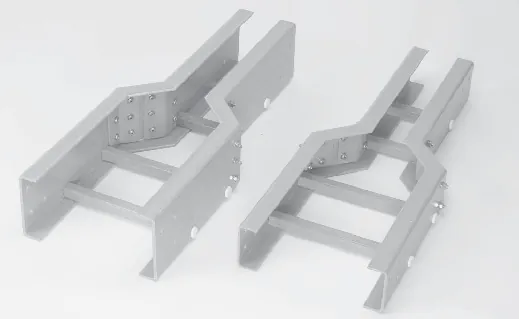

Symmetrical reducer for changing cable ladder width on the run centre line.

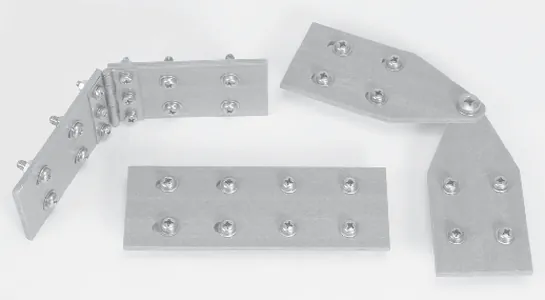

Bolted plate for joining FRP ladder or tray lengths; located at a quarter span from the support per NEMA FG 1.

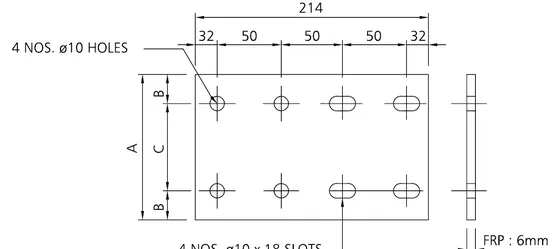

Slotted splice plate allowing thermal expansion movement between FRP ladder or tray lengths.

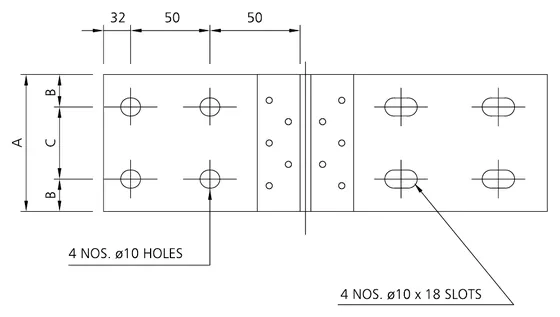

Hinged splice plate for joining ladder or tray lengths at an adjustable horizontal angle.

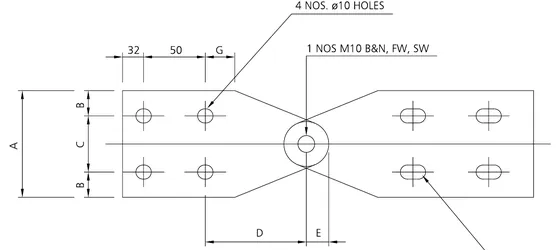

Pivoting splice plate for joining ladder or tray lengths at an adjustable vertical angle.

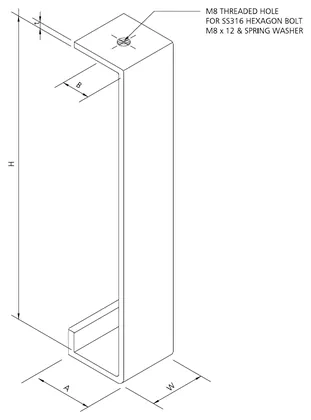

Stainless steel clamp that secures the cover to the FRP ladder side rail.

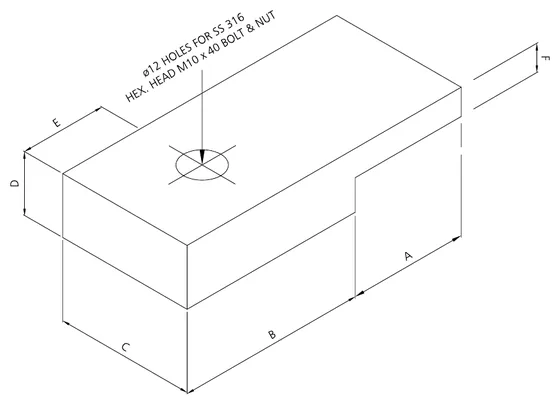

Clamp fixing the FRP ladder side rail to the support, with SS316 M10 bolt.

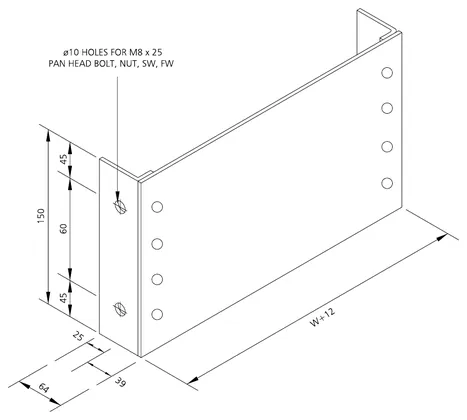

End plate closing the open end of an FRP cable ladder run.

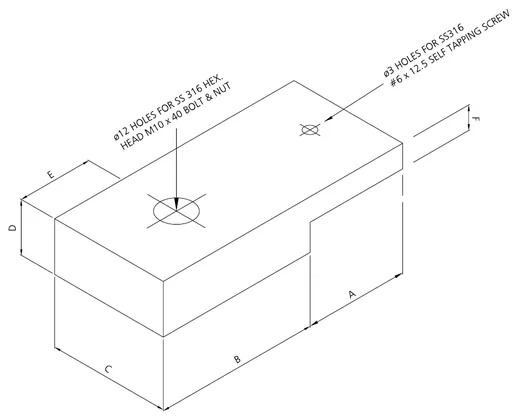

Clamp for fixing FRP ladder side rails on vertical runs, with SS316 bolt and self-tapping screws.

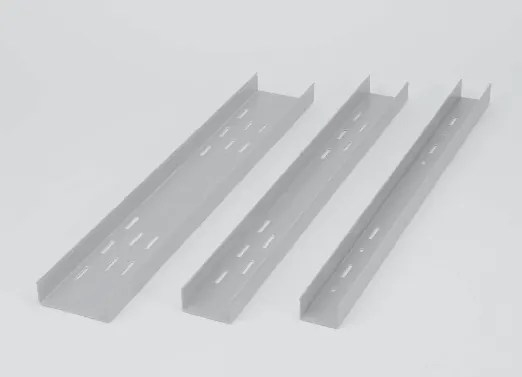

Perforated FRP cable tray with 7.5 × 50 mm slots, in C and U profiles.

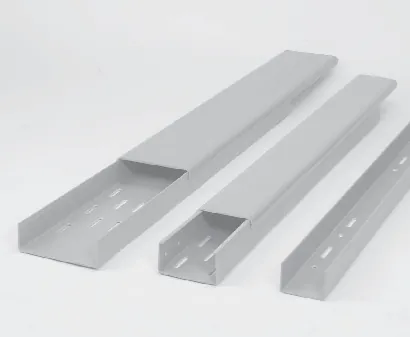

Flanged FRP cover for C and U series cable trays.

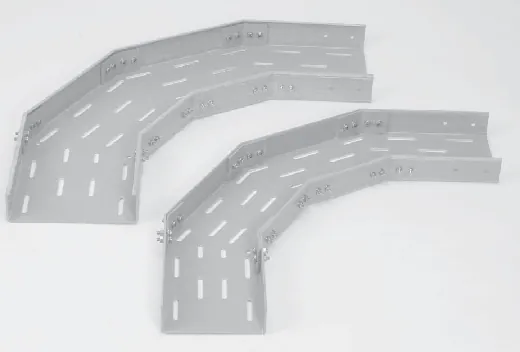

Horizontal bend for changing direction of an FRP cable tray run.

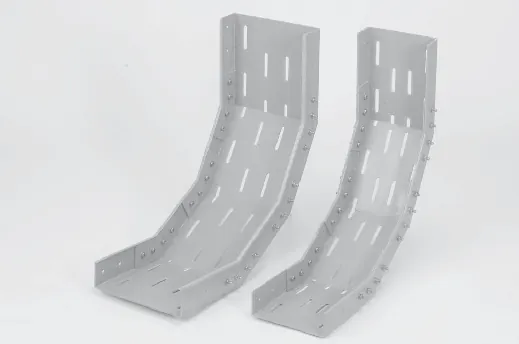

Inside vertical bend for turning an FRP cable tray run upwards.

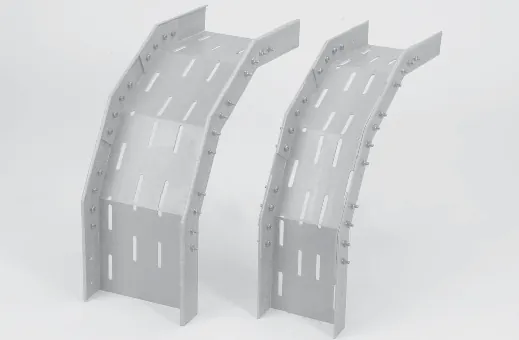

Outside vertical bend for turning an FRP cable tray run downwards.

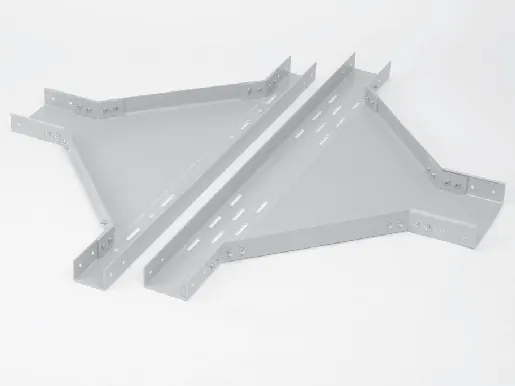

Horizontal tee with a narrower branch width for FRP cable tray runs.

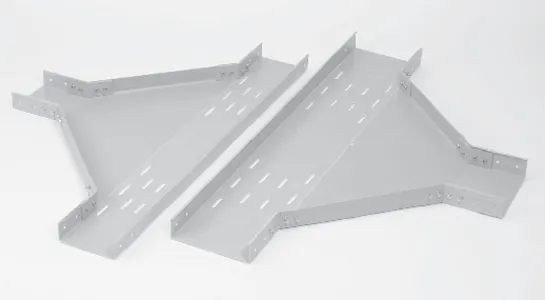

Horizontal tee with equal branch width for FRP cable tray runs.

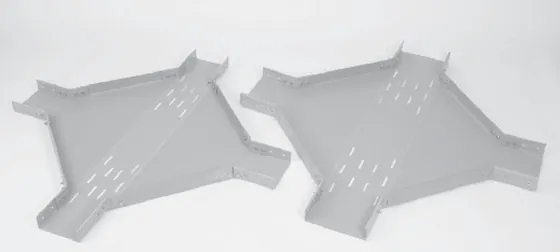

Four-way horizontal cross for FRP cable tray runs.

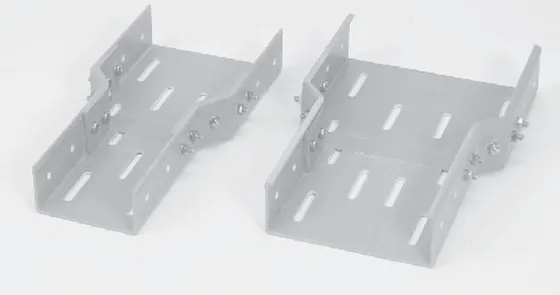

Symmetrical reducer for changing FRP cable tray width.

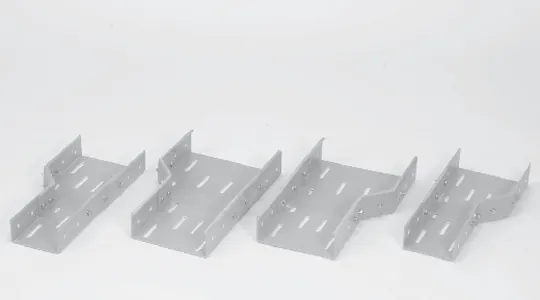

Offset reducer with one straight side for changing FRP tray width to the right.

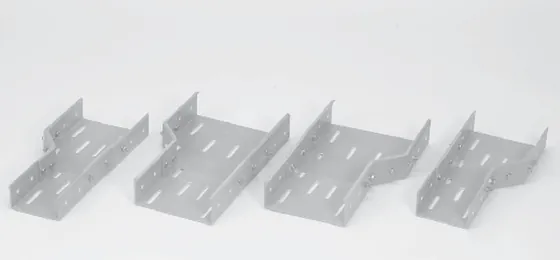

Offset reducer with one straight side for changing FRP tray width to the left.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
