تفاصيل المقاطع والموصلات لهياكل الأسقف
C-channel sections, couplers, omega brackets, threaded rods and L or T bracket connectors that assemble and hang the grid.

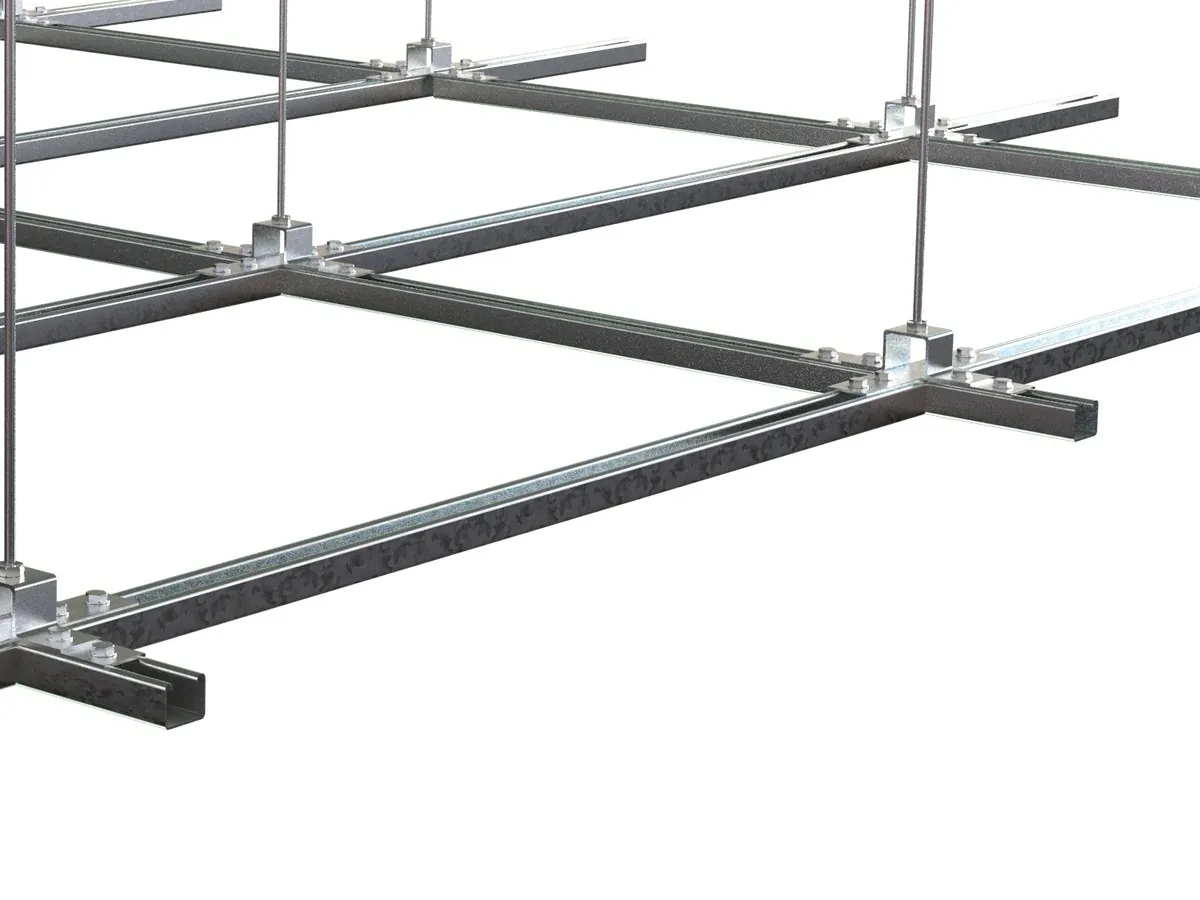

The grid is assembled from slotted C-channel cut to length, joined with couplers and, where needed, flat L or T bracket connectors, and hung from the soffit on threaded rods and omega brackets. The continuous slot lets attachments be made at any point along the channel.
The C-channel grid comes in four series — Standard, Advanced, Extreme and back-to-back — covering allowable loads from 40 to 350 kg/m², with the channel section, threaded rod and bracket thickness set per series.
6 products from catalogue KAVITY-11 — material, finish, sizes and codes as published. Each card links to its catalogue page.

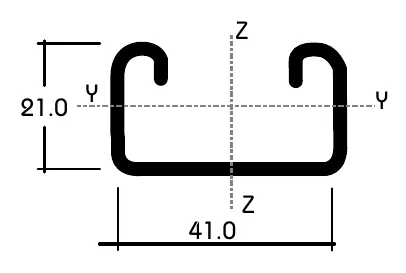

Main C-channel section cold formed from low-carbon steel to BS 6946:1988, with a continuous slot for attachments at any point.

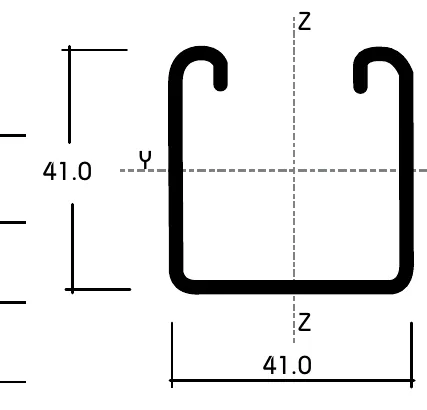

Deep main C-channel section cold formed from low-carbon steel to BS 6946:1988, with a continuous slot for attachments.

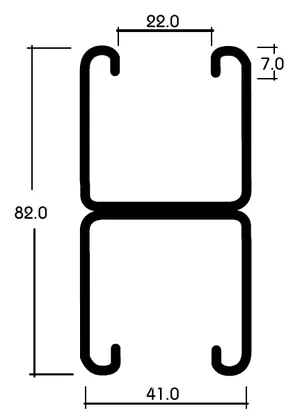

Two C-channels joined back to back for heavier-duty ceiling grid main runners.

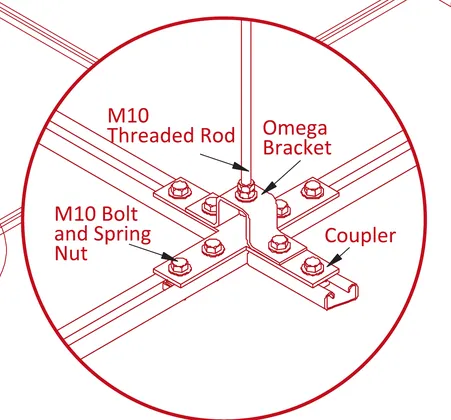

Spring nuts, bolts, couplers, omega brackets and threaded rods used to assemble and hang the C-channel ceiling grid.

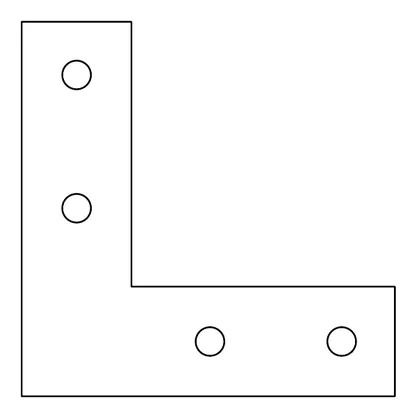

Optional four-hole L-shaped flat plate connector for joining main and secondary channels at grid corners.

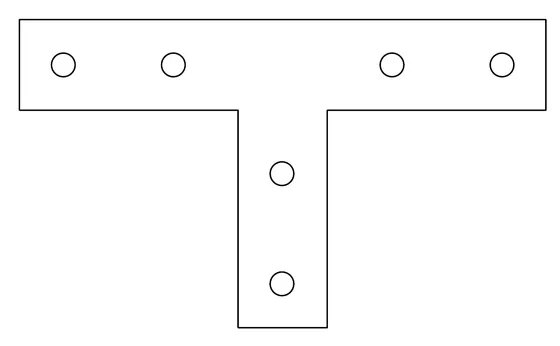

Optional six-hole T-shaped flat plate connector for joining secondary bars to main bars in the ceiling grid.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
