الملحقات والدعامات والإطارات لحوامل الكوابل الشبكية
Couplers, wall brackets, trapeze framing, drop-outs and the fixing hardware that turns cut mesh into a finished run.
A basket run is only as good as its supports. Wall brackets, trapeze hangers and centre-hung supports are matched to the tray width, and quick-fit couplers join lengths without drilling, so runs can be installed and re-routed quickly on congested ceilings.
The open mesh also lets air circulate around the cables and stops dust building up, and lets an inspector see the whole installation without lifting a cover.
33 products from catalogue KAVITY-06 — material, finish, sizes and codes as published. Each card links to its catalogue page.

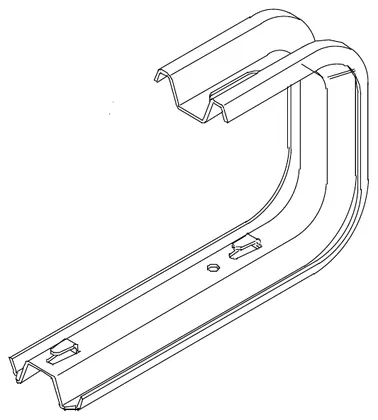

J-shaped cantilever bracket for supporting basket trays.

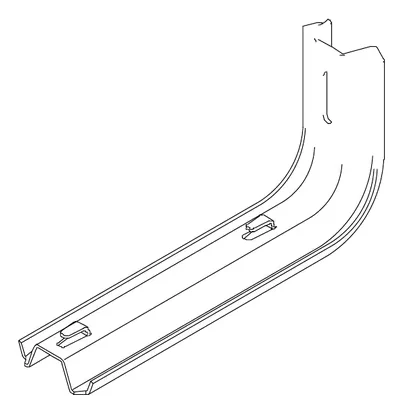

Cantilever bracket for supporting basket trays.
Bracket for floor-mounted basket trays and cable tray stands; can also be used for wall mounting.
Base holder for basket tray with 50 × 100 mm mesh and suspension.

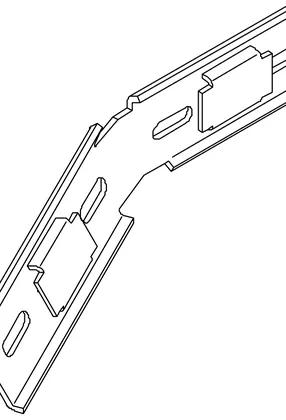

Connector bracket for producing 45° bends in basket tray.

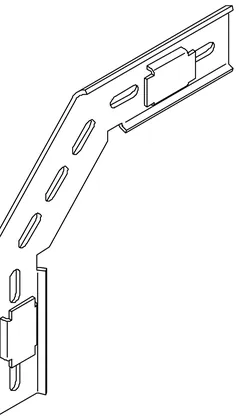

Connector bracket for producing 90° bends in basket tray.

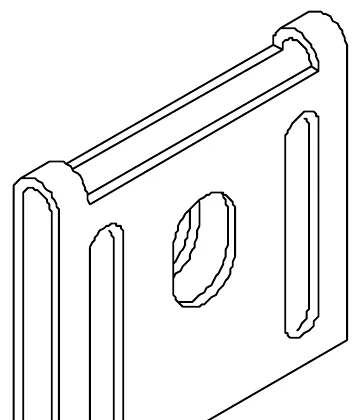

Wall mounting plate for fixing basket tray supports to walls.

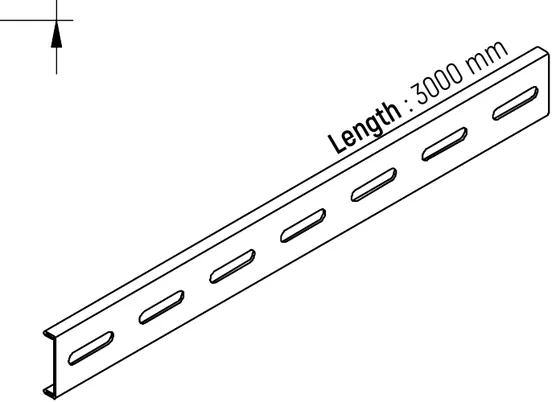

Slotted profile connecting the ceiling angle and the base holder.
Base holder for basket trays hung from a suspension profile.

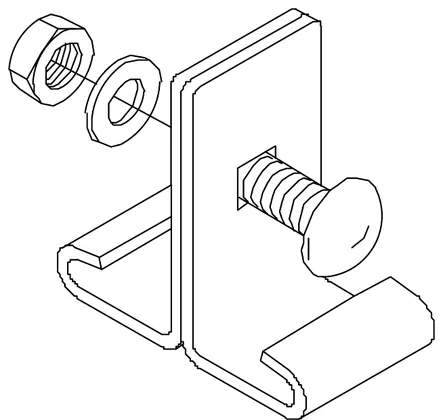

Hanger for mounting suspension profiles using a threaded rod.

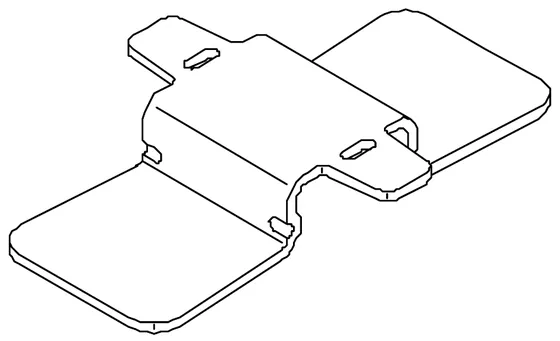

Clip connector joining basket tray lengths.

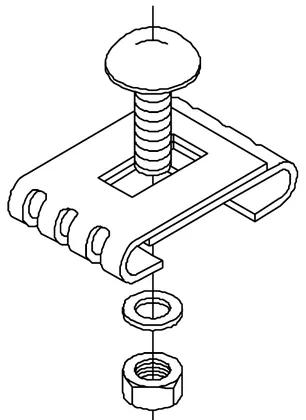

Connector with truss-head bolt for joining basket trays and forming bends.

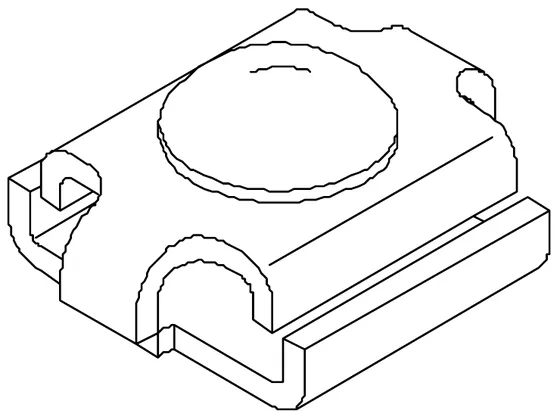

Joint connector for basket tray, supplied complete with one bolt.

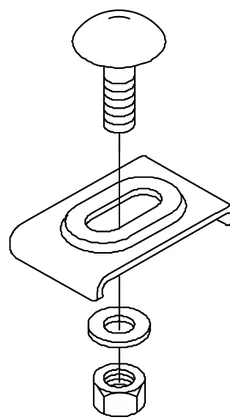

Clamp for mounting the barrier strip in the basket tray.

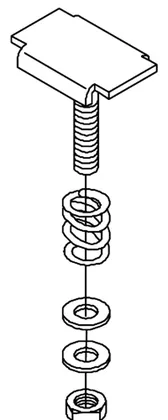

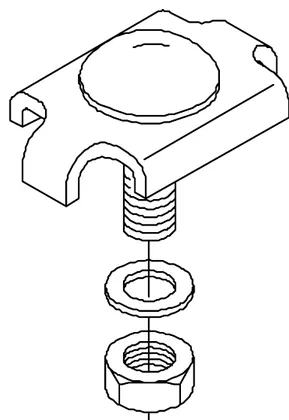

Clamp for mounting basket tray to a wall or support brackets.
Clamp for mounting basket tray to a wall or support brackets.

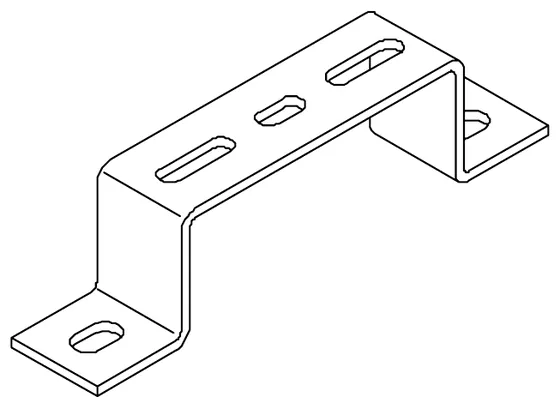

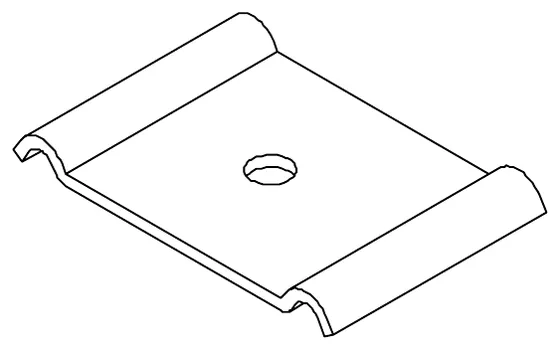

Clamp for mounting basket trays on the floor or on stand-off brackets.

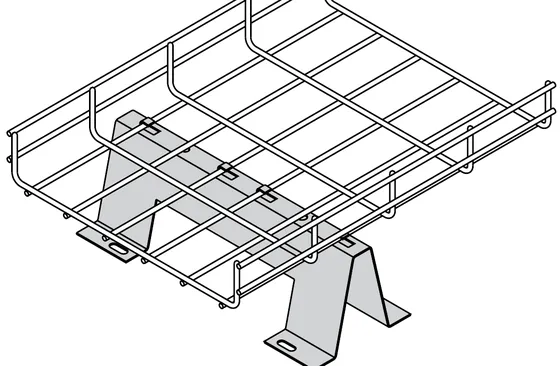

Stand supporting basket tray under raised floors.

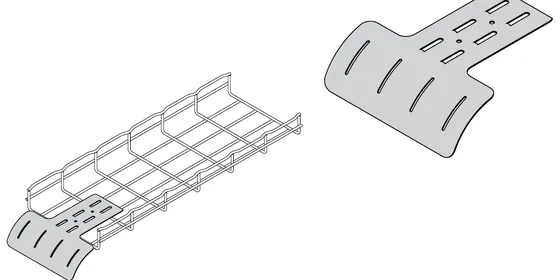

Keeps cable radius secure at the drop point; attaches without hardware at the bottom, side or end of the tray.

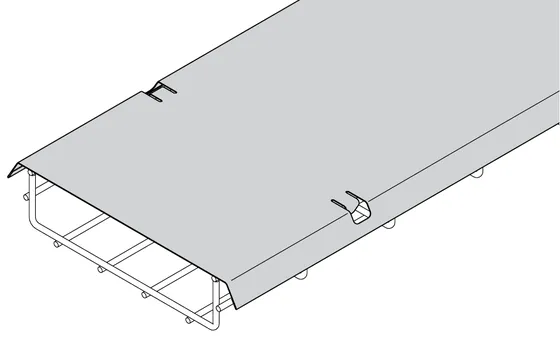

Cover for basket tray runs.

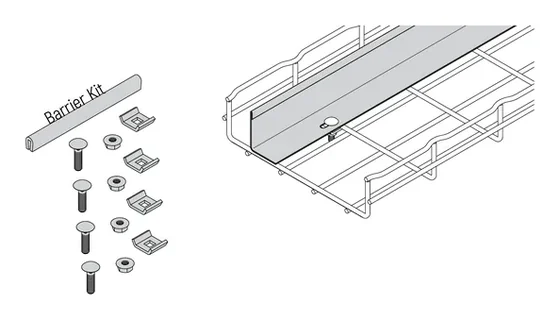

Barrier strip that separates cables, furnished with barrier kit including hardware.

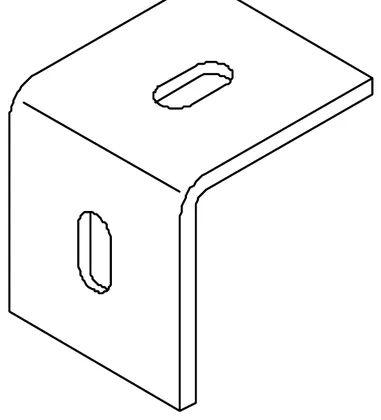

Angle bracket for fixing suspension profiles to the ceiling.

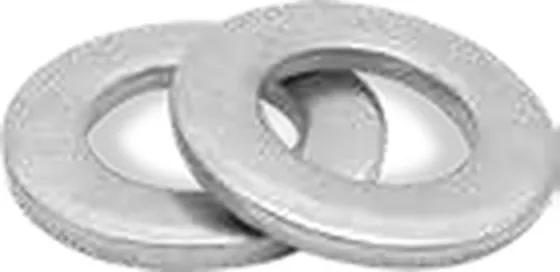

Flat washer to DIN 125 / ASTM F436.

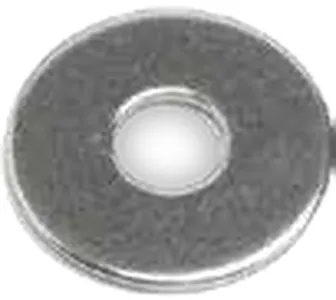

Large-diameter round washer to DIN 440 or DIN 9021.

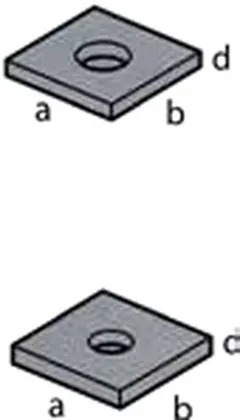

Square plate washer for 41/21 and 41/41 series channels.

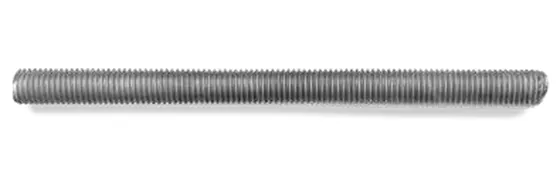

Fully threaded rod grade 4.6 to DIN 975 / ASTM A36.

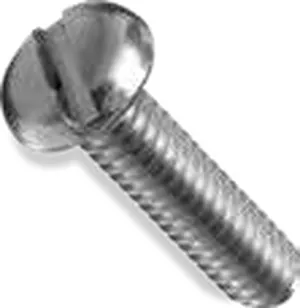

Round head machine screw to DIN 7985.

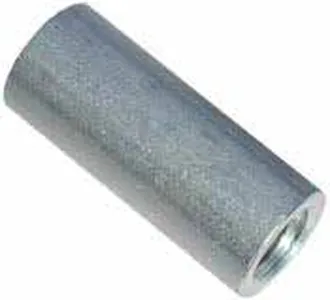

Round coupler sleeve for joining threaded rods.

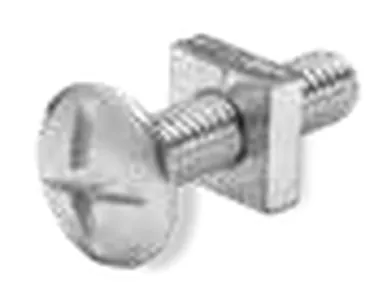

Roofing bolt in low carbon or carbon steel, grades 4.6, 4.8 and 8.8.

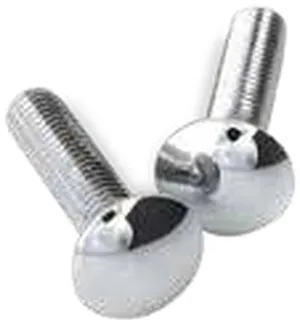

Carriage bolt with square neck below the head to DIN 603.

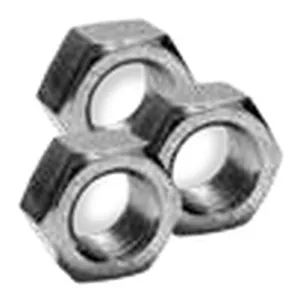

Hexagon nut to DIN 934 / ISO 4032 / ASTM A563.

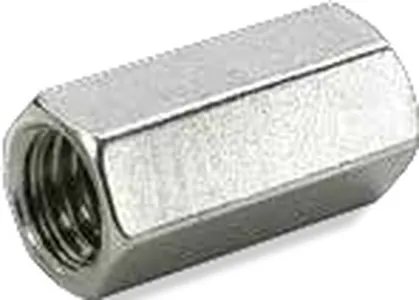

Hexagonal coupler with view hole for joining threaded rods, grade 8.8.
Hex head bolt to DIN 933 / EN 24017 / ASTM A307, A449, without nut.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
