Metal ceiling grid systems

C-channel ceiling grid systems

أنظمة هياكل الأسقف من قنوات C (سي تشانل)

Galvanised C-channel grids hung on threaded rods and omega brackets to carry services and ceilings — Standard, Advanced, Extreme and back-to-back series.

Request a technical proposal Download catalogue PDF · 12.4 MB
C-channel ceiling grid systems

The grid is built from C-channel cut into one-metre sections, suspended from the soffit on threaded rods with omega brackets and joined with couplers. Four series cover allowable loads from 40 kg/m² to 350 kg/m², with the rod size, bracket thickness and hanger spacing stated for each.

All systems are S235JRG2 steel, hot-dip galvanised or powder coated.

Full technical catalogue Dimensions, load tables, accessories and standards · PDF, 12.4 MB
Download PDF
Product range

Every product in this range

4 products from catalogue KAVITY-11 — material, finish, sizes and codes as published. Each card links to its catalogue page.

Standard ceiling grid system
Metal ceiling grid systems

Standard ceiling grid system

Ceiling grid of C-channel cut into one-metre sections, hung from the soffit on threaded rods and omega brackets, joined with couplers.

Material
S235JRG2 steel
Finish
Hot-dip galvanised or powder coated
C-channel
41 × 21 × 1.5 mm
Threaded rod · bracket
M10 / M12 · 3 mm
Max. distance · allowable load
50 cm · 40 / 65 kg/m²
Codes
CG-100 CSS, CG-120 CSS
Catalogue p. 21

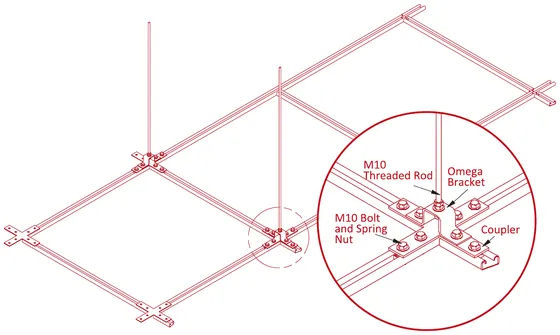

Advanced ceiling grid system
Metal ceiling grid systems

Advanced ceiling grid system

Ceiling grid of C-channel cut into one-metre sections, hung from the soffit on threaded rods and omega brackets, joined with couplers.

Material
S235JRG2 steel
Finish
Hot-dip galvanised or powder coated
C-channel
41 × 21 × 2.0 / 2.5 mm, 41 × 41 × 2 mm
Threaded rod · bracket
M10 / M12 · 4 mm
Max. distance · allowable load
40–50 cm · 90 / 150 / 245 kg/m²
Codes
CG-1000 CAS, CG-1200 CAS, CG-1300 CAS
Catalogue p. 23

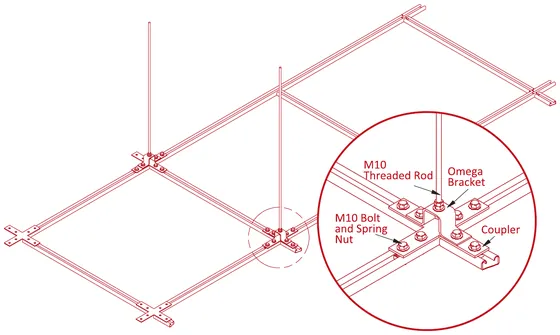

Extreme ceiling grid system
Metal ceiling grid systems

Extreme ceiling grid system

Ceiling grid of C-channel cut into one-metre sections, hung from the soffit on threaded rods and omega brackets, joined with couplers.

Material
S235JRG2 steel
Finish
Hot-dip galvanised or powder coated
C-channel
41 × 21 × 2.5 mm, 41 × 41 × 2.5 mm
Threaded rod · bracket
M10 · 4 mm
Max. distance · allowable load
50 cm · 300 / 350 kg/m²
Codes
CG-2000 CES, CG-2200 CES
Catalogue p. 26
Back-to-back ceiling grid system
Metal ceiling grid systems

Back-to-back ceiling grid system

Ceiling grid of C-channel cut into one-metre sections, hung from the soffit on threaded rods and omega brackets, joined with couplers.

Material
S235JRG2 steel
Finish
Hot-dip galvanised or powder coated
C-channel
Back to back 41 × 21 × 2.5 mm, 41 × 41 × 2.5 mm
Threaded rod · bracket
M12 · 4 mm
Max. distance · allowable load
100 cm · 250 / 280 kg/m²
Codes
CG-3000 BES, CG-3200 BES
Catalogue p. 28
More in this range

Metal ceiling grid systems

Exposed grid
Metal ceiling grid systemsExposed grid
Semi-concealed & clip-in grid
Metal ceiling grid systemsSemi-concealed & clip-in grid
Section details & connectors
Metal ceiling grid systemsSection details & connectors
