Raised access flooring

Indoor access floors

الأرضيات المرتفعة الداخلية

Porcelain slabs on self-levelling adjustable pedestals for plant rooms, technical rooms and interiors, with a service void for cabling and pipework.

Indoor access floors

Slabs sit loose on Eterno Ivica self-levelling pedestals to form a void for cabling, pipework and conditioned air. Any slab can be lifted to reach the services, so layouts can change without breaking out the floor.

Pedestals adjust from 10 mm to 945 mm and accept porcelain, granite, HPL, timber decking, carpet tile and stainless panels, with self-levelling heads for sloped slabs.

Full technical catalogue Pedestal heights, heads, slabs and accessories · PDF, 17.5 MB
Download PDF
Product range

Every product in this range

10 products from catalogue KAVITY-13, KAVITY-14 — material, finish, sizes and codes as published. Each card links to its catalogue page.

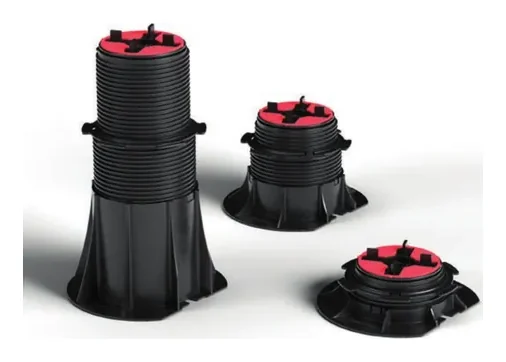

PR V0 self-extinguishing Prime® support
V0 self-extinguishing supports

PR V0 self-extinguishing Prime® support

Prime® support made of self-extinguishing raw materials that do not spread flames and significantly reduce smoke in a fire.

Rating
V0 self-extinguishing
Height
30–420 mm; up to 945 mm with PPR V0 extensions
Codes
E500030065.V0 · E500060155.V0 · E500150420.V0
Catalogue p. 100

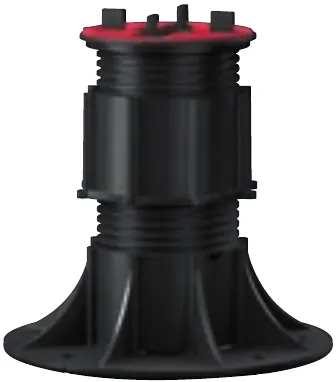

SE V0 self-extinguishing Eterno support
V0 self-extinguishing supports

SE V0 self-extinguishing Eterno support

Self-extinguishing version of the SE Eterno self-levelling support for passive fire protection.

Rating
V0 self-extinguishing
Height
28–550 mm (SE V0 0–14)
Head
Self-levelling Ø 110 mm, 4 mm tabs H 12 mm
Codes
E240028038.V0–E240365550.V0
Catalogue p. 104

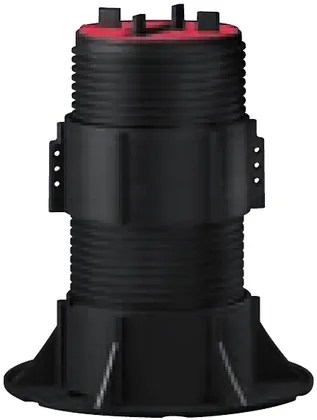

NM V0 self-extinguishing New Maxi support
V0 self-extinguishing supports

NM V0 self-extinguishing New Maxi support

Self-extinguishing version of the New Maxi adjustable support.

Rating
V0 self-extinguishing
Height
25–270 mm (NM V0 1–5)
Codes
E014025047.V0–E014150277.V0 · PNM V0 E044000145.V0
Catalogue p. 105

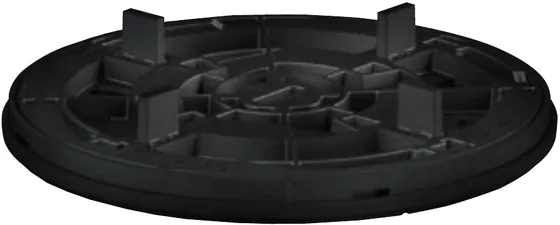

Star.T V0 self-extinguishing support
V0 self-extinguishing supports

Star.T V0 self-extinguishing support

Self-extinguishing version of the ultra-low Star.T adjustable support and its extension.

Rating
V0 self-extinguishing
Height
10–15 mm; 5 mm extension
Codes
E003011015.V0 · E003920005.V0
Catalogue p. 106

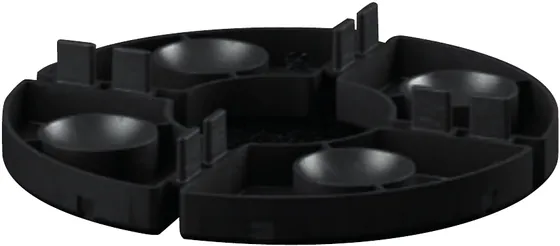

EH V0 self-extinguishing fixed height support
V0 self-extinguishing supports

EH V0 self-extinguishing fixed height support

Self-extinguishing version of the EH fixed-height supports and balancer.

Rating
V0 self-extinguishing
Height
12, 15, 20 mm; balancer 5 mm
Codes
E008012008.V0 · E000012003.V0 · E000015000.V0 · E002020000.V0
Catalogue p. 107
SMA metal support class A1
Metal supports

SMA metal support class A1

Non-combustible adjustable metal support with self-levelling tilting head and anti-tilting locking ring, for slabs, decking and multi-format laying.

Reaction to fire
Class A1
Height
27–458 mm (SMA1–SMA7)
Base
100 × 100 mm, 1.8 mm thick
Slope
Up to 5%
Codes
T0001028035–T0001298458
Catalogue p. 108

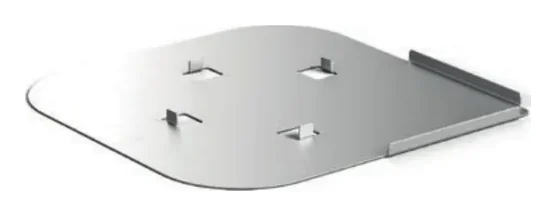

Galvanised steel separator layer class A1
Metal supports

Galvanised steel separator layer class A1

Galvanised plate placed under metal supports to protect the waterproof membrane, usable at slab centre, wall or corner without cutting.

Material
Galvanised steel sheet, 1 mm
Size
184 × 184 mm
Reaction to fire
Class A1
Code
T0000003419
Catalogue p. 112

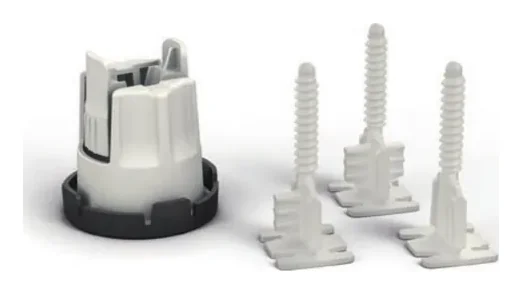

Tile levelling system for glued tiles
Accessories

Tile levelling system for glued tiles

Tie rod, spacer and protection ring that align and flatten the edges of glued porcelain stoneware tiles on floors and walls.

Joints
1.5, 2, 3, 4, 5 mm
Spacers
Linear · T · cross
Codes
E085000000 · E085000100–E085000125
Catalogue p. 143

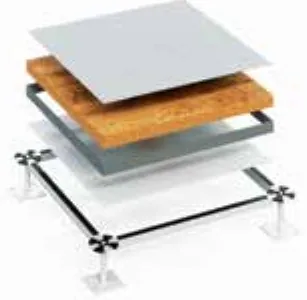

Raised access floor system (Pixel)
Floor systems

Raised access floor system (Pixel)

High-tech raised access flooring panels and finishes for commercial, governmental, transport, healthcare and educational projects. Brand: Pixel Access Flooring.

Brand
Pixel Access Flooring
Catalogue p. 34

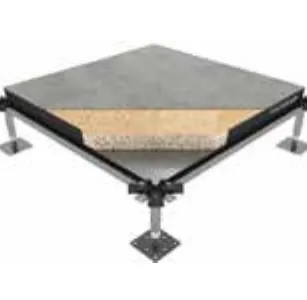

Raised access floor system (Tate / Apsilon)
Floor systems

Raised access floor system (Tate / Apsilon)

Access floor panels with wood, calcium sulphate or cementitious core on adjustable pedestals, stringered or stringerless. Brand: Tate / Apsilon.

Core
Wood, calcium sulphate or cementitious composite
Understructure
Stringered or stringerless
Finishes
HPL, granite, porcelain, wood, carpet, stainless steel
Duty
Low, medium and heavy
Catalogue p. 35
More in this range

Raised access flooring

Start a project

Have a project in design or at tender?

Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
