Trafficked covers for floor gaps — sized to the movement range and to whether the load is pedestrian, private cars or vehicles.
A floor joint cover is chosen by the movement it must accept and the traffic it must carry. Pedestrian covers stay slim and flush with the finish; private-car and vehicle covers use heavier sections and anchoring. Inserts can be matched to the floor finish so the joint reads as part of the floor.

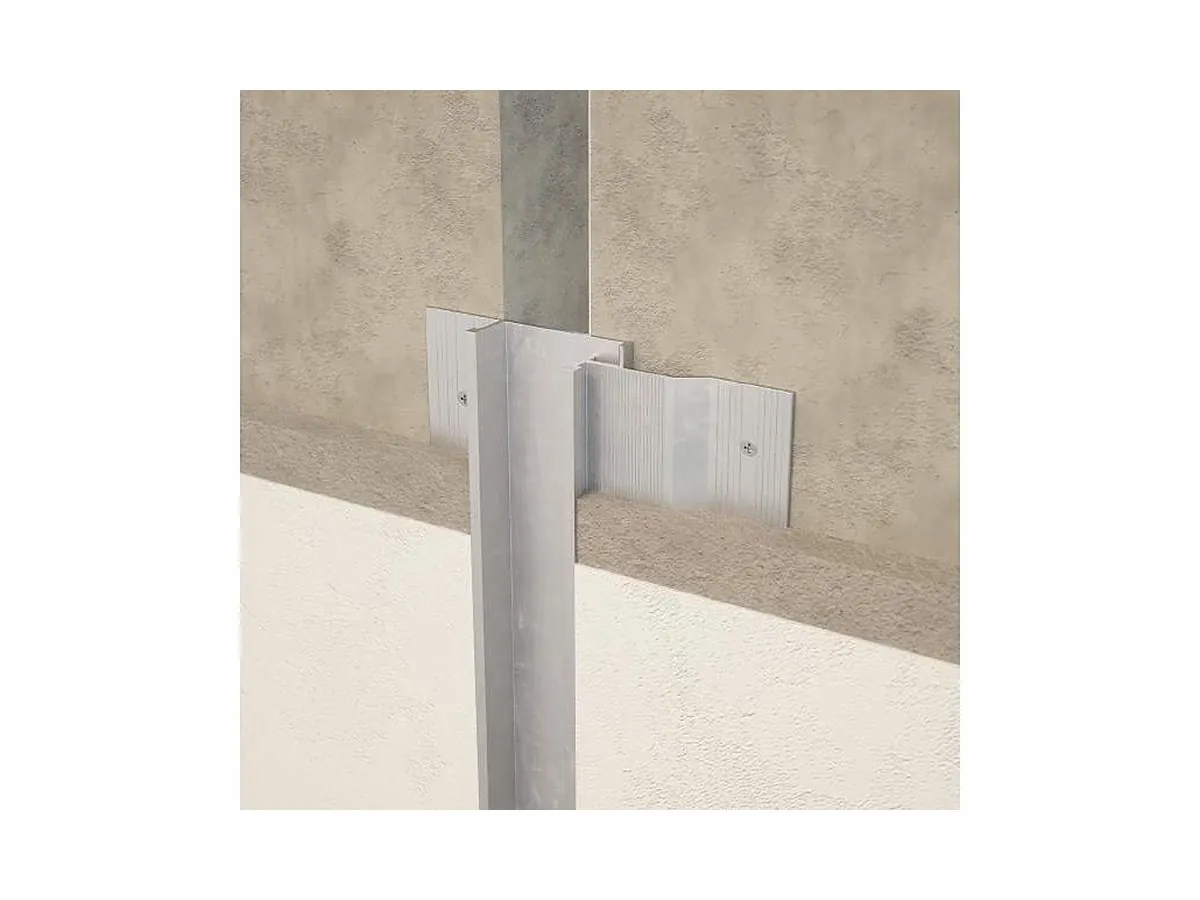

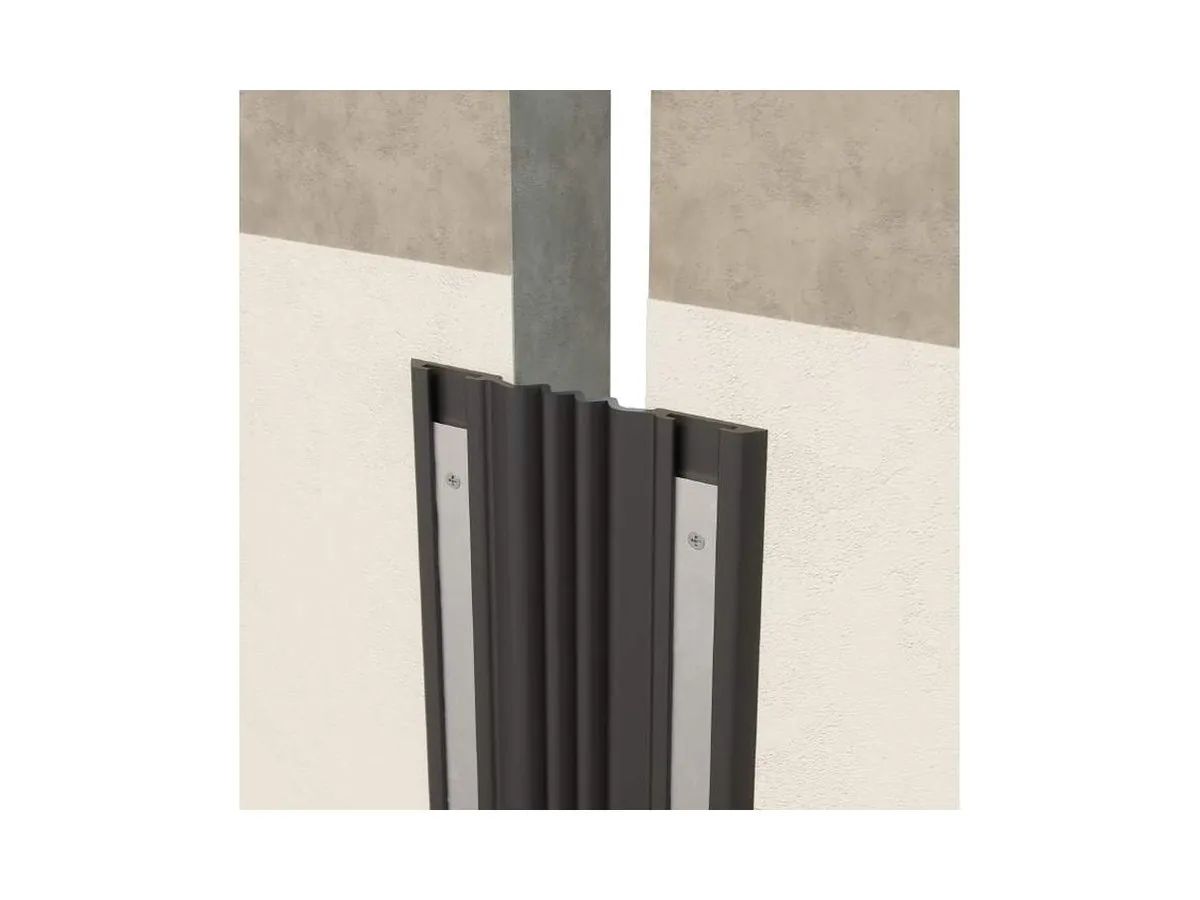

The NEXUS range covers floor, wall, ceiling and roof conditions in aluminium, stainless steel and elastomeric profiles, with fire-rated and waterproof barrier configurations available for each.
18 products from catalogue KAVITY-02 — material, finish, sizes and codes as published. Each card links to its catalogue page.

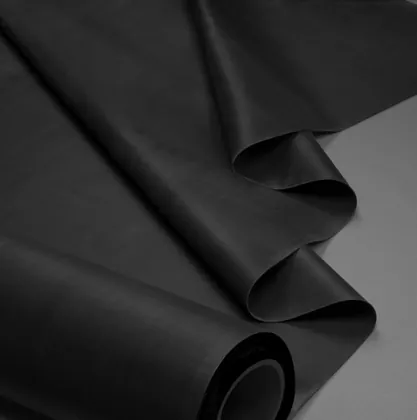

Non-reinforced, fully extruded cured EPDM membrane installed below expansion joint covers in floors and walls.

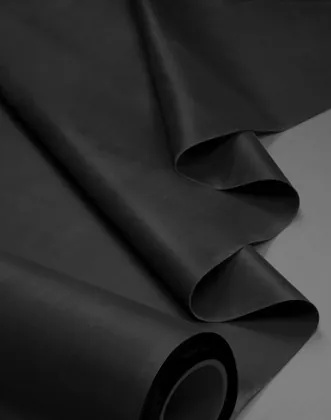

High-density polyethylene membrane, 1.5 mm thick, used as a vapour barrier in floor and wall expansion joints.

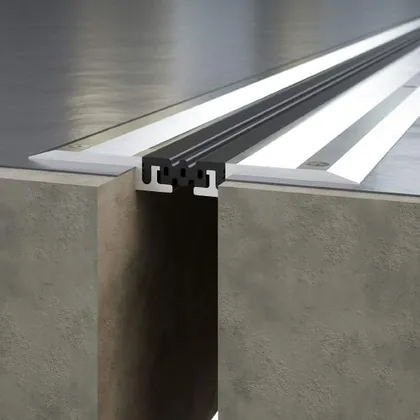

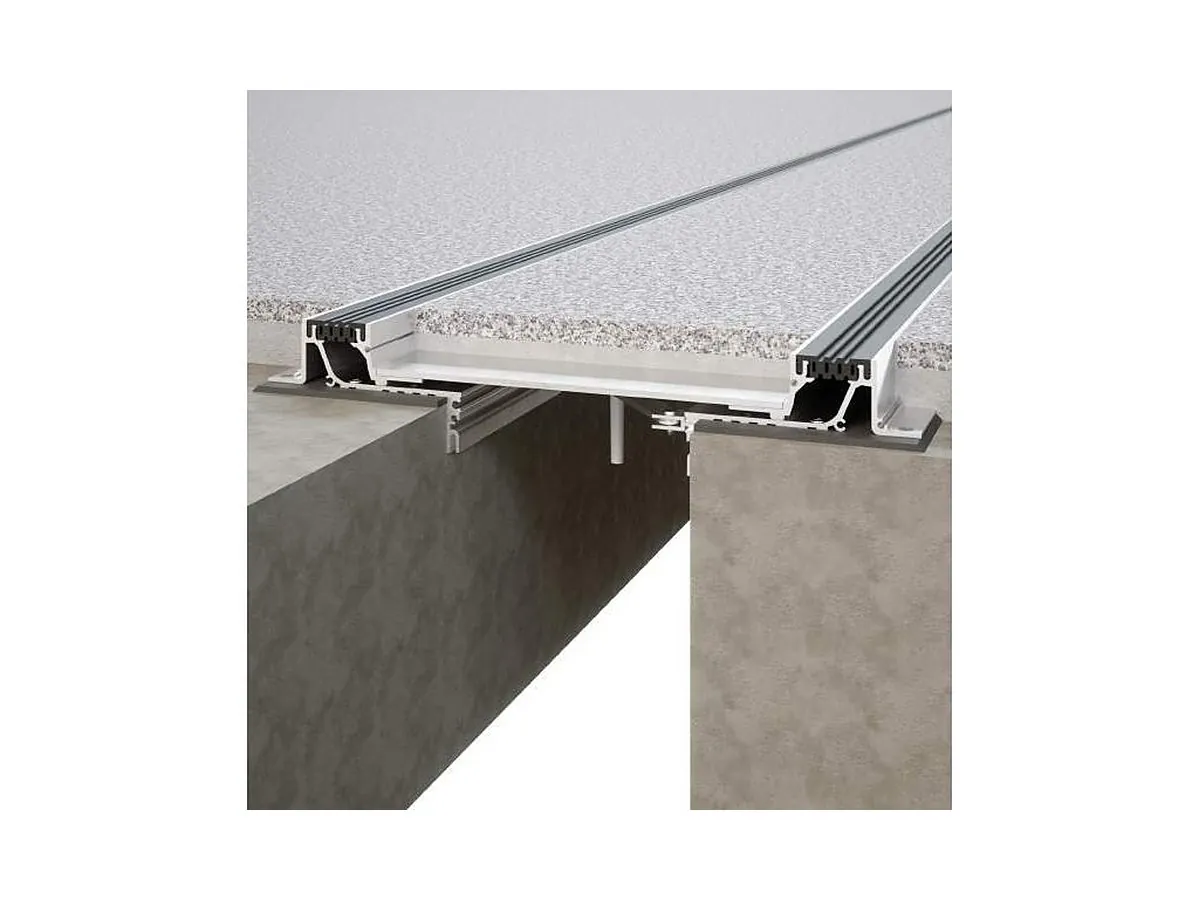

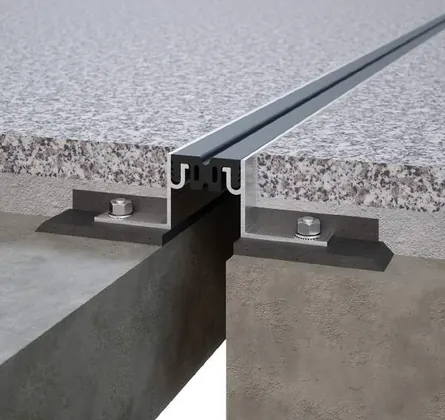

Floor expansion joint cover of aluminium strips with rubber insert for 25–35 mm joints, floor to floor or floor to wall.

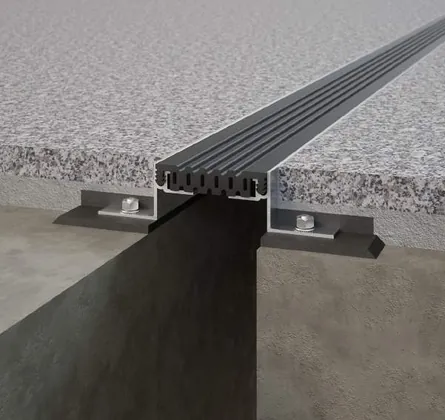

Floor expansion joint cover of aluminium strips with rubber insert for 50–75 mm joints, floor to floor or floor to wall.
Floor expansion joint cover of aluminium strips with rubber insert, 40 mm high, for 50–75 mm joints.
Surface-mounted aluminium expansion joint cover with rubber insert for floors, walls and ceilings, 25–35 mm joints.

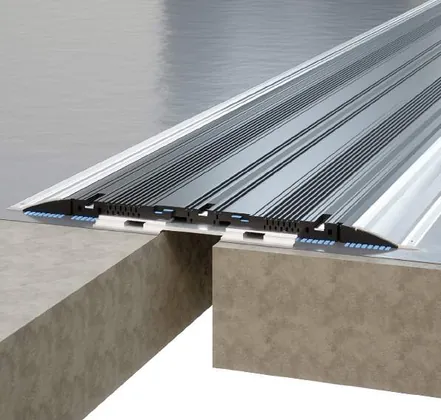

Low-profile surface-mounted floor expansion joint of aluminium strips with rubber insert for 50 mm joints.

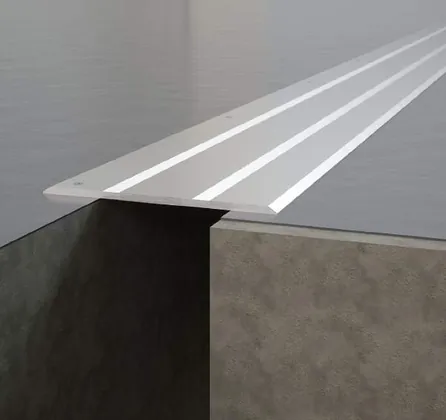

Surface-mounted floor expansion joint with solid brushed aluminium cover plate for 25–200 mm gaps.

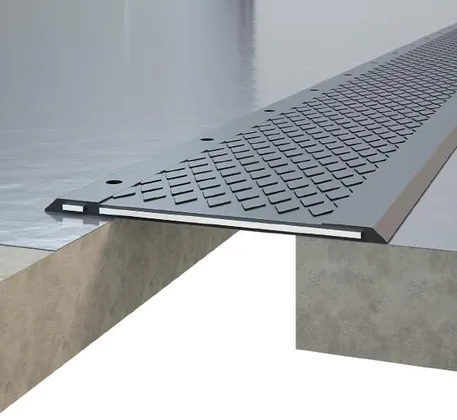

Floor expansion joint cover with textured black rubber surface on a steel plate for 50–200 mm gaps.

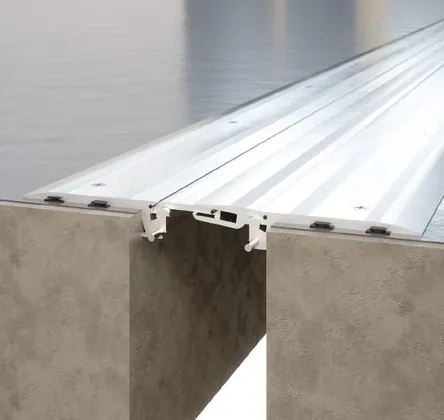

Solid aluminium expansion joint cover for 20–65 mm joints in floors and walls.

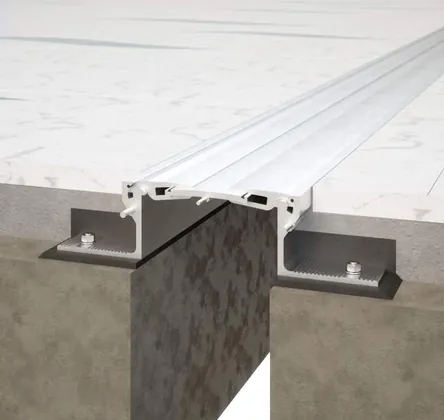

Floor expansion joint with solid aluminium cover plate for 50–200 mm joints, floor to floor or floor to wall.
Solid aluminium floor expansion joint, 60 mm high, for joints up to 60 mm, floor to floor or floor to wall.
Solid aluminium floor expansion joint, 60 mm high, for 100–150 mm gaps, floor to floor or floor to wall.
Low-profile solid aluminium floor expansion joint, 6 mm high, for 100–200 mm joints.
Solid aluminium floor expansion joint cover, 6–7 mm high, for 50–200 mm gaps.

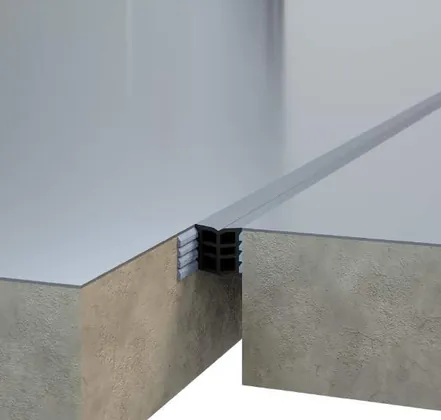

Black rubber seal expansion joint for 10–15 mm gaps in floors and walls.

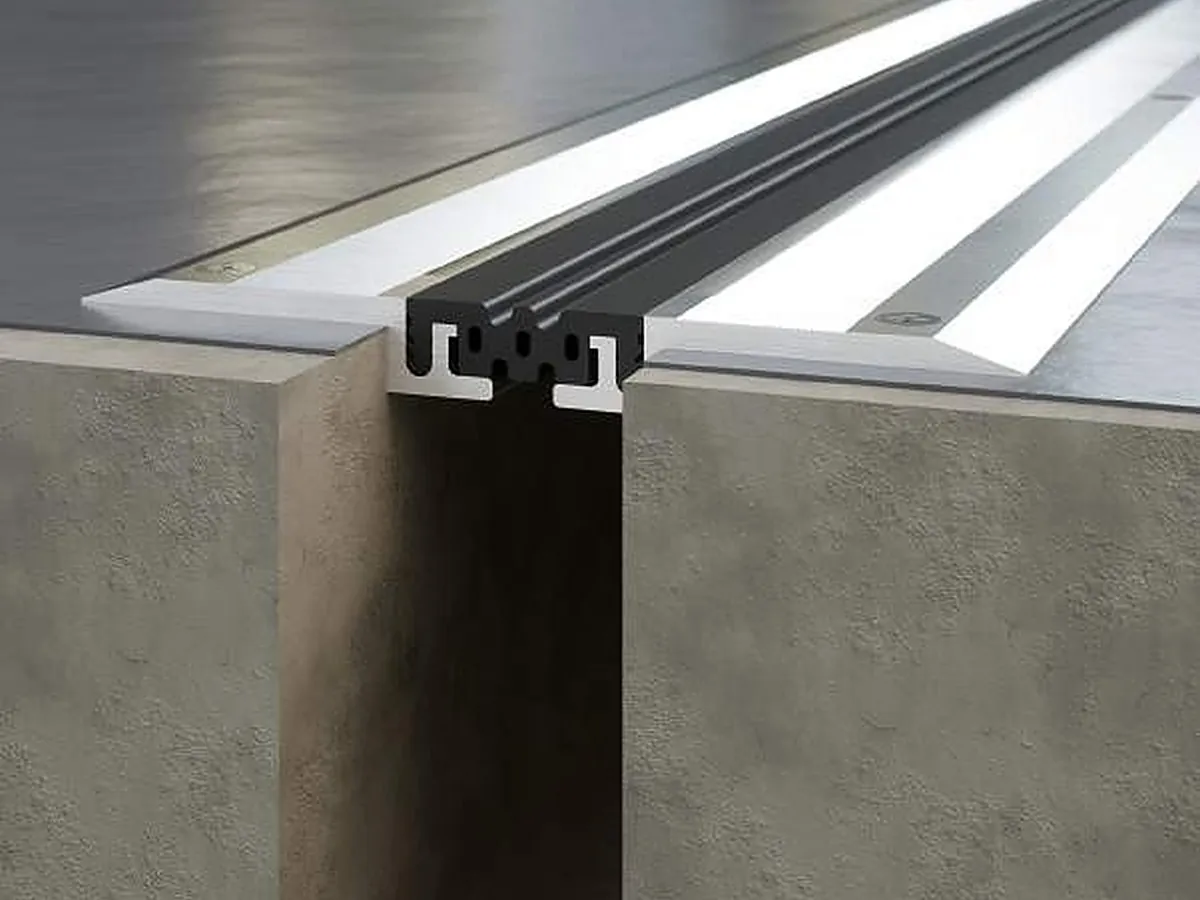

Floor expansion joint of aluminium strips with black rubber insert, 28 mm high, for 100–250 mm joints.
Floor expansion joint of aluminium strips with black rubber insert, 28 mm high, for 100–250 mm joints.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
