حوامل الكوابل (كيبل تري) وملحقاتها

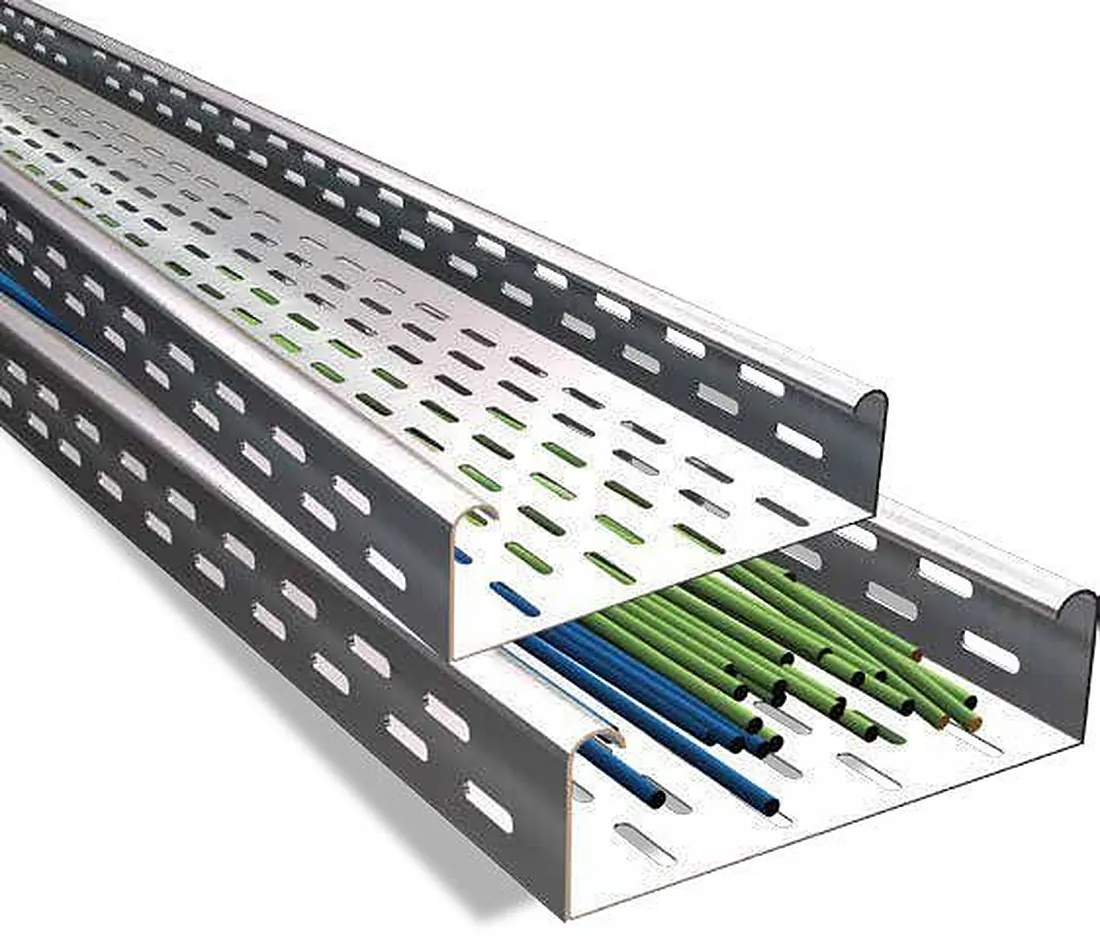

Perforated and solid cable trays with the full run of bends, tees, reducers and covers, manufactured to IEC 61537.
Trays are supplied in four duty classes — light, medium, heavy and very heavy — each in its own gauge (1.0, 1.2, 1.5 and 2.0 mm), so the section is matched to the cable load and the support spacing rather than over-specified across the whole building.
Every tray is backed by a published load table giving the safe working load at each span. The range covers horizontal and vertical bends, tees, crosses, reducers, covers, couplers, earth continuity straps and the full support range.
| Duty class | Code | Thickness | Side height | Width range |
|---|---|---|---|---|
| Light duty | LCT 50 | 1.0 mm | 50 mm | 50 – 300 mm |
| Medium duty | MCT 50 · 75 · 100 | 1.2 mm | 50 · 75 · 100 mm | 50 – 600 mm |
| Heavy duty | HCT 50 · 75 · 100 | 1.5 mm | 50 · 75 · 100 mm | 50 – 900 mm |
| Very heavy duty | VCT 50 · 75 · 100 | 2.0 mm | 50 · 75 · 100 mm | 50 – 1000 mm |
Order code: LCT50 – side height (h) – width (w) – thickness – side type.

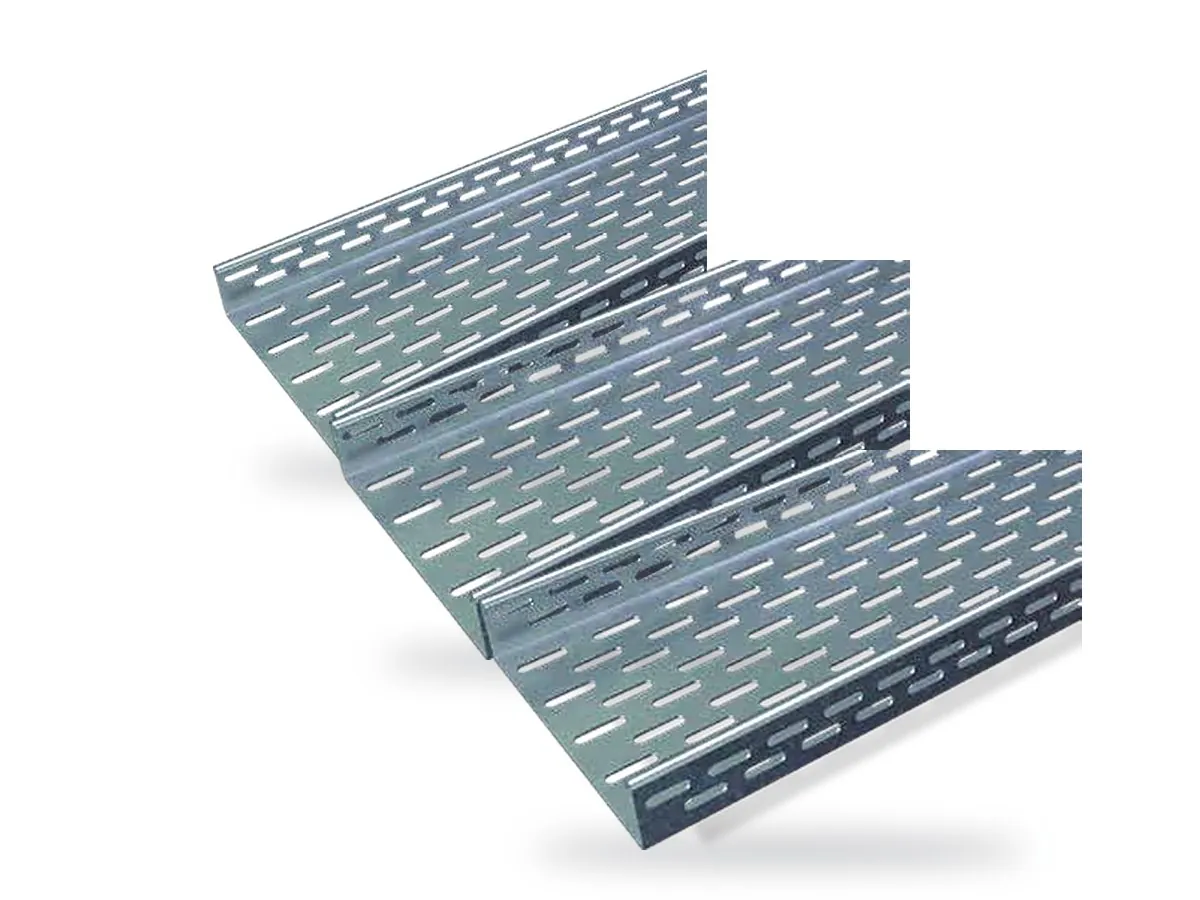

Straight lengths in light, medium, heavy and very heavy duty — perforated or solid bottom, in four thicknesses.
View →

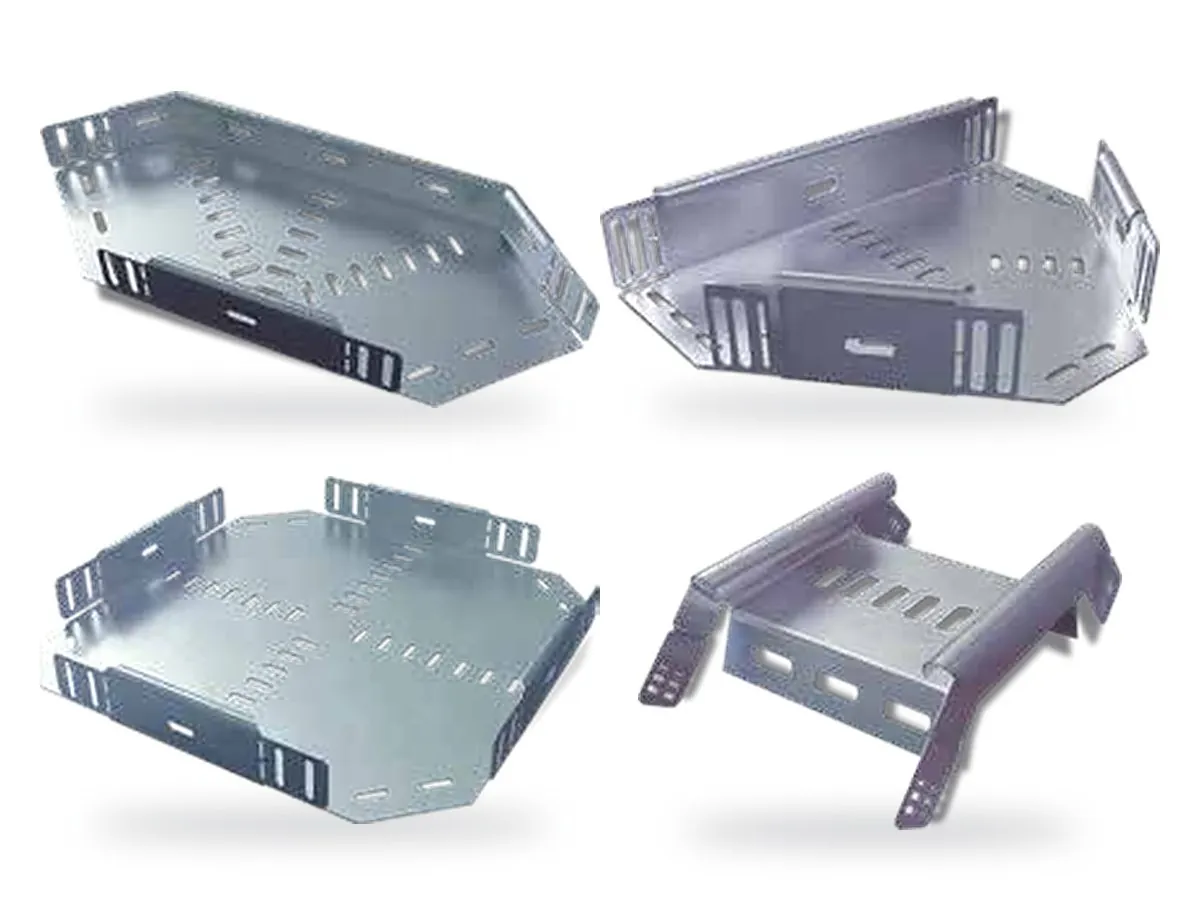

Horizontal and vertical bends, tees, crosses and reducers — factory formed so the bend radius protects the cable.
View →

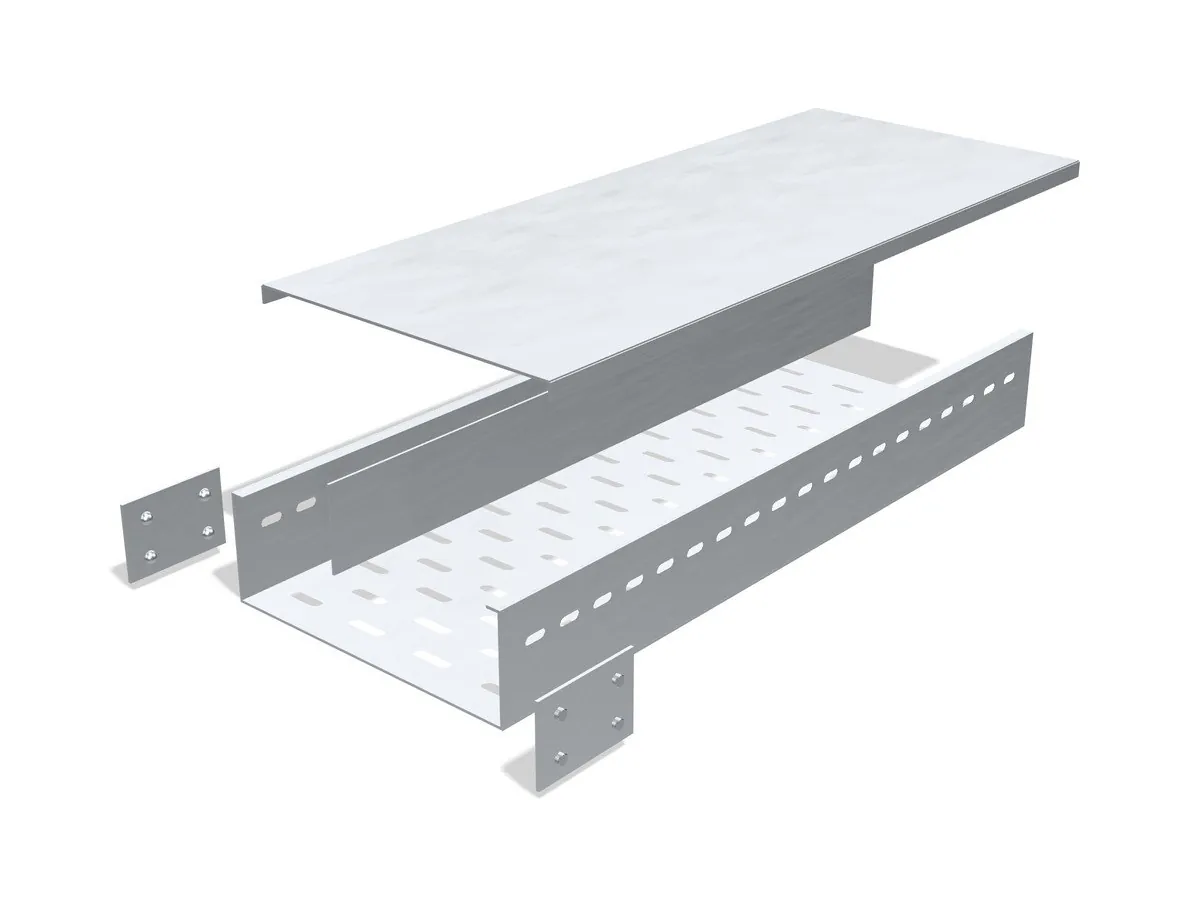

Covers, couplers, earth continuity straps and end caps that complete the installation.
View →

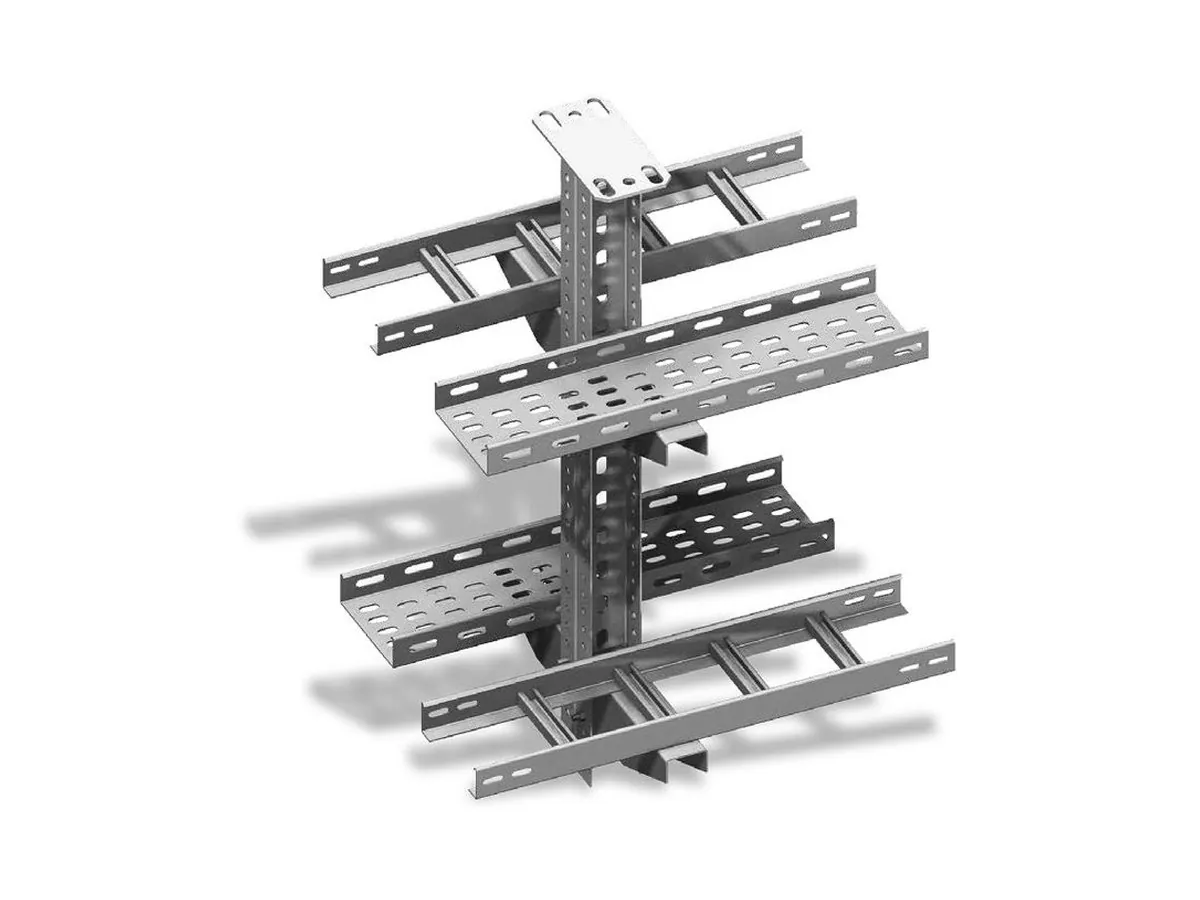

Cantilever arms, trapeze hangers, wall brackets and channel — the support spacing follows the published load table.
View →Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
