Welded 4 mm steel-wire mesh lengths in four side heights. Bends and tees are cut and formed on site — no factory fitting needed.

Request a technical proposal Download catalogue PDF · 4.2 MB

Runs & fittings

Because the tray is an open wire mesh, a bend, tee or reducer is made by cutting selected wires and folding the mesh, then joining it with standard couplers. The run follows the route as built, not only as drawn, and a change on site does not wait for a factory fitting.

The open mesh also lets air circulate around the cables and stops dust building up, and lets an inspector see the whole installation without lifting a cover.

Full technical catalogue Wire sizes, widths, fittings and supports · PDF, 4.2 MB

Download PDF

Product range

Every product in this range

9 products from catalogue KAVITY-06 — material, finish, sizes and codes as published. Each card links to its catalogue page.

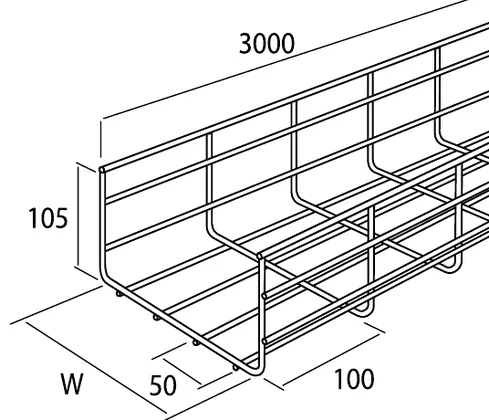

Basket tray

Runs & fittings

Basket tray

Wire mesh cable tray of high-strength welded 4 mm steel wires, allowing continuous airflow and fast, largely tool-free connections.

Material: Stainless steel or hot-dip galvanised steel to DIN EN ISO 1461
Wire: Ø 4 mm
Sizes: H 55/80/105/150 mm · W 50–600 mm · L 3000 mm
Standards: IEC 61537, NEMA VE 1 / VE 2
Codes: BT 55, BT 80, BT 105, BT 150

Catalogue p. 21

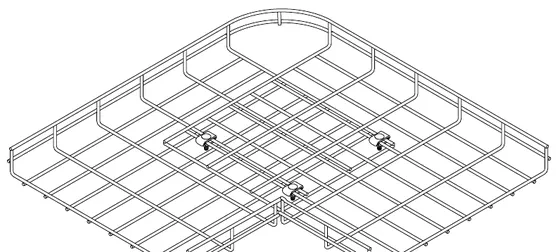

Short radius 90° horizontal bend

Bends, tees & reducers

Short radius 90° horizontal bend

Short radius 90° horizontal bend formed from basket tray.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M105

Catalogue p. 25

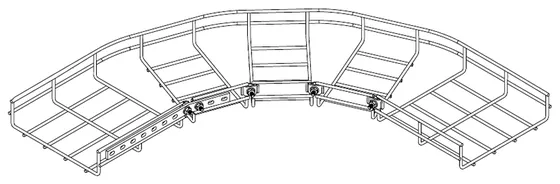

Long radius 90° horizontal bend

Bends, tees & reducers

Long radius 90° horizontal bend

Long radius 90° horizontal bend formed from basket tray.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M106

Catalogue p. 25

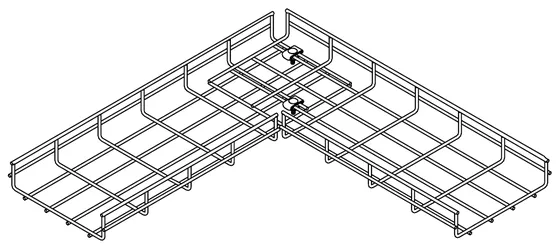

Straight section bend

Bends, tees & reducers

Straight section bend

Horizontal 90° bend made with straight basket tray sections.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M107

Catalogue p. 25

Outside / inside bend

Bends, tees & reducers

Outside / inside bend

Vertical outside or inside bend for changing basket tray elevation.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M108

Catalogue p. 25

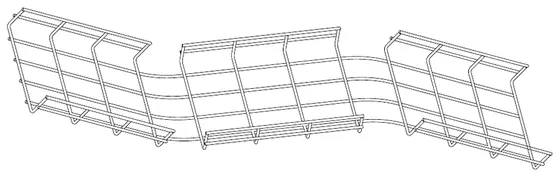

Vertical inside bend

Bends, tees & reducers

Vertical inside bend

Vertical inside bend for changing basket tray elevation.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M108

Catalogue p. 25

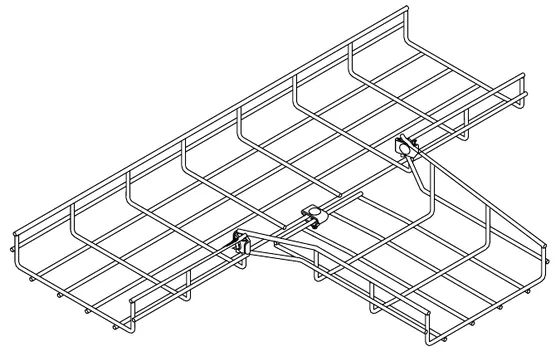

Horizontal tee (cross)

Bends, tees & reducers

Horizontal tee (cross)

Horizontal tee or cross junction formed from basket tray.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M109

Catalogue p. 25

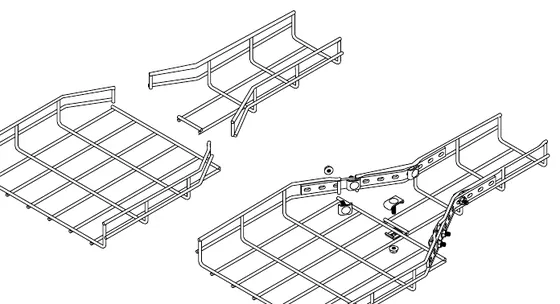

Central reducer

Bends, tees & reducers

Central reducer

Central reducer joining basket trays of different widths.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M110

Catalogue p. 25

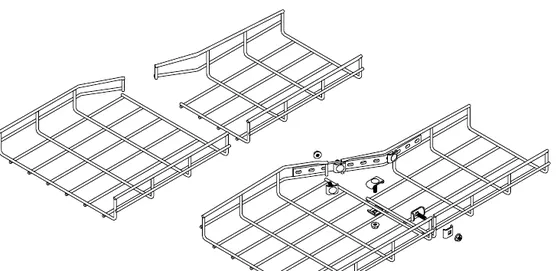

Left and right reducer

Bends, tees & reducers

Left and right reducer

Left or right hand reducer joining basket trays of different widths.

Material: Steel, hot-dip galvanised to DIN EN ISO 1461
Sizes: H 55/80/105/150 mm · W 50–600 mm
Codes: M111

Catalogue p. 25
