القطع الخاصة لحوامل الكوابل
Horizontal and vertical bends, tees, crosses and reducers — factory formed so the bend radius protects the cable.
Every fitting is formed to the same profile, width and side height as the straight run, so cables are not forced around a tight corner and joints line up without site modification.
Every tray is backed by a published load table giving the safe working load at each span. The range covers horizontal and vertical bends, tees, crosses, reducers, covers, couplers, earth continuity straps and the full support range.
11 products from catalogue KAVITY-04 — material, finish, sizes and codes as published. Each card links to its catalogue page.

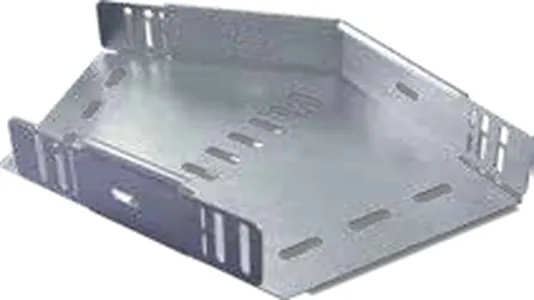

Horizontal 45° bend fitting for changing the direction of a perforated cable tray run.

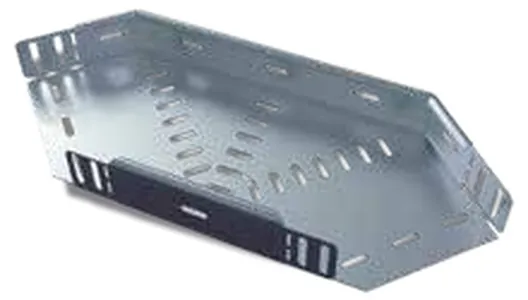

Horizontal 90° bend fitting for turning a perforated cable tray run at a right angle.

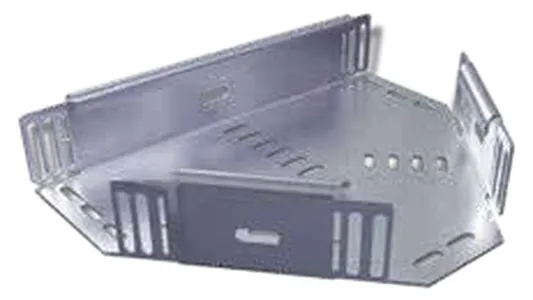

Three-way tee fitting for branching a cable tray run in the horizontal plane.

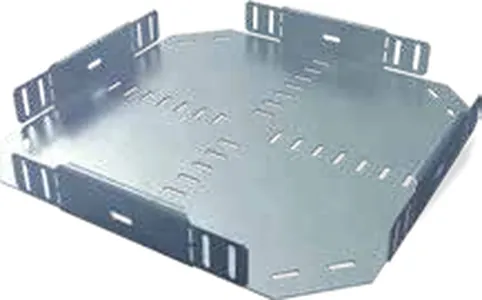

Four-way cross fitting joining two cable tray runs in the horizontal plane.
Vertical 45° outside riser bend for taking a cable tray run up or down.
Vertical 45° inside riser bend for changing cable tray elevation.

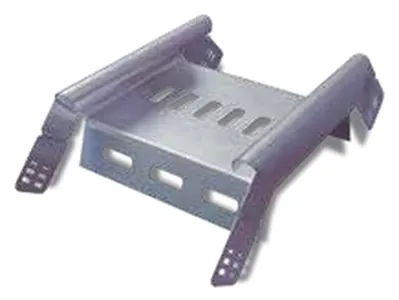

Vertical 90° outside riser bend for turning a cable tray run from horizontal to vertical.

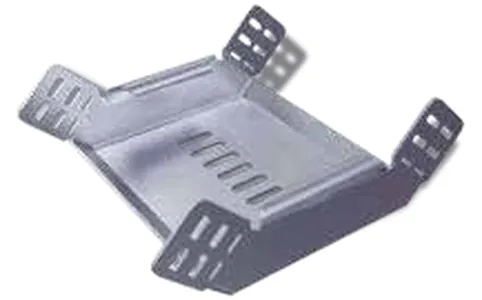

Vertical 90° inside riser bend for turning a cable tray run from horizontal to vertical.

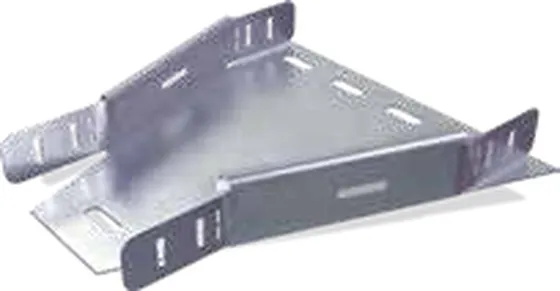

Reducer fitting joining cable trays of different widths within one run.

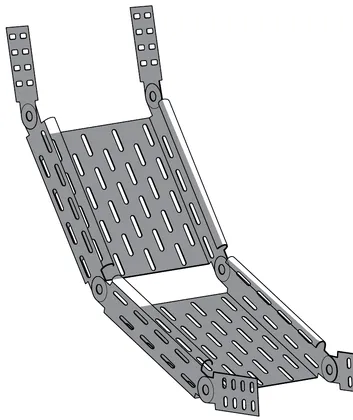

Articulated riser that adjusts to the required vertical angle between cable tray levels.
Riser made to a specified angle, ordered with the adjustable riser code plus the required angle.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
