Omega brackets

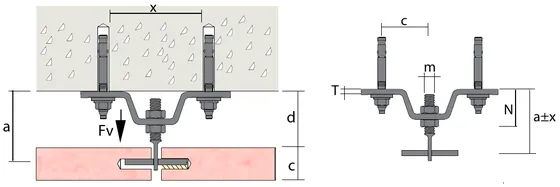

Omega bracket (ST-700-1100)
Standard or serrated omega bracket designed for fastening natural stone panels beneath a concrete floor slab, adjustable in two directions.
- Material
- SS304, SS316, SS316L, SS316Ti, S235JR-MG, S235JR-HDG
- Sizes
- W 35–60 mm · offset 70–120 mm
- Thickness
- 3–5 mm
- Flat head bolt / pin
- M8–M12 (A2-70/A4-70) · Ø 4–6 mm
- Load per bracket
- max dead load 0.16–0.55 kN · wind load ±0.22–0.77 kN
- Codes
- 700 1100-W.T.N
