أنظمة الدعامات من FRP والفولاذ

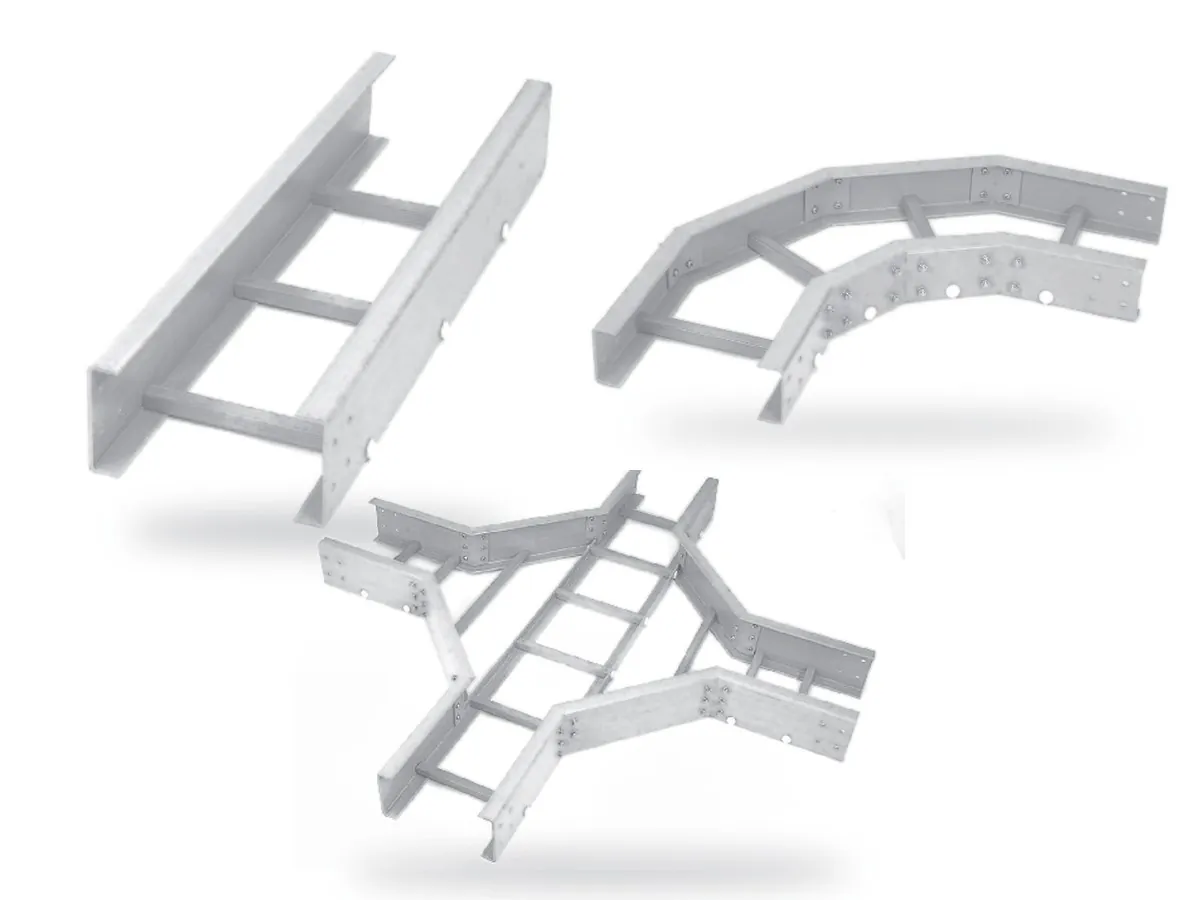

FRP and steel strut channel, cantilever arms, U- and I-supports, plates and clamps for carrying FRP cable trays and ladders.
Pultruded FRP C-channel (FCH 220 and FCH 420) carries cable supports in corrosive and salt-laden environments, with stainless steel fittings. Steel framing channel, cantilever arms and slotted U- and I-supports with head plates complete the support system where steel is acceptable.
Load tables for the channels and cantilever arms are given in the catalogue for each span and arm length.
15 products from catalogue KAVITY-08 — material, finish, sizes and codes as published. Each card links to its catalogue page.

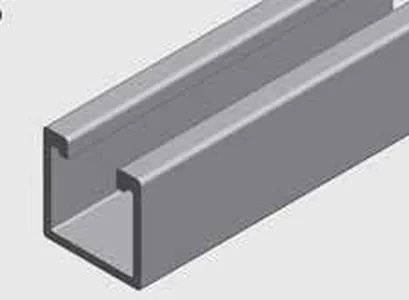

Pultruded FRP 41 × 21 mm strut channel for cable supports in corrosive, salt-laden environments; SS304/316 fittings.

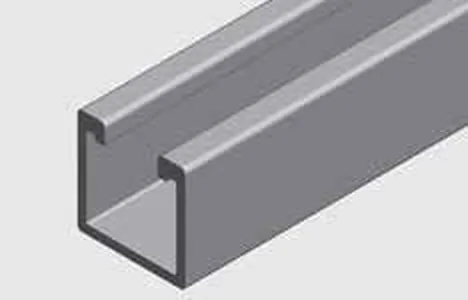

Pultruded FRP 41 × 41 mm strut channel for cable supports in corrosive environments; SS304/316 fittings.

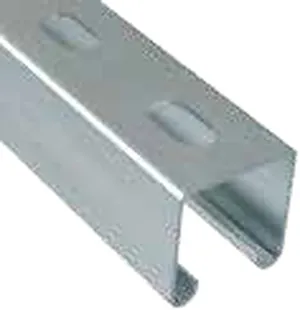

Cold-formed steel strut channel with continuous slot, in stainless steel or hot-dip galvanised, for supporting FRP systems.

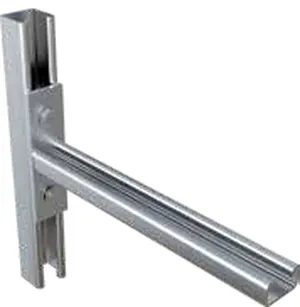

Channel cantilever arm with base plate for wall or channel-frame mounting of cable ladders and trays.

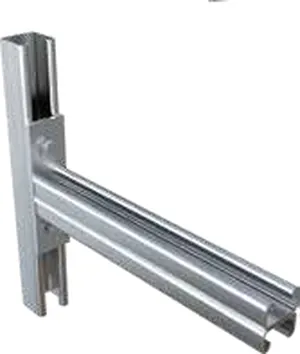

Back-to-back channel cantilever arm with base plate for heavier cable ladder and tray loads.
Slotted U-profile support with welded-on 200 × 100 × 5 mm head plate for suspending cable trays and ladders.

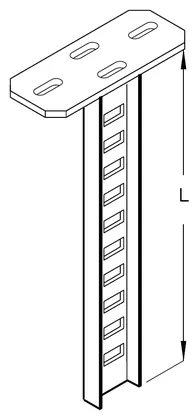

Slotted I-profile support with welded-on 200 × 100 × 5 mm head plate.

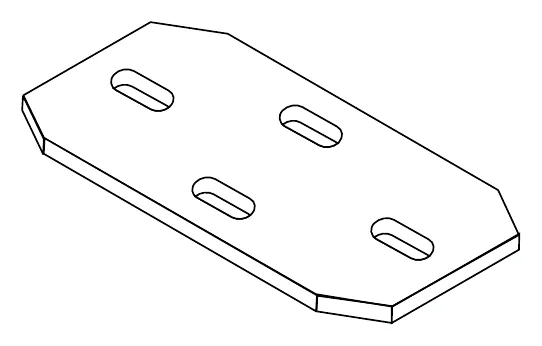

Slotted head plate for ceiling fixing of support profiles.

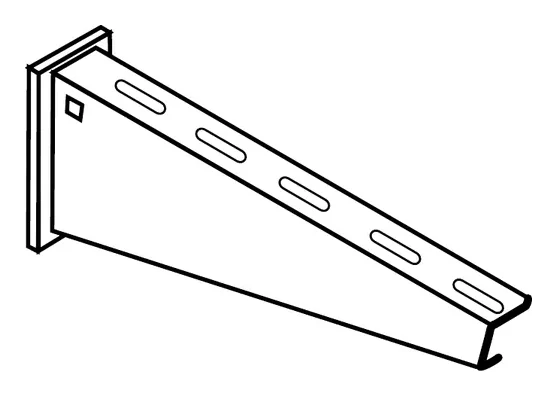

Slotted wall bracket for U-supports (3200) or I-supports (3250).

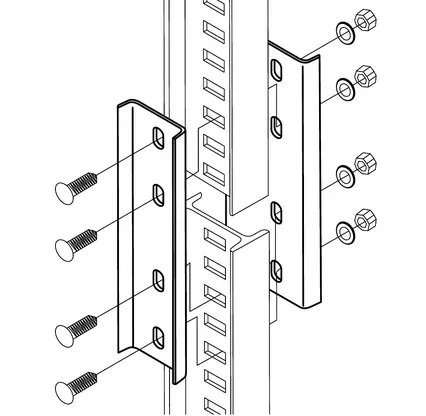

Bolted connectors for joining support profiles.
Slotted clamping plates for connecting profiles in the support system.

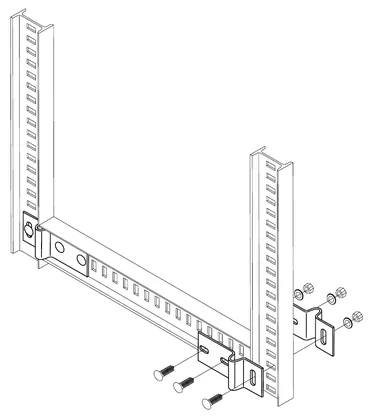

Support plates for connecting components to the slotted support profiles.

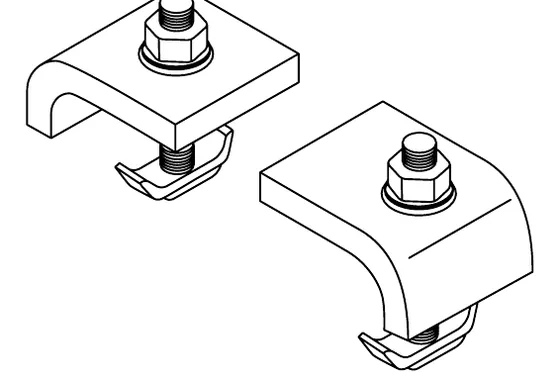

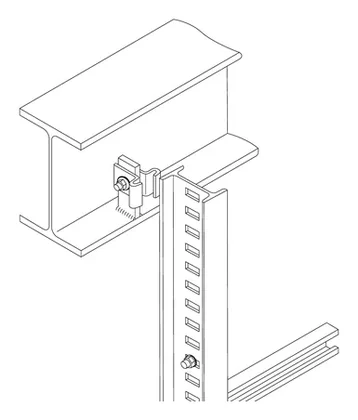

Clamps for attaching support profiles to steel beam flanges.
Clamping angles for fixing components in the support system.
Slotted angle profile for support frameworks.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
