المرابط والعلّاقات (كلامبات)
Rubber-lined and plain clamps from ½ in (DN15) service pipe to 6 in pipework, each with a rated load capacity.
Clamp selection follows the pipe outside diameter, the pipe material and whether acoustic isolation is needed. EPDM-lined clamps are the default for water and heating pipework; plain clamps suit runs where isolation is not required. Clevis and band hangers take pipework hung from threaded rod; offset clamps reach 8 in.
Every size carries a rated load, and the range runs from a single ½ in service pipe up to 6 in pipework, with matching threaded rod, anchors and beam clamps.
16 products from catalogue KAVITY-10 — material, finish, sizes and codes as published. Each card links to its catalogue page.
Split pipe clamp with multifunction combination-head screw and retaining washer, for water, waste, gas, heating and process pipework.
Economy split pipe clamp with M6 cross-head screws and M8 standard nut, supplied unassembled.

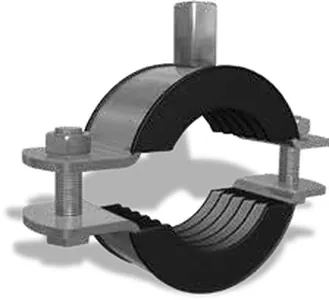

Split pipe clamp lined with EPDM rubber insulation for sound reduction to DIN 4109, with long M8/M10 nut.

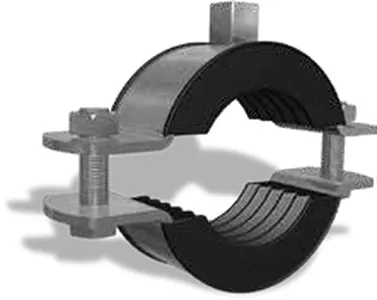

Split pipe clamp lined with EPDM rubber insulation for sound reduction to DIN 4109, with standard M8 nut.

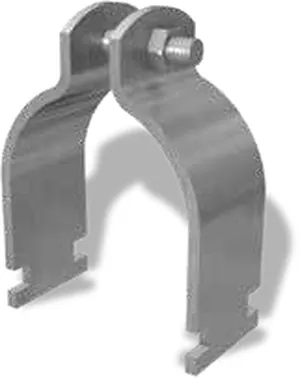

Omega clamp for hanging rigid or EMT conduit from beam clamps, available with or without closure bolt.

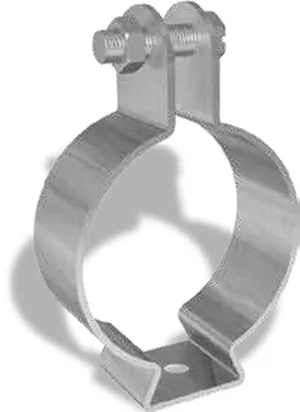

Clamp for mounting rigid or EMT conduit and steel pipes on C-channels.

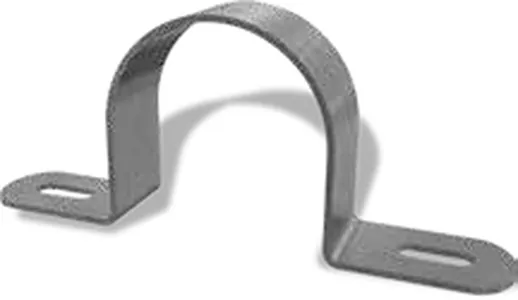

Two-hole strap for supporting pipe runs on walls and on C-channels.

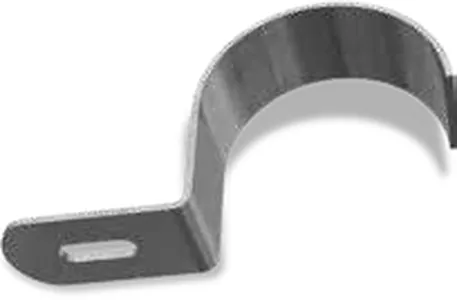

Snap-type one-hole strap for conduits, cable and steel pipes on walls, beam sides or C-channels; not for horizontal ceiling use.

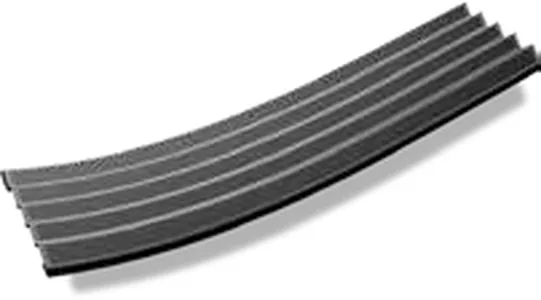

EPDM rubber noise-suppression strip for insertion in clamps and hangers, giving about 20 dB(A) noise suppression.

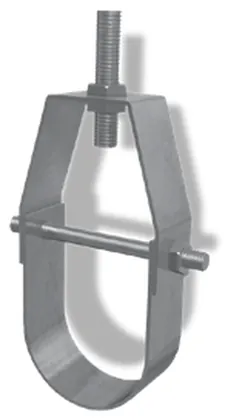

Clevis hanger with upper and lower yoke for suspending pipes from a hanger rod (rod not included).

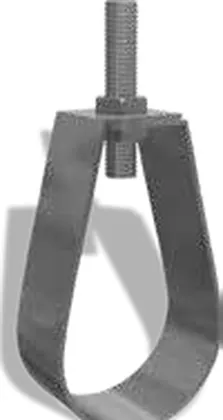

Band hanger with knurled nut for suspending non-insulated stationary pipelines; swivel versions with rubber gaskets available.

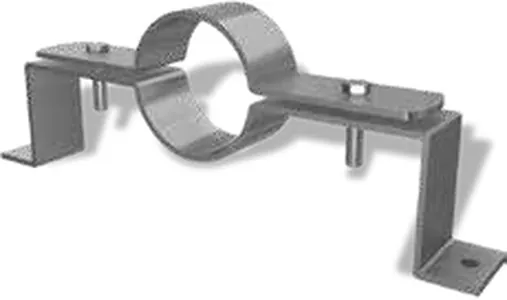

Offset clamp for supporting and stabilising vertical pipe runs.

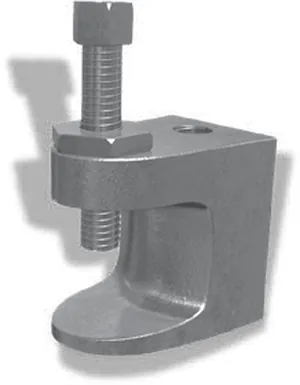

Malleable cast-iron beam C-clamp with cup-point screw and locknut, attaching hanger rods to steel without drilling or welding.

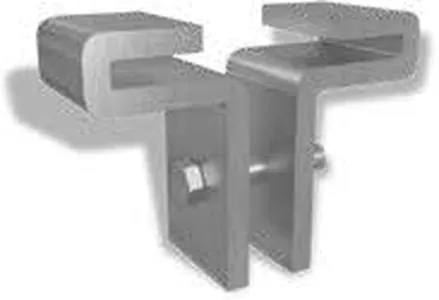

Open steel beam clamp for attaching hanger rods to the top or bottom flange of a beam; bolt and nut included.

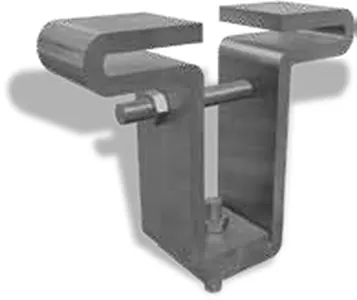

Closed steel beam clamp for attaching hanger rods to the top or bottom flange of a beam; bolt and nut included.

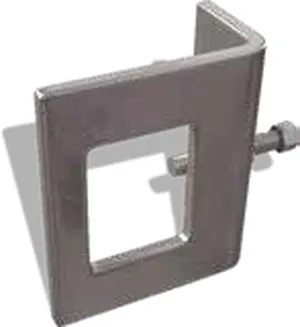

Window-type clamp for attaching a C-channel to the top or bottom flange of a beam.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
