الفواصل المقاومة للحريق والفواصل الزلزالية
Seismic profiles that accept multi-directional movement, and the NFB fire barrier rated 2 hours (UL 2079) beneath the cover.
Where a movement joint passes through a fire-rated wall or floor, it has to maintain the rating of that element. The fire barrier fills the gap beneath the cover and is selected for the required rating and joint width; seismic profiles are designed to open, close and shear without losing the cover.
The NEXUS range covers floor, wall, ceiling and roof conditions in aluminium, stainless steel and elastomeric profiles, with fire-rated and waterproof barrier configurations available for each.
12 products from catalogue KAVITY-02 — material, finish, sizes and codes as published. Each card links to its catalogue page.

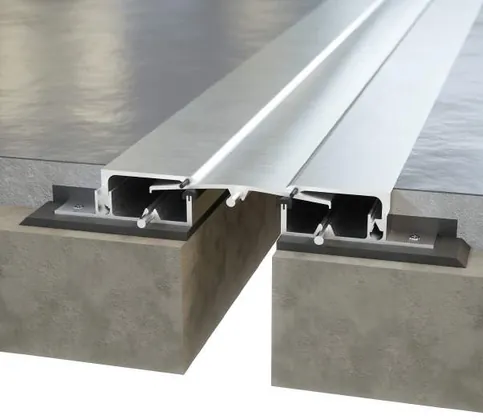

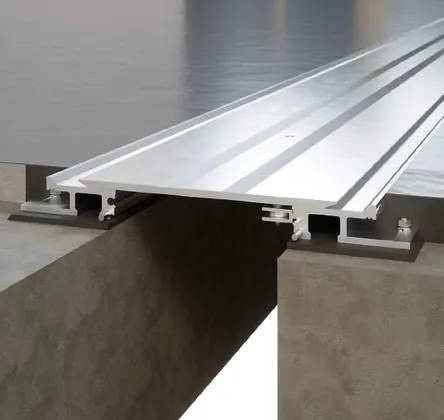

Seismic floor expansion joint with aluminium cover plate for 25–75 mm gaps, floor to floor or floor to wall.

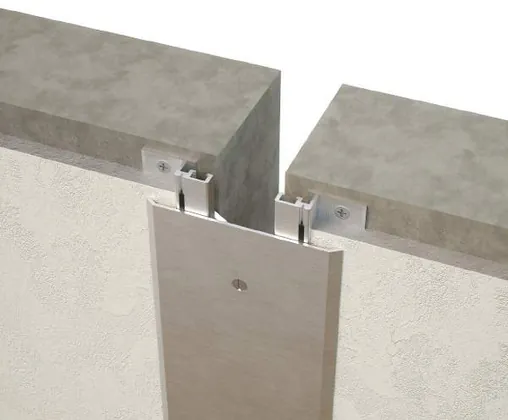

Seismic wall expansion joint with solid aluminium cover for 25–75 mm gaps, wall to wall or wall to corner.

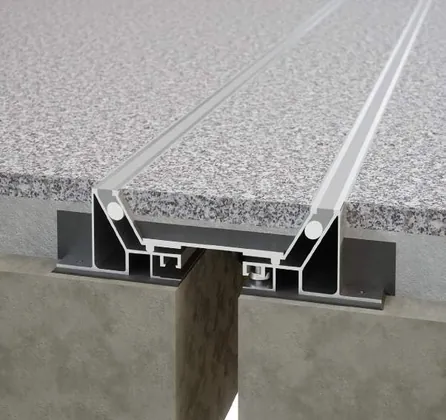

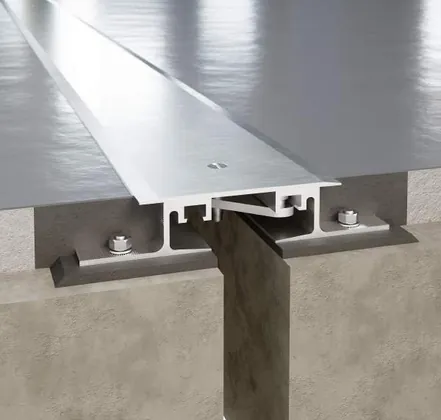

Seismic floor expansion joint with solid aluminium surface for 35–75 mm gaps, floor to floor or floor to wall.

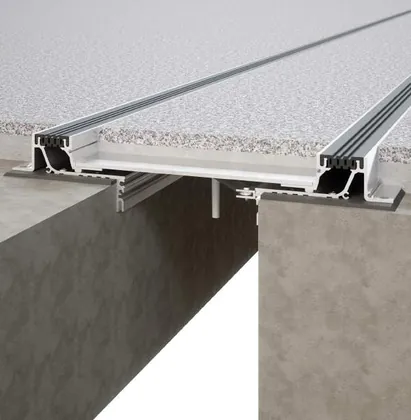

Seismic floor expansion joint of aluminium strips for large 100–400 mm joints, floor to floor or floor to wall.

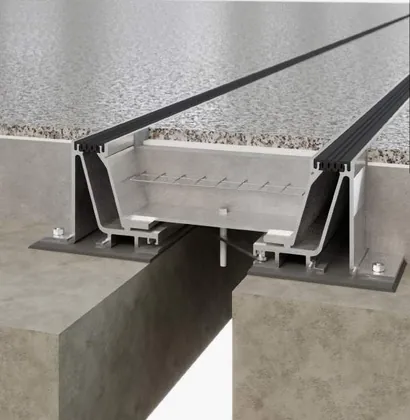

Deep seismic floor expansion joint, 160 mm high, with rubber seal and aluminium strips for 100–400 mm gaps.
Seismic floor expansion joint of aluminium strips with sealant, for 25–75 mm and 100–400 mm gaps.
Seismic floor expansion joint with solid brushed aluminium cover for 100–300 mm joints.

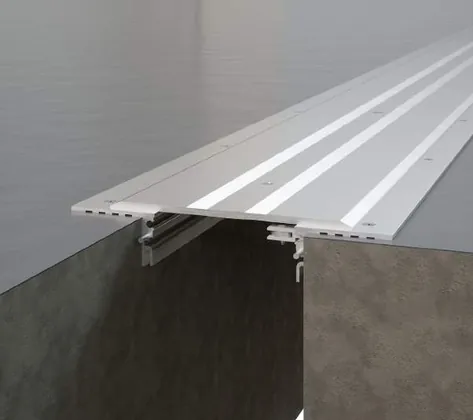

Solid aluminium floor expansion joint for 100–300 mm joints; the floor-to-wall version, UPSJ-C, is a seismic joint.

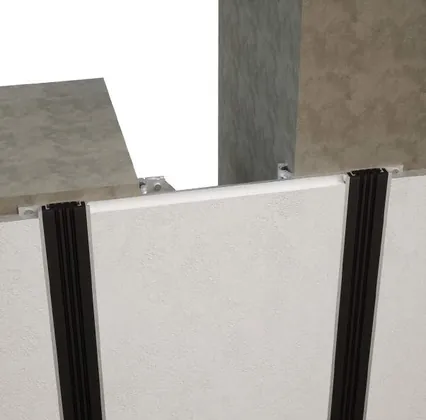

Seismic wall expansion joint of aluminium strips with rubber insert for 100–400 mm joints.

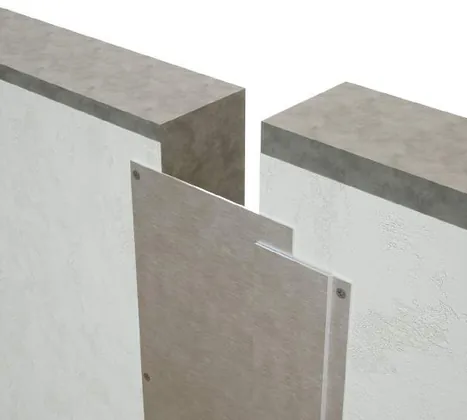

Seismic expansion joint with aluminium cover plate for walls and ceilings, 25–75 mm gaps.
Seismic aluminium cover plate expansion joint for large 100–400 mm gaps in ceilings and walls.

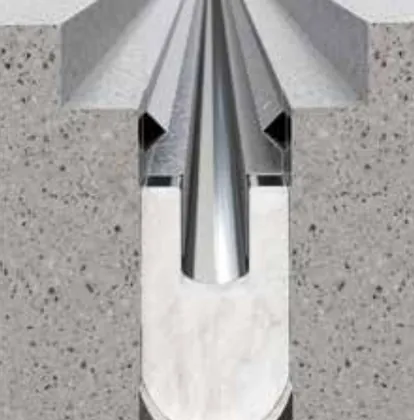

Fire barrier for horizontal floor-to-floor expansion joint gaps of 35–350 mm, 2-hour fire rated, with minimum 50% movement capacity.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
