القطع الخاصة لقنوات التثبيت
Flat plates, angle brackets, gussets, base plates and beam clamps that turn channel into a frame.
Fittings are pre-punched to the channel hole pattern and bolt on with channel nuts, so a frame, bracket or trapeze is assembled without cutting or welding. Gusseted fittings add stiffness at corners that carry heavier loads.
The full accessory range covers plain and angle fittings, gusseted brackets, base plates, threaded rod connectors, pipe clamps and beam clamps, all dimensionally matched to the channel profile.
24 products from catalogue KAVITY-09 — material, finish, sizes and codes as published. Each card links to its catalogue page.

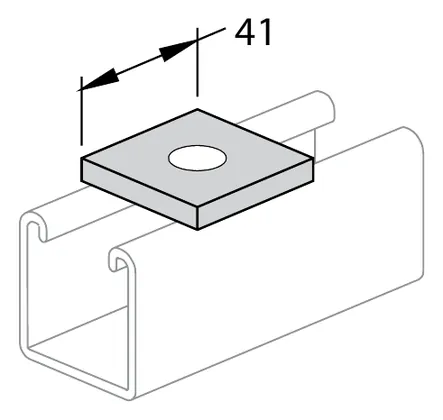

Flat square washer plate for channel connections.

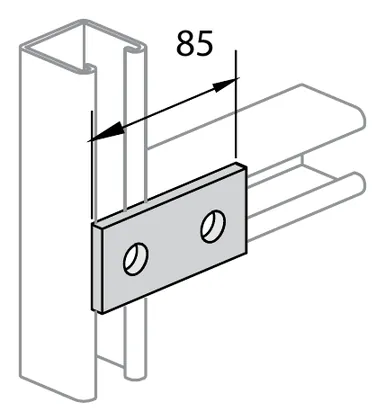

Flat multi-hole plate for joining channels end to end.

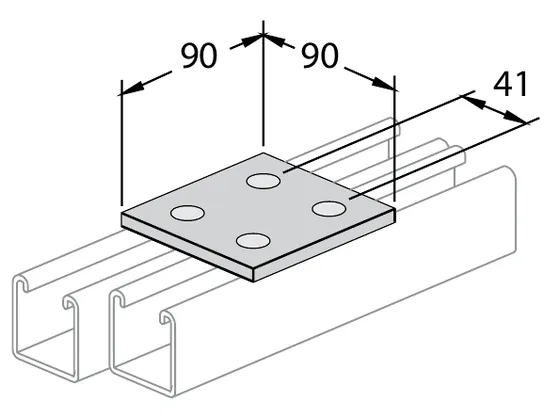

Four-hole square plate for splicing side-by-side channels.

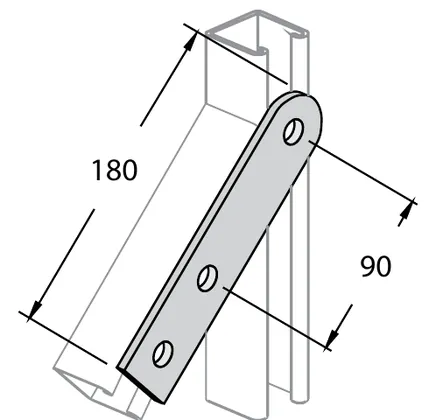

Flat and bent angle plates for connecting channels at angles and corners.

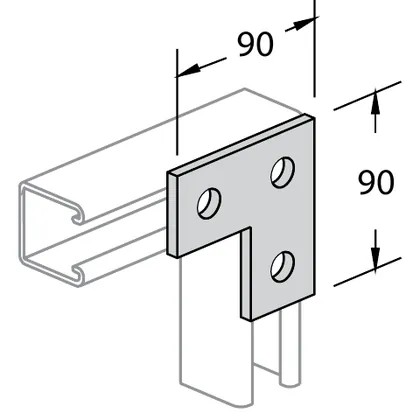

Flat L-shaped plate for corner connections between channels in the same plane.

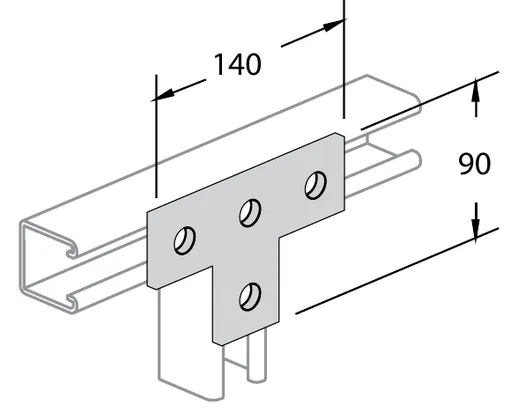

Flat T-shaped plate for tee connections between channels in the same plane.

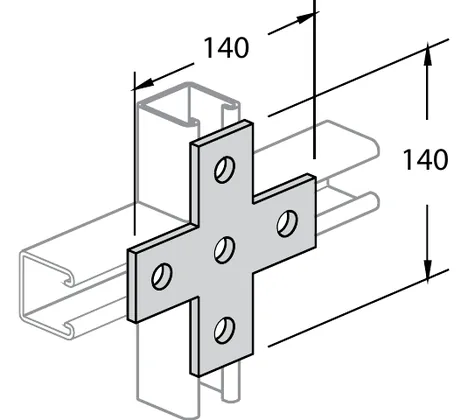

Flat cross-shaped plate for four-way channel connections.

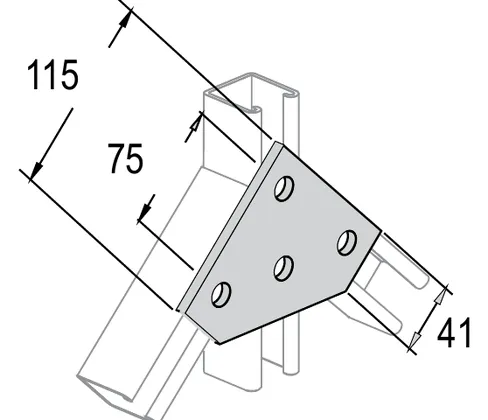

Flat plate for joining channels at 45°.

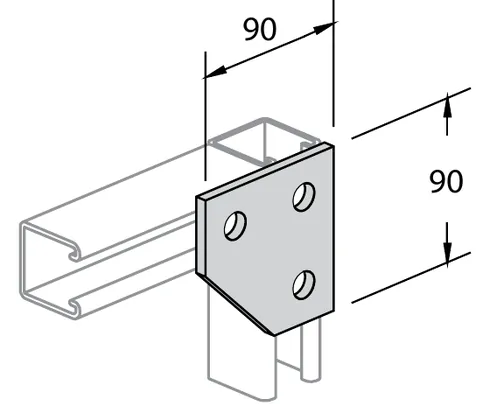

Flat multi-hole plate for joining channels at 90°.

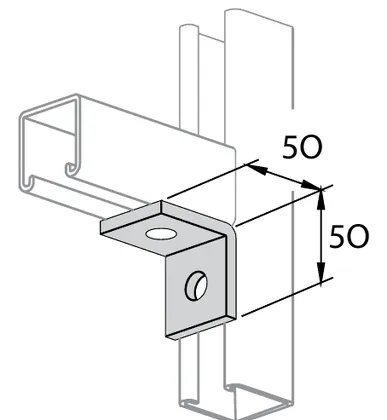

Bent 90° L-bracket for connecting channels at right angles.

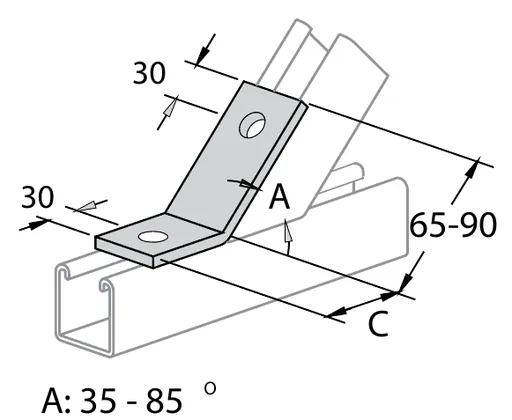

Bent bracket for joining channels at adjustable angles.

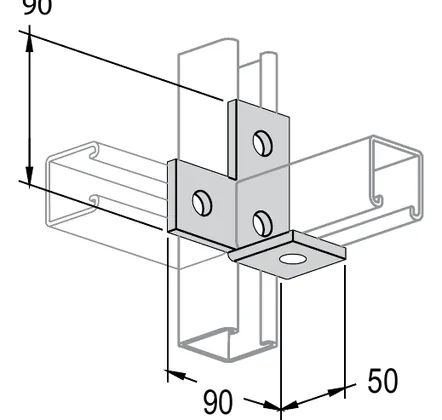

Left-hand T-corner bracket for three-way channel connections.
Right-hand T-corner bracket for three-way channel connections.
Centre T bracket for three-way channel connections.

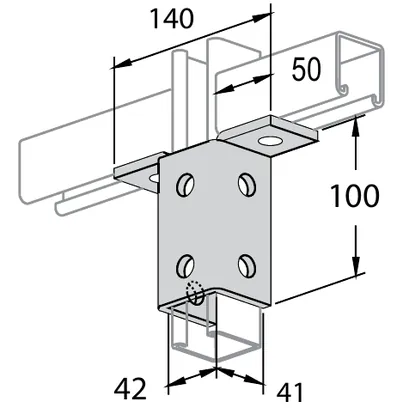

Double wing bracket for connecting a channel across another channel.

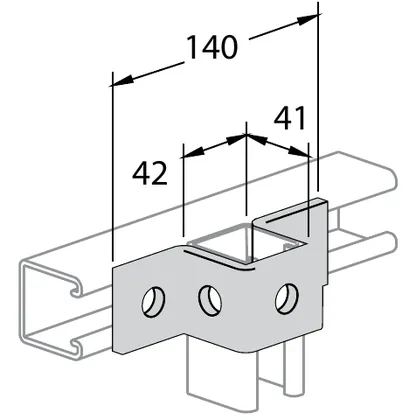

U-shaped bracket with wings for connecting channels across single or back-to-back channels.

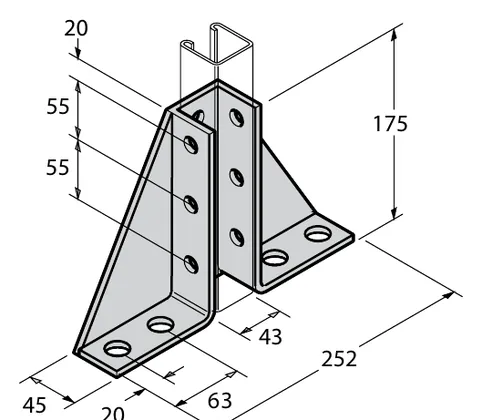

Gusseted base bracket for mounting a single channel.

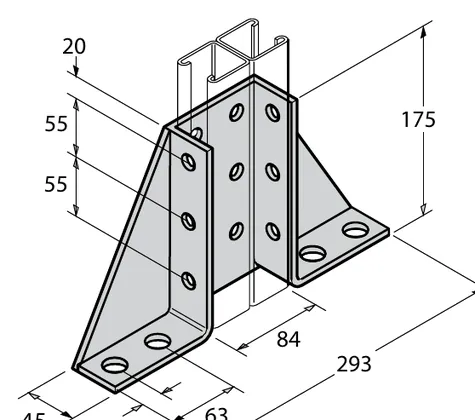

Gusseted base bracket for mounting a back-to-back channel.

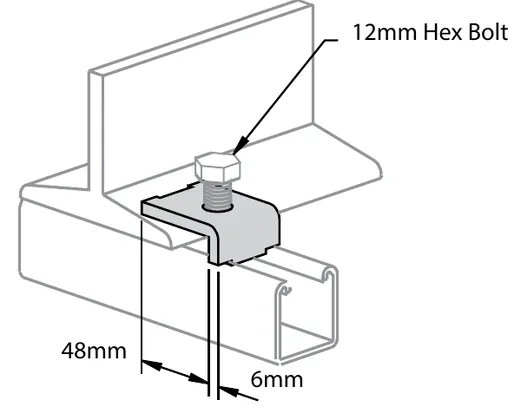

Channel-to-beam clamps with hex point bolts or U-bolts, fixing channels to steel flanges without drilling.

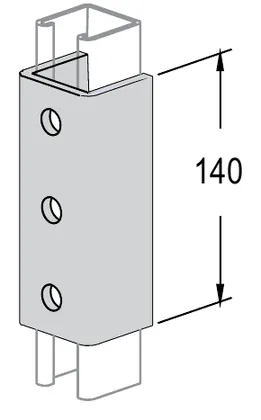

U-shaped bracket for joining channels end to end.

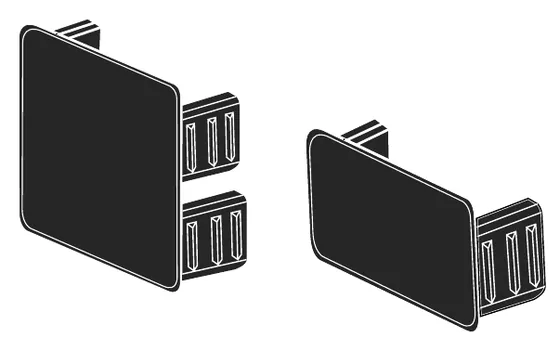

Plastic end caps for closing the open ends of channels.

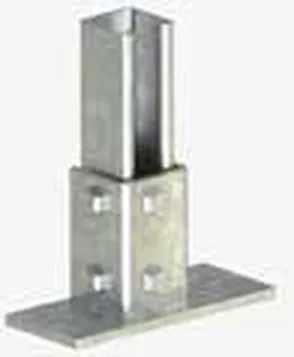

Post base plate welded to a single channel with single-fix anchorage.

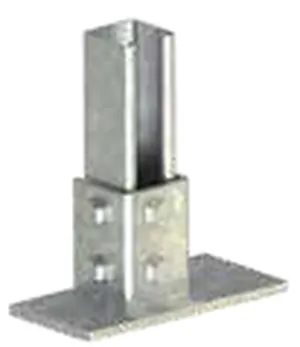

Post base plate for a single channel with two-hole or four-hole anchorage.

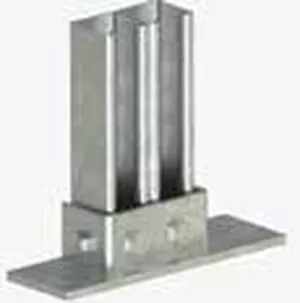

Post base plate for back-to-back double channel, with single or double fix.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
