Plain, slotted, back-to-back and toothed C-channel with cantilever arm brackets — the framing that pipe clamps and hangers are fixed to.

Request a technical proposal Download catalogue PDF · 4.3 MB
Support systems

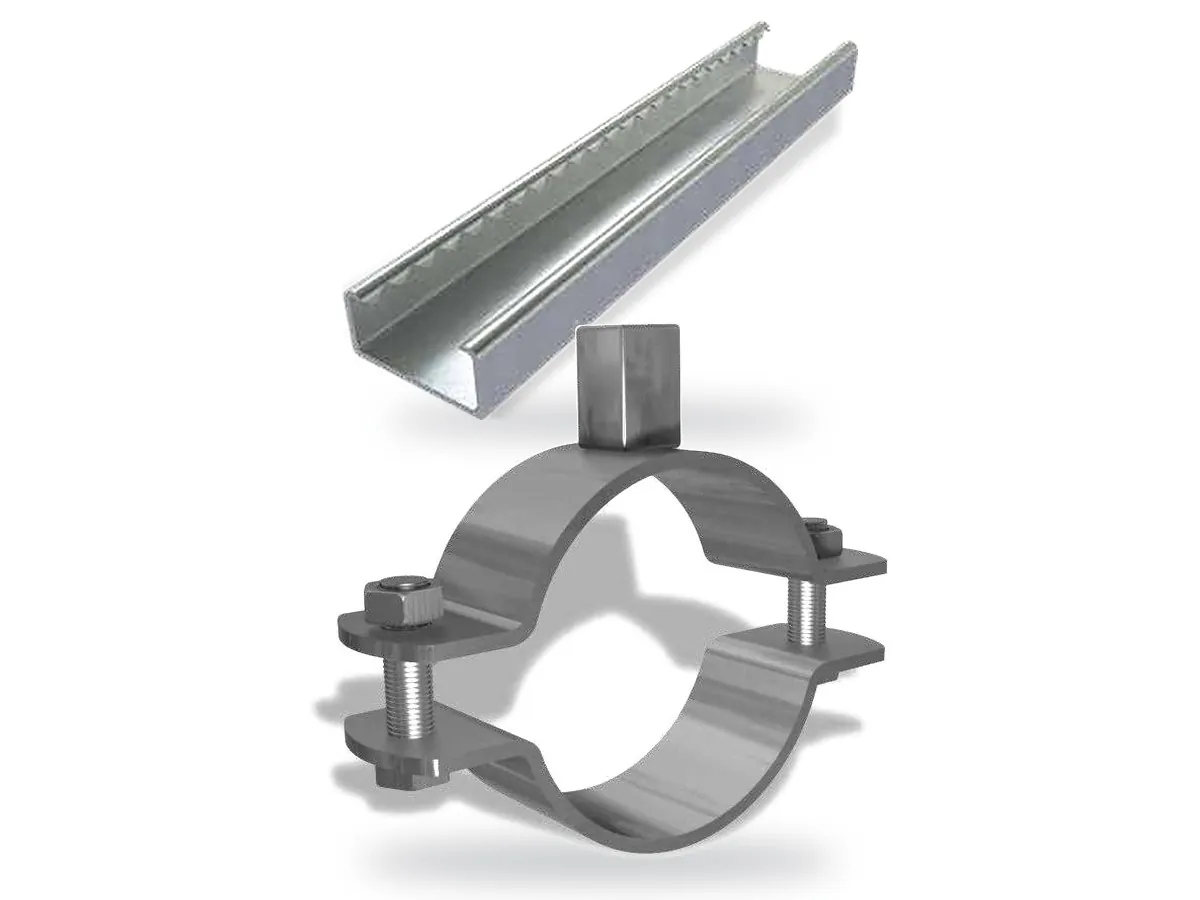

Pipe clamps fix to C-channel, which is mounted on the structure or built into a frame. The channel comes plain, slotted, back-to-back or toothed, and cantilever arm brackets carry pipe runs off a wall or a C-channel frame, with an allowable load published for each arm length.

The channel is supplied pre-galvanised or hot-dip galvanised, and the clamps, threaded rod and anchors from the same range complete each support.

Full technical catalogue Dimensions, load tables, accessories and standards · PDF, 4.3 MB
Download PDF
Product range

Every product in this range

6 products from catalogue KAVITY-10 — material, finish, sizes and codes as published. Each card links to its catalogue page.

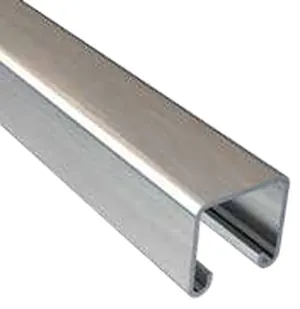

Plain C-channel (PT type)
Support system

Plain C-channel (PT type)

Metal framing channel cold formed from low-carbon steel to BS 6946:1988, continuous slot for attachments at any point.

Material
Low-carbon steel, BS 6946:1988
Finish
Pre-galvanised (ASTM A653M G90/G60) or HDG after fabrication (ASTM A123 / EN ISO 1461)
Sizes
41 × 21, 41 × 41, 50 × 25 mm; t 1.5 / 2.0 / 2.5 mm
Length
3000 mm standard
Catalogue p. 30

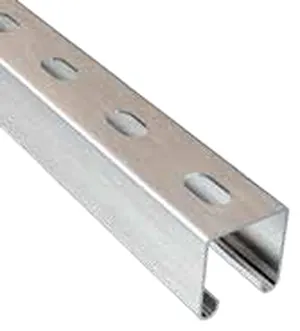

Slotted C-channel (ST type)
Support system

Slotted C-channel (ST type)

Metal framing channel with punched slots in the back, cold formed from low-carbon steel to BS 6946:1988.

Material
Low-carbon steel, BS 6946:1988
Finish
Pre-galvanised or hot-dip galvanised
Sizes
41 × 21, 41 × 41, 50 × 25 mm; t 1.5 / 2.0 / 2.5 mm
Length
3000 mm standard
Catalogue p. 30

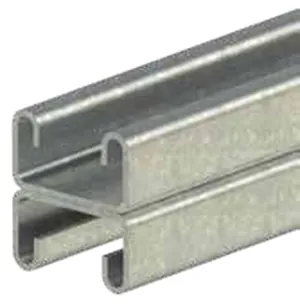

Back-to-back C-channel (B2B type)
Support system

Back-to-back C-channel (B2B type)

Two framing channels joined back to back for higher section strength.

Material
Low-carbon steel, BS 6946:1988
Finish
Pre-galvanised or hot-dip galvanised
Sizes
H 42, 50, 82 mm; t 1.5 / 2.0 / 2.5 mm
Length
3000 mm standard
Catalogue p. 30

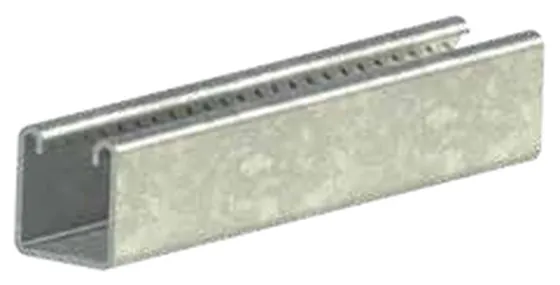

Toothed C-channel
Support system

Toothed C-channel

Framing channel with toothed lips for positive grip of channel nuts; add "T" after the part number.

Material
Low-carbon steel, BS 6946:1988
Finish
Pre-galvanised or hot-dip galvanised
Sizes
As plain/slotted channel ranges
Codes
e.g. CCH-220T
Catalogue p. 30

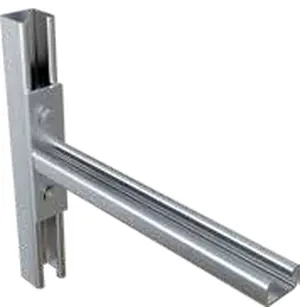

Cantilever arm bracket
Support system

Cantilever arm bracket

Channel cantilever arm with welded base plate for wall or C-channel frame mounting.

Channel
CCH421 41 × 21 × 2.5 mm
Arm length
150–1000 mm
Allowable load F1
1.10 kN at 150 mm to 0.20 kN at 1000 mm (CCH421)
Base plate
100 × 50 × 8 mm / 140 × 50 × 10 mm
Code
SCA
Catalogue p. 31

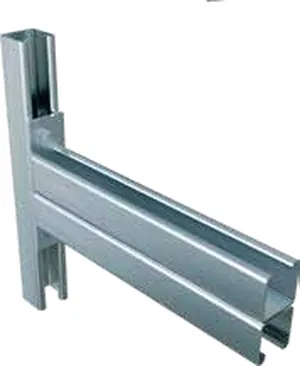

Cantilever arm bracket, back to back
Support system

Cantilever arm bracket, back to back

Back-to-back channel cantilever arm with base plate, for heavier loads.

Channel
CCH422 41 × 21 × 2.5 B2B; CCH442 41 × 41 × 2.5 B2B
Arm length
150–1000 mm
Allowable load F1
up to 2.50 kN (CCH422) / 7.00 kN (CCH442) at 150 mm
Base plate
140 × 50 × 10 mm / 180 × 60 × 12 mm
Code
SCA
Catalogue p. 32
