حوامل الكوابل الشبكية (كيبل تري شبكي)
Wire basket trays for data, control and lighter power cabling — cut and formed on site without special tooling.

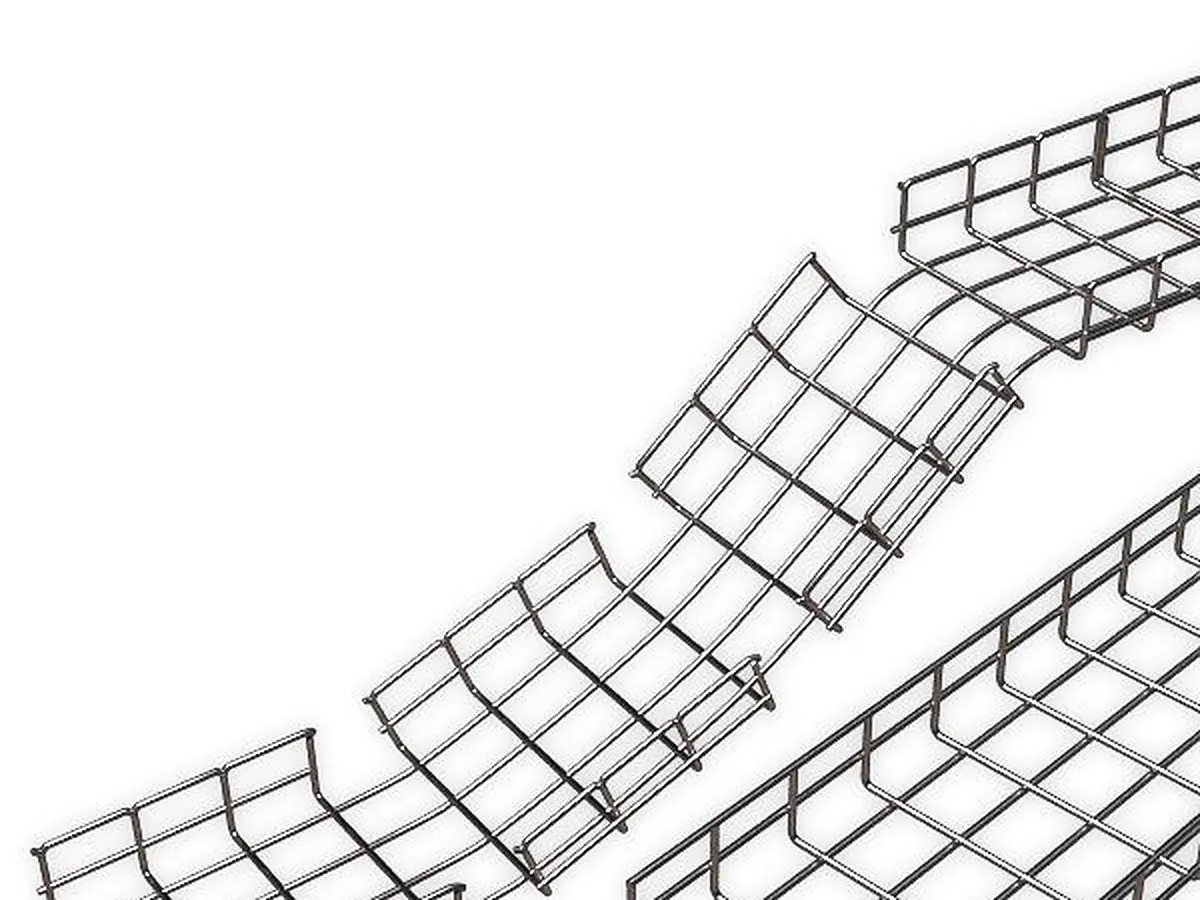

A basket tray is formed from welded wire, so a bend, a tee or a reducer is made on site with a bolt cutter and a coupler instead of a factory fitting. On a data floor with hundreds of direction changes, that removes most of the fitting schedule.
The open mesh also lets air circulate around the cables and stops dust building up, and lets an inspector see the whole installation without lifting a cover.

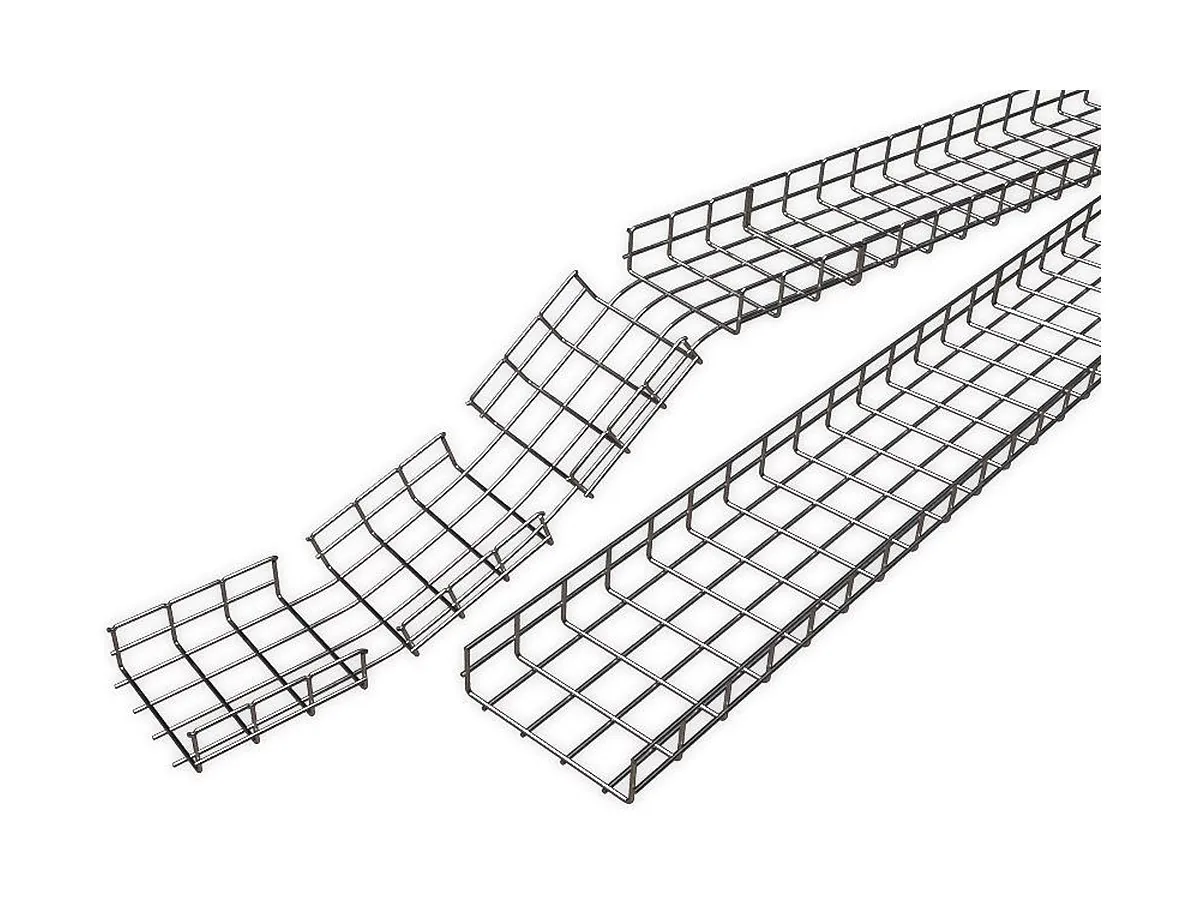

Welded 4 mm steel-wire mesh lengths in four side heights. Bends and tees are cut and formed on site — no factory fitting needed.
View →

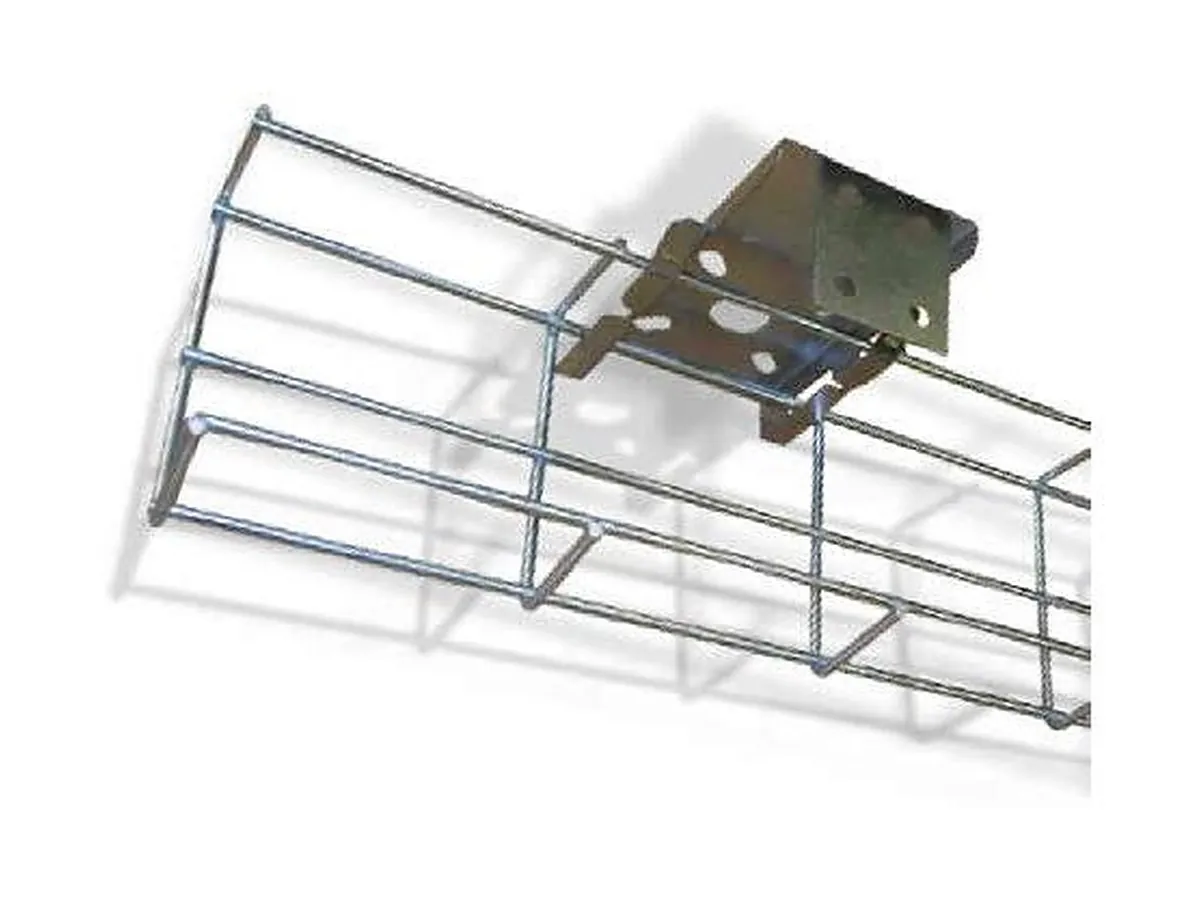

Couplers, wall brackets, trapeze framing, drop-outs and the fixing hardware that turns cut mesh into a finished run.
View →Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
