Cable tray accessories

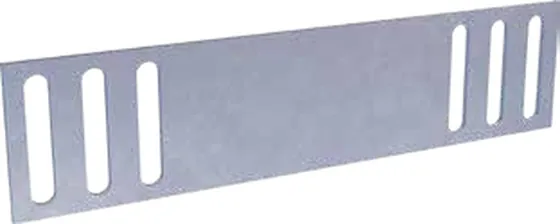

Straight connector
Slotted splice plate for joining two straight cable tray lengths.
- Side height
- 50 / 75 / 100 mm
- Thickness
- 2 mm
- Codes
- 1000
ملحقات حوامل الكوابل (كيبل تري)
Covers, couplers, earth continuity straps and end caps that complete the installation.
Covers protect cables from falling debris and direct sun on exposed runs, and earth continuity straps keep the tray electrically continuous across every joint. Each accessory is made to fit the tray profile it is ordered with.
Every tray is backed by a published load table giving the safe working load at each span. The range covers horizontal and vertical bends, tees, crosses, reducers, covers, couplers, earth continuity straps and the full support range.
26 products from catalogue KAVITY-04 — material, finish, sizes and codes as published. Each card links to its catalogue page.
Slotted splice plate for joining two straight cable tray lengths.

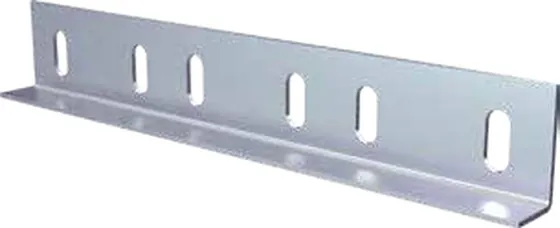

L-section slotted connector for joining cable tray sections.

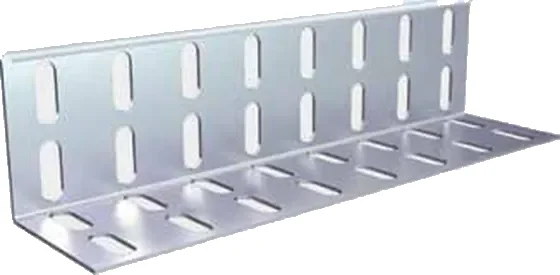

Slotted coupler that wraps over the tray side and base to join sections.

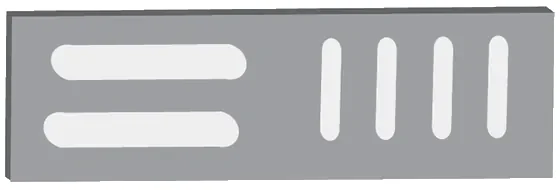

Slotted splice plate allowing longitudinal movement between cable tray sections.

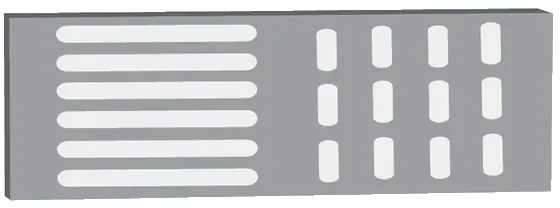

Expansion joint plate with slotted holes to accommodate thermal movement in tray runs.

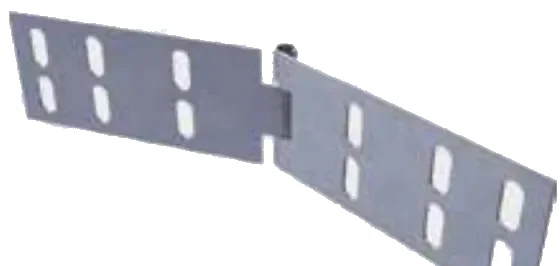

Hinged connector allowing an adjustable horizontal angle between tray sections.

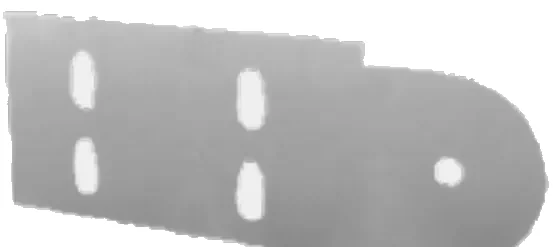

Pivoting connector allowing an adjustable vertical angle between tray sections.

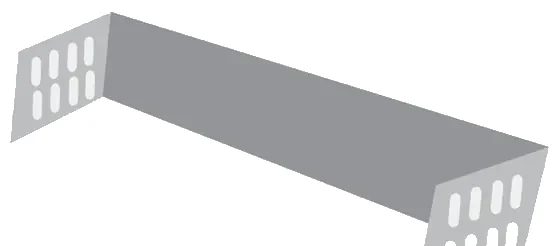

Plate closing the open end of a cable tray run.

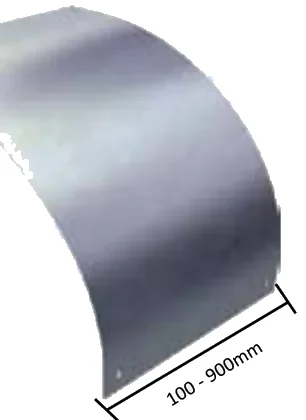

Curved plate at the tray edge protecting cables as they leave the tray.

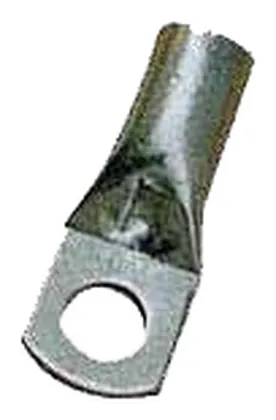

Copper tubular cable lug, crimped onto the conductor, for earthing and bonding connections.

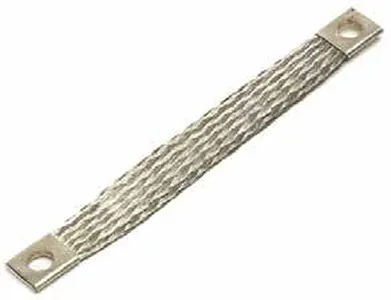

Tinned copper flexible braid crimped with terminals, used as a bonding jumper across tray joints.

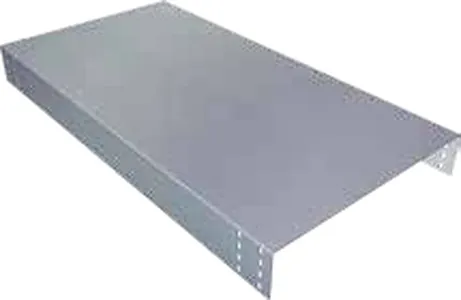

Solid cable tray cover protecting cables from falling objects, debris, UV and contaminants.

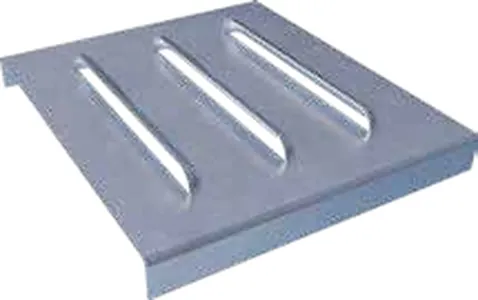

Ventilated cable tray cover with louvres, for protection with heat dissipation.

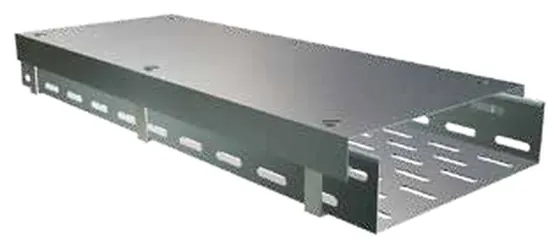

Cable tray cover secured to the tray with locking clamps.

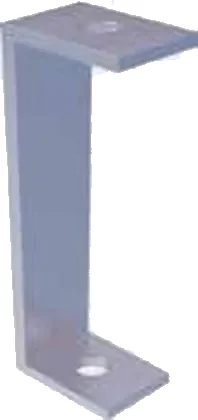

Clamps that hold the cover onto the cable tray sides.

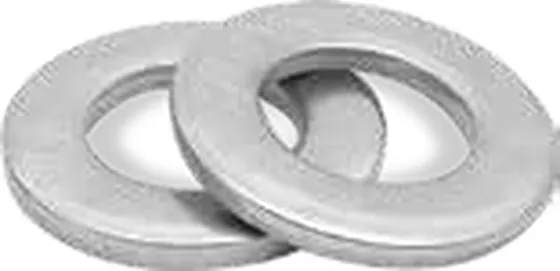

Flat washer to DIN 125 / ASTM F436.

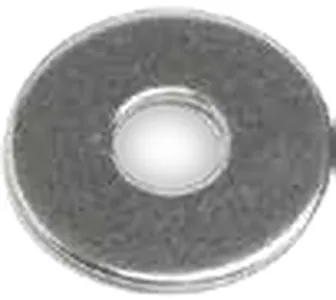

Large-diameter round washer to DIN 440 or DIN 9021.
Square plate washer for use with 41/21 and 41/41 series channels.
Fully threaded rod grade 4.6 to DIN 975 / ASTM A36 for suspending supports.

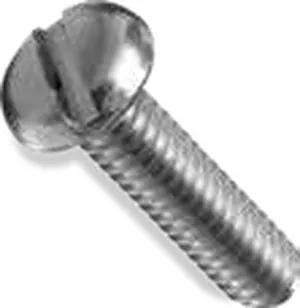

Round head machine screw to DIN 7985.

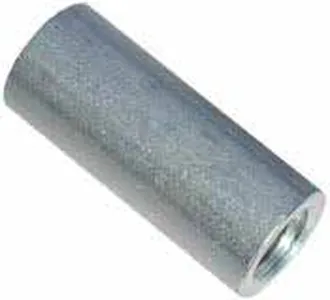

Round coupler sleeve for joining threaded rods.

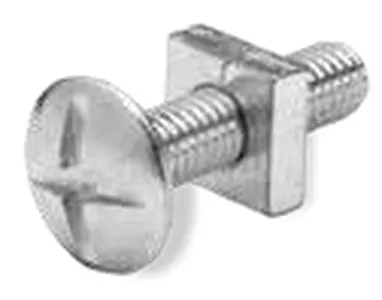

Roofing bolt in low carbon or carbon steel, grades 4.6, 4.8 and 8.8.
Carriage bolt with square neck below the head to DIN 603.

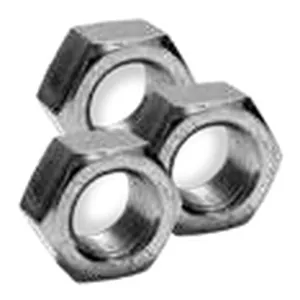

Hexagon nut to DIN 934 / ISO 4032 / ASTM A563.

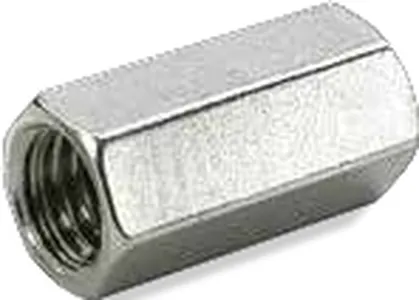

Hexagonal coupler with view hole for joining threaded rods, grade 8.8.
Hex head bolt to DIN 933 / EN 24017 / ASTM A307, A449, supplied without nut.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
