Valves & controls

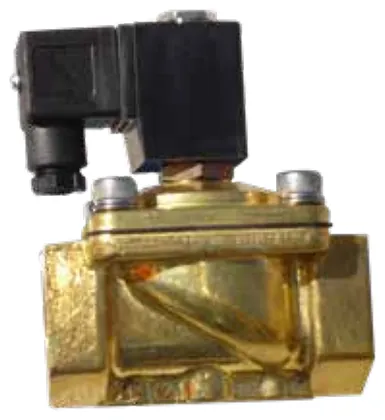

Solenoid valve
Electrically operated valve controlling the flow of water to the sanitising unit.
- Quantity
- One unit per chute
- Location
- Behind access door
التعقيم وكبس النفايات

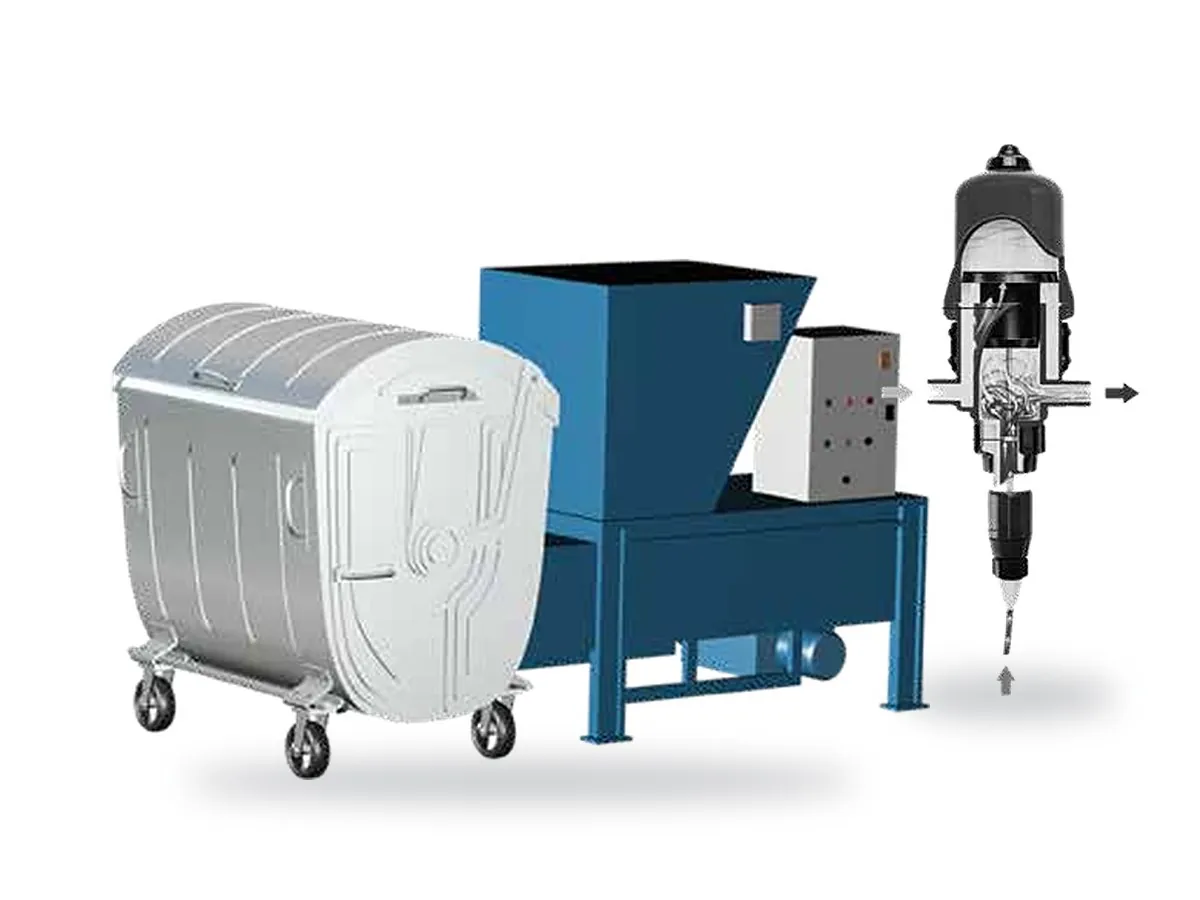

Wash-down and disinfection units at the head of the shaft, and the compactor or containers at the base.
A chute that is never cleaned becomes an odour and hygiene problem within weeks. A sanitising unit at the head of the shaft washes and disinfects the chute walls, and at the base a compactor reduces how often the bin room needs attention.
KAVITY supplies the complete package: chute sections, intake doors with fire ratings, discharge and diverter units, sanitising systems, and the compaction or bin arrangement at the base.
11 products from catalogue KAVITY-12 — material, finish, sizes and codes as published. Each card links to its catalogue page.
Electrically operated valve controlling the flow of water to the sanitising unit.
Dosing unit fitted above the top entry section that mixes disinfectant or soap into the flushing water to reduce odours and germs.
Motor-driven cylindrical housing with replaceable stiff nylon brushes lowered and raised through the full chute height, with water flushing.

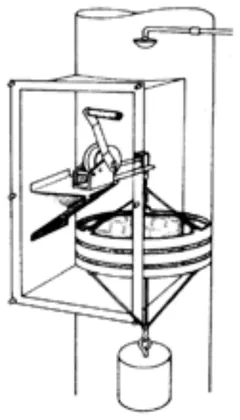

Winch-operated brush housing with ratchet and gate-valve controlled flushing spray, recommended for buildings up to 5 storeys.

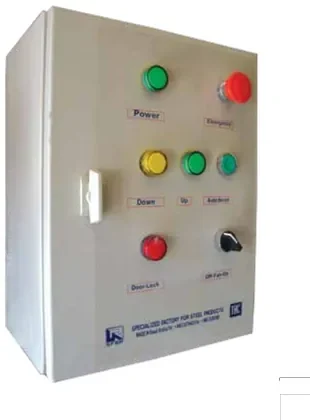

Panel controlling the chute automation, cleaning system and electromagnetic door locks, with an emergency isolation button.

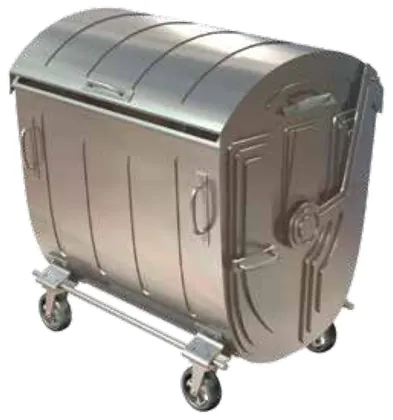

Wheeled 1.1 m³ refuse container with vaulted domed lid, spring-assisted opening and frontal central locking.

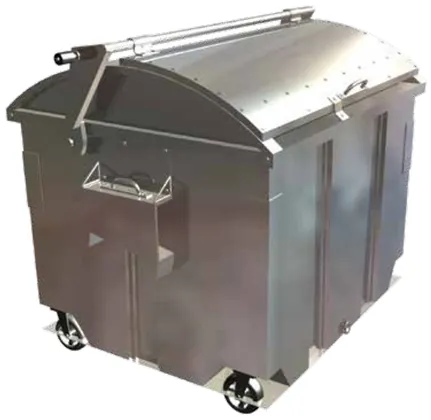

Box-profile framed 2.5 m³ refuse container with galvanised sliding lid and 200 mm swivel wheels.
Box-profile framed 4.5 m³ refuse container with galvanised sliding lid, fixed front and swivel rear wheels.

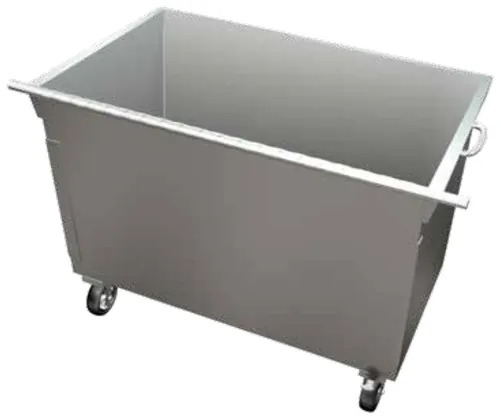

Open 1.53 m³ steel refuse container made to be lifted by the refuse compactor.

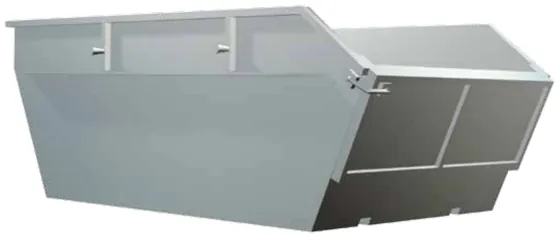

Tipping skip container for refuse collection by truck, offered in five sizes.

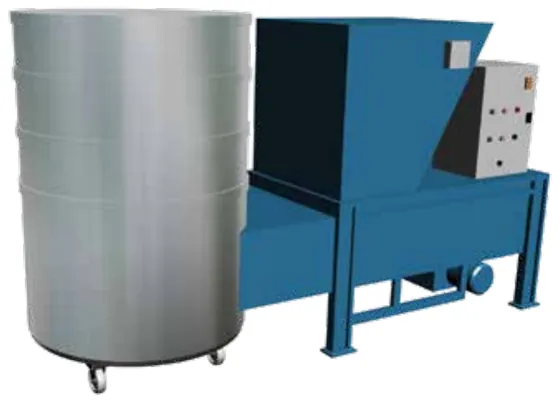

Automatic hydraulic compactor packing chute refuse into sacks or containers, compacting it to 15–20% of original volume.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
