C-channel strut systems

Channels

قنوات C للتثبيت (سي تشانل)

Plain and slotted strut channel in 41 and 50 mm series, in standard thicknesses of 1.5, 2.0 and 2.5 mm, in single and back-to-back sections.

Request a technical proposal Download catalogue PDF · 8.9 MB

Channels

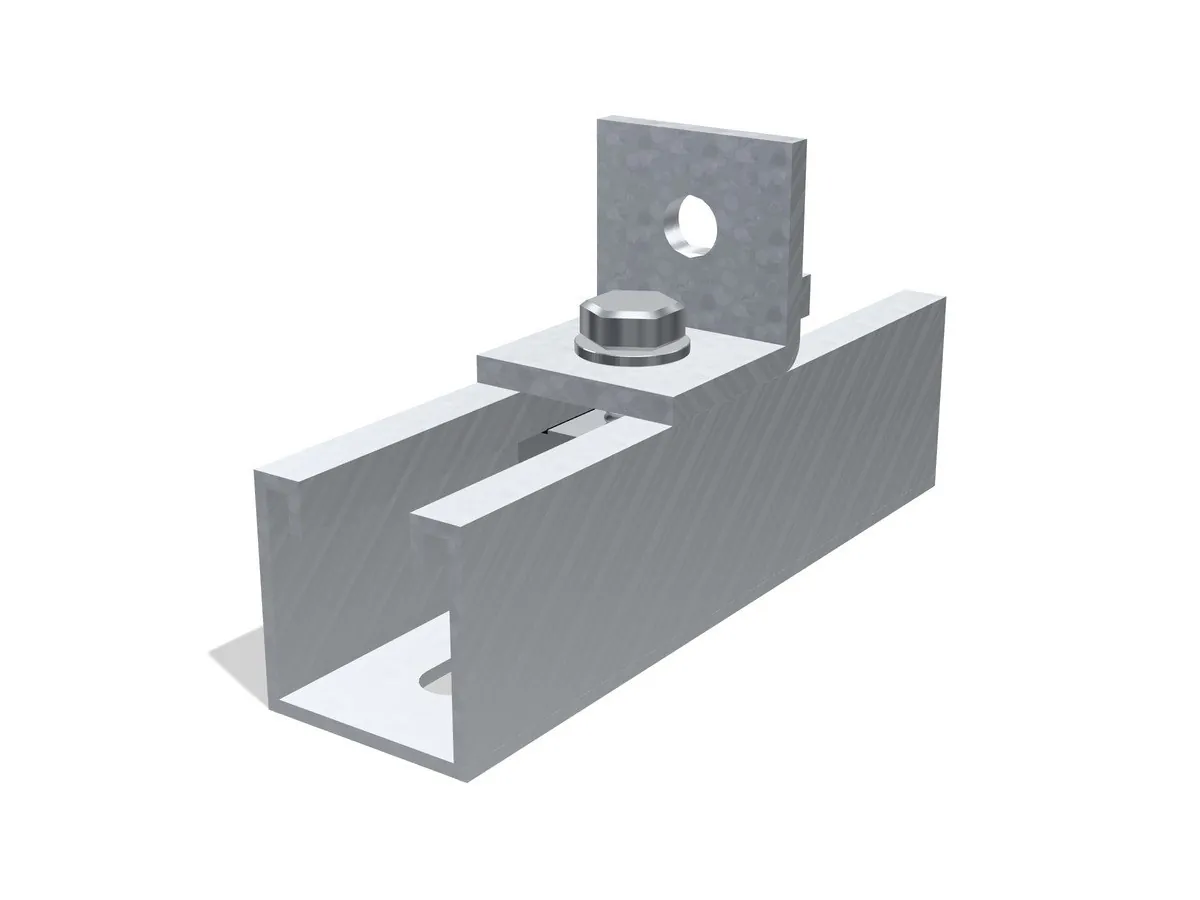

Choose the profile from the span and the load: the shallow 41 × 21 for light work close to the surface, 41 × 41 as the general standard, and back-to-back sections (41 × 82, 50 × 50) for longer spans and heavier equipment. Every channel takes a channel nut anywhere along its open slot; slotted-back channel can also be bolted through its back, while plain channel keeps the full section strength.

The full accessory range covers plain and angle fittings, gusseted brackets, base plates, threaded rod connectors, pipe clamps and beam clamps, all dimensionally matched to the channel profile.

Full technical catalogue Dimensions, load tables, accessories and standards · PDF, 8.9 MB

Download PDF

Product range

Every product in this range

8 products from catalogue KAVITY-07, KAVITY-09 — material, finish, sizes and codes as published. Each card links to its catalogue page.

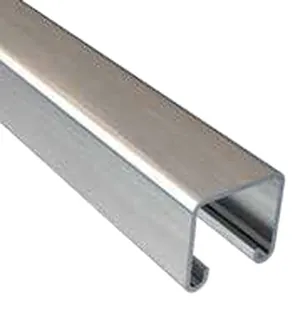

Metal framing channel

Framing channel

Metal framing channel

Cold-formed strut channel to BS 6946 with a continuous slot, with load tables for single-beam spans to DIN 18800.

Material: Low carbon steel S235 JRG2
Finish: Pre-galvanised (G90/G60) or hot-dip galvanised
Sizes: 41 × 21, 41 × 41, 50 × 25 mm; back-to-back · L 3000 mm
Thickness: 1.5 / 2.0 / 2.5 mm
Load: Load tables for CCH-240/241 and CCH-242
Codes: CCH

Catalogue p. 47

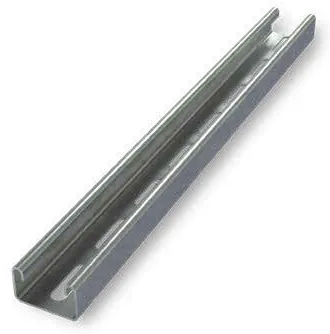

C-channel 41 × 21 mm

Channels

C-channel 41 × 21 mm

Cold-formed metal framing channel with a continuous slot for attachments at any point; plain (PT) or slotted (ST) back.

Material: Low-carbon steel, BS 6946:1988
Finish: Pre-galvanised (ASTM A653M G90/G60) or HDG after fabrication (ASTM A123 / EN ISO 1461)
Sizes: 41 × 21 mm; t 1.5 / 2.0 / 2.5 mm (ordering range 1.2–2.5 mm)
Length: 3000 mm standard (6000 mm available)
Codes: CCH-220/221, CCH-320/321, CCH-420/421

Catalogue p. 20

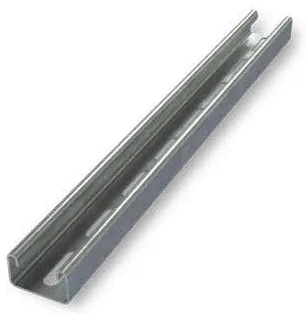

C-channel 41 × 41 mm

Channels

C-channel 41 × 41 mm

Cold-formed metal framing channel with a continuous slot for attachments at any point; plain (PT) or slotted (ST) back.

Material: Low-carbon steel, BS 6946:1988
Finish: Pre-galvanised (ASTM A653M G90/G60) or HDG after fabrication (ASTM A123 / EN ISO 1461)
Sizes: 41 × 41 mm; t 1.5 / 2.0 / 2.5 mm (ordering range 1.2–2.7 mm)
Length: 3000 mm standard (6000 mm available)
Codes: CCH-240/241, CCH-340/341, CCH-440/441

Catalogue p. 20

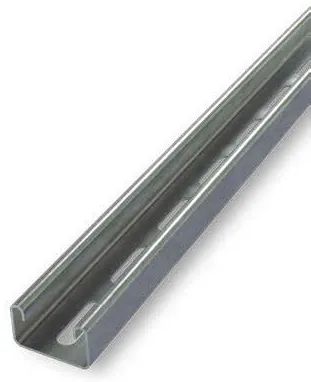

C-channel 50 × 25 mm

Channels

C-channel 50 × 25 mm

Cold-formed metal framing channel with a continuous slot for attachments at any point; plain (PT) or slotted (ST) back.

Material: Low-carbon steel, BS 6946:1988
Finish: Pre-galvanised (ASTM A653M G90/G60) or HDG after fabrication (ASTM A123 / EN ISO 1461)
Sizes: W 50 × H 25 mm; t 1.5 / 2.0 / 2.5 mm
Length: 3000 mm standard (6000 mm available)
Codes: CCH-260/261, CCH-360/361, CCH-460/461

Catalogue p. 20

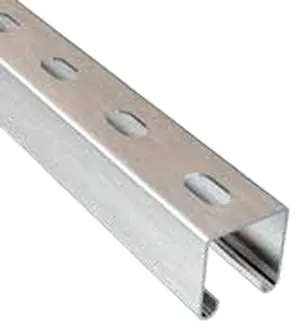

C-channel 50 × 20 mm

Channels

C-channel 50 × 20 mm

Slotted or plain 50 × 20 mm framing channel listed in the ordering codes, galvanised, HDG or black steel.

Sizes: 50 × 20 mm; t 1.2–2.5 mm
Finish: Galvanised, hot-dip galvanised or black steel
Length: 3000 / 6000 mm (3300, 4800 mm in 2.5 mm)
Code prefix: SCUC_F_…

Catalogue p. 74

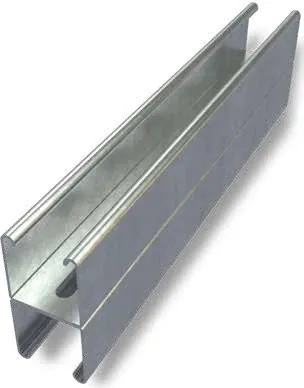

Back-to-back channel 41 × 42 mm

Back-to-back channels

Back-to-back channel 41 × 42 mm

Two framing channels joined back to back (B2B) for higher section strength; plain or slotted.

Material: Low-carbon steel, BS 6946:1988
Finish: Pre-galvanised (ASTM A653M G90/G60) or HDG after fabrication (ASTM A123 / EN ISO 1461)
Sizes: 2 × 41 × 21 mm (H 42 mm); t 1.5 / 2.0 / 2.5 mm
Codes: CCH-222, CCH-322, CCH-422

Catalogue p. 20

Back-to-back channel 41 × 82 mm

Back-to-back channels

Back-to-back channel 41 × 82 mm

Two framing channels joined back to back (B2B) for higher section strength; plain or slotted.

Material: Low-carbon steel, BS 6946:1988
Finish: Pre-galvanised (ASTM A653M G90/G60) or HDG after fabrication (ASTM A123 / EN ISO 1461)
Sizes: 2 × 41 × 41 mm (H 82 mm); t 1.5 / 2.0 / 2.5 mm
Length: 3000 mm standard; others to order
Codes: CCH-242, CCH-342, CCH-442

Catalogue p. 20

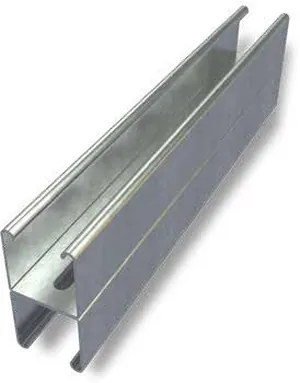

Back-to-back channel 50 × 50 mm

Back-to-back channels

Back-to-back channel 50 × 50 mm

Two framing channels joined back to back (B2B) for higher section strength; plain or slotted.

Material: Low-carbon steel, BS 6946:1988
Finish: Pre-galvanised (ASTM A653M G90/G60) or HDG after fabrication (ASTM A123 / EN ISO 1461)
Sizes: 2 × 50 × 25 mm (H 50 mm); t 1.5 / 2.0 / 2.5 mm
Codes: CCH-262, CCH-362, CCH-462

Catalogue p. 20

More in this range

C-channel strut systems

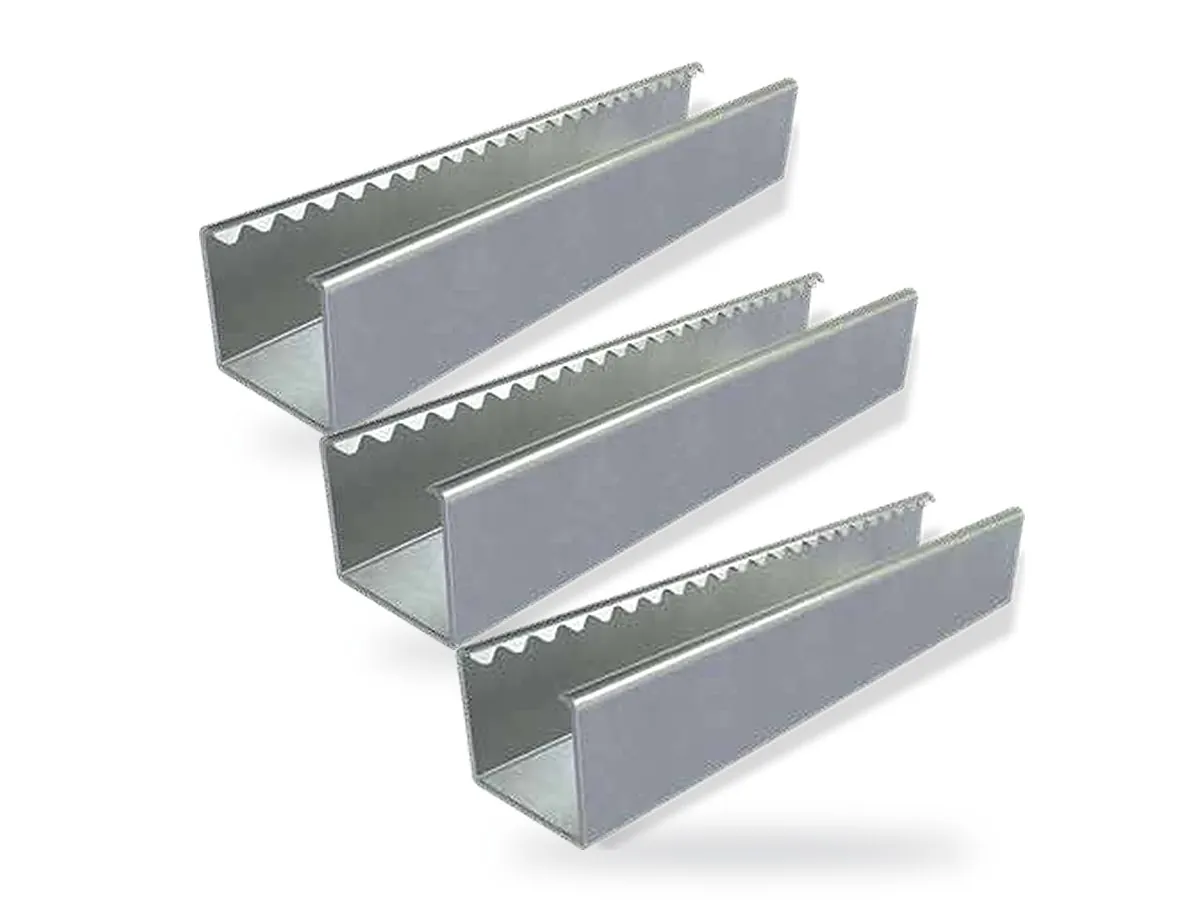

Toothed channels

C-channel strut systemsToothed channels

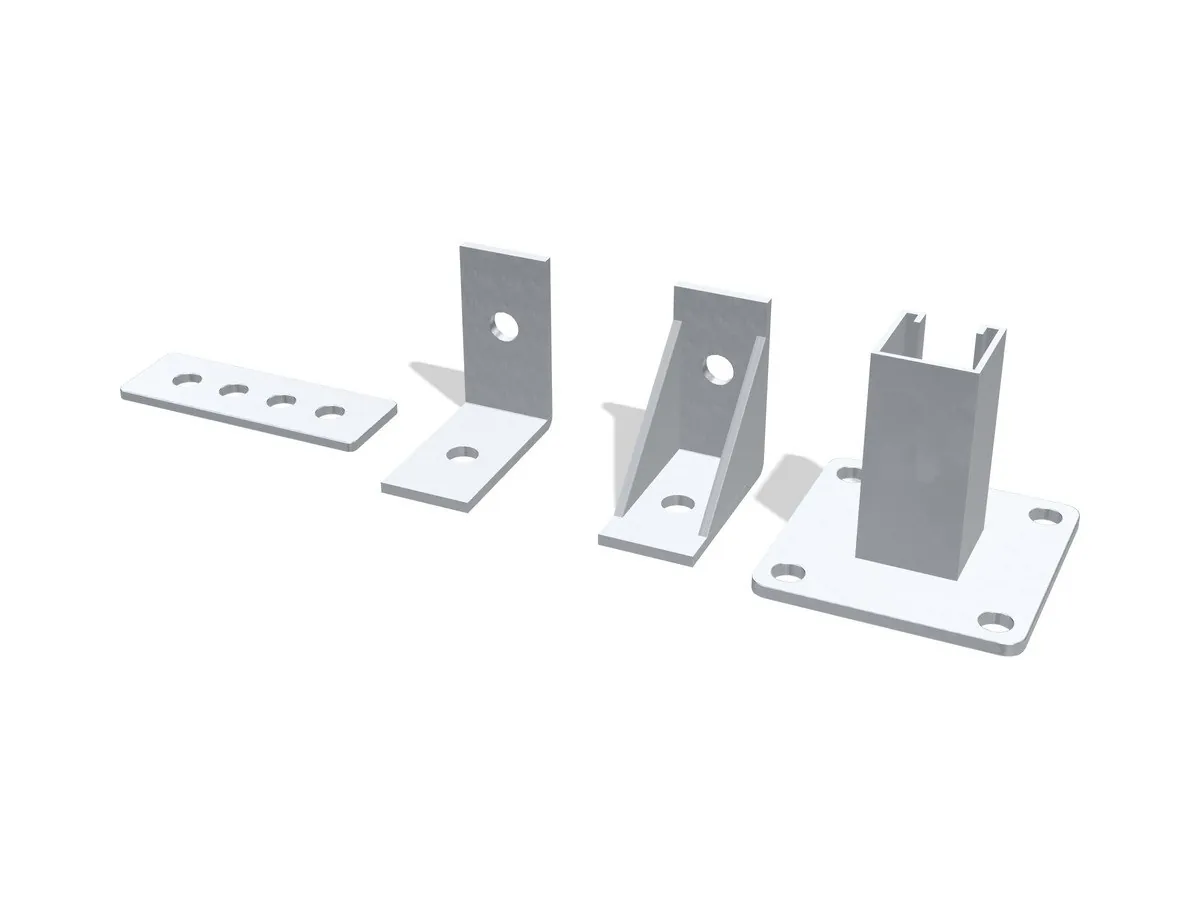

Fittings

C-channel strut systemsFittings

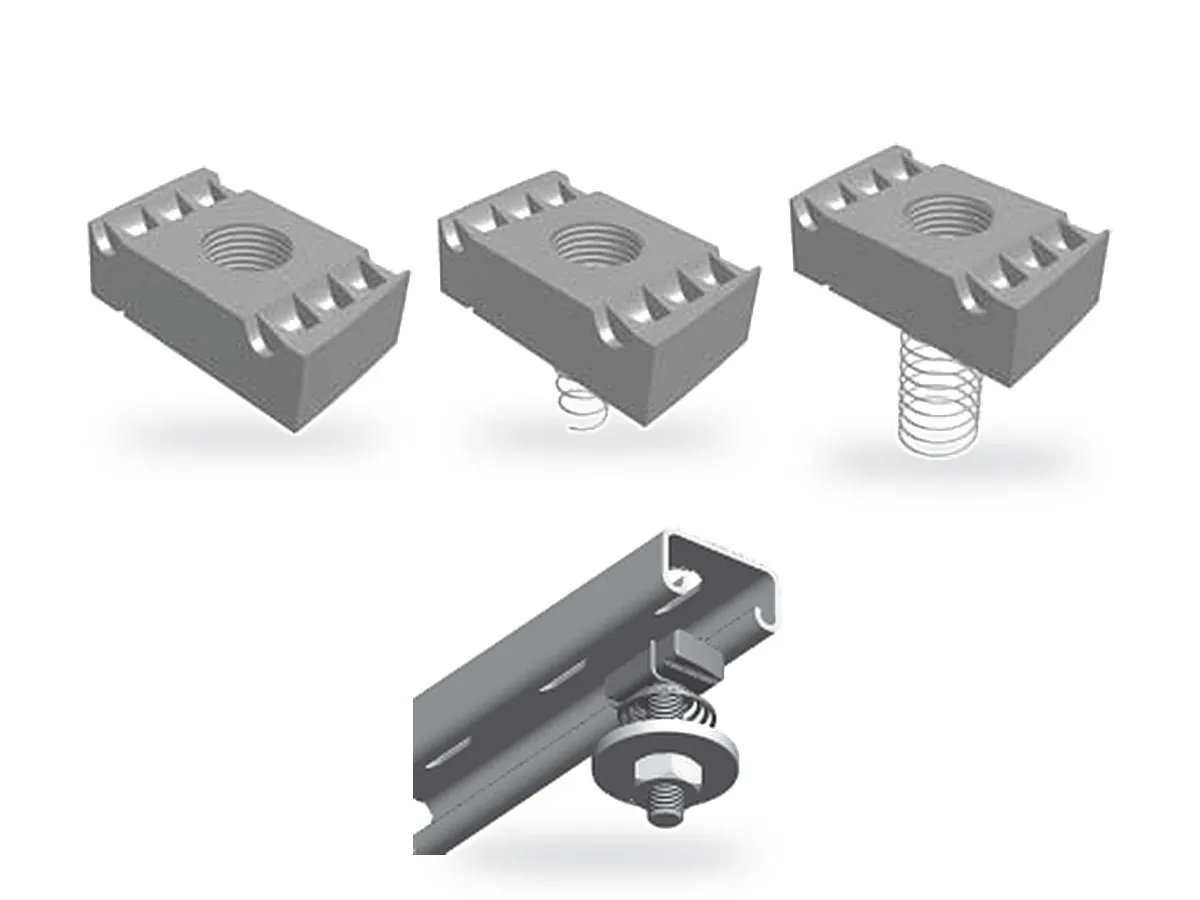

Accessories & anchors
