الجريتنج والدرابزين من FRP
Moulded and pultruded grating, stair treads and handrail for walkways over process plant and water treatment.
FRP grating does not rust and needs no painting, which makes it the practical choice over process tanks, in water treatment plants and on coastal structures. Panels can be cut on site with diamond or carbide grit-edged blades.
FRP is also non-conductive and non-magnetic, which removes the earthing and induction concerns of a metal system, and its light weight eases handling and cutting on site and reduces the size of the platform structure.
7 products from catalogue KAVITY-08 — material, finish, sizes and codes as published. Each card links to its catalogue page.

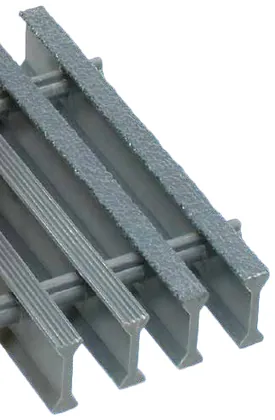

Pultruded FRP load-bar grating for corrosion-resistant platforms and walkways, with integral UV protection.

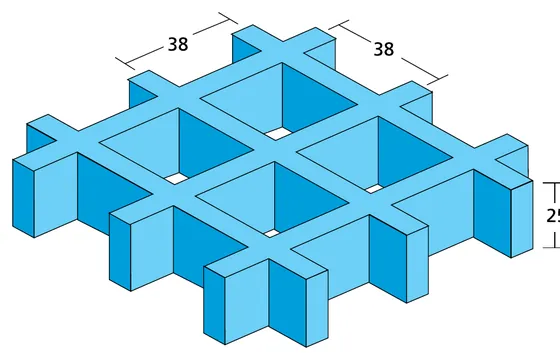

Moulded FRP square-mesh grating with bearing bars in both directions.
Grating clip secured by drilling through the support, gripping two adjacent grating bars.

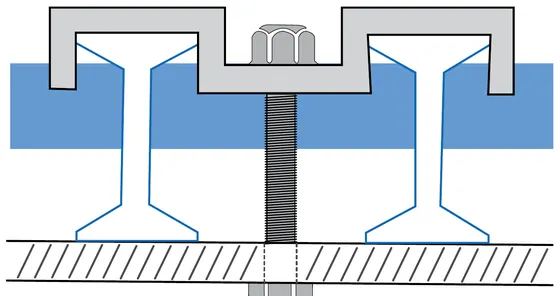

Grating clip attaching grating to structural supports without drilling; recommended for offshore projects.

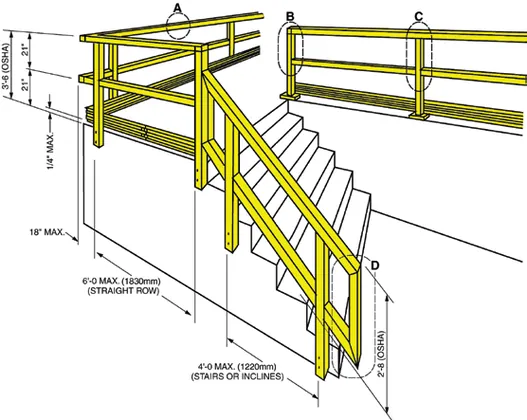

FRP handrail of 50.8 mm square pultruded posts and rails with epoxy-bonded connectors.

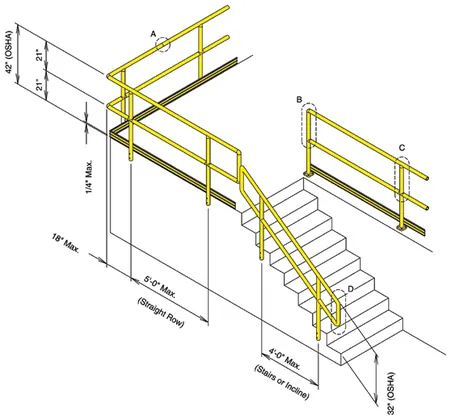

Round FRP handrail with 90° moulded corners and internally bonded connectors; meets OSHA with 1524 mm post spacing.

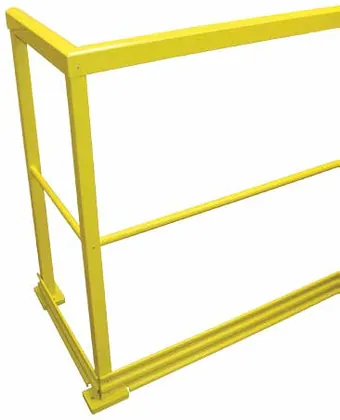

Economical riveted FRP railing with channel top rail for long straight runs on platforms and walkways.
Send the project drawings, specification and load requirements. Our engineers size the system and prepare a technical proposal, with the calculation and shop drawings needed for approval.
